Seagate Exos X 5U84
Perfect for data archiving, high-density & high-throughput, capacity planning


Seagate Products
Seagate Exos X Series Systems
Seagate Exos X 5U84 Advanced Storage Array
#X-5U84
Get a Quote!

Click here to jump to more pricing!

Exos EnterpriseOverview:

Exos X Series — RAID & Data Protection

The Seagate Exos X 5U84 is a petabyte-scale, rack-mounted block storage system including self-healing technology, data protection options, and advanced software features.

A value-rich solution for applications that require massive capacity, performance, low latency, and dual-controller availability. Advanced features include self-healing storage, data protection options, and a full enterprise software stack offering virtual pools, thin provisioning, SSD caching, encryption, auto-tiering, snapshots, and asynchronous replication.

Product Highlights

  • Self-healing storage technology, ADAPT, and ADR
  • Deliver unfettered data access with dual redundant controllers capable of achieving superior sequential read and write performance
  • Expand a data center seamlessly with flexible SSD, HDD, and hybrid configuration options
  • Efficiently manage hot and cold data with real-time data tiering
  • Save space and maximize capacity by stacking 4 enclosures for 336 drives of data storage

Capacity

Capacity
Limitless data growth

Scalability

Scalability
Industry-first economics

Security

Security
Keep your data safe


Seagate Storage Upgrade Promotion

Features:

Super High Capacity. Small Footprint.

Save space with up to 84 HDD or SSD devices and dual controllers all in a 5U rackmount enclosure. Connect four enclosures for a total of 336 drives.

A value-rich solution for applications that require massive capacity, performance, low latency, and always-on resiliency. Perfect mass storage for conventional data centers and cloud infrastructure.

Enterprise-Grade Platform

Ideal for storage administrators seeking massive storage capability, innovative durability, leading performance, and full featured capability along with integration and management simplicity.

A rich set of enterprise features and data protection including self-healing storage with improved Advanced Distributed Autonomic Protection Technology (ADAPT) and Autonomous Drive Regeneration (ADR), auto-tiering, snapshots, replication, and Seagate’s new ASIC-based VelosCT™ controller architecture yields extremely high-performance and high reliability.

Maximize high density potential in a 5U form factor.

For customers who need a compact solution with an ability to expand.

The ideal solution for storage administrators who want modern high-end features and the ability to massively scale with drive capacity and stackability as storage needs grow.

Reliable and Self-healing. Exos X features self-healing storage technology, Advanced Distributed Autonomic Protection Technology (ADAPT) and Autonomous Drive Regeneration (ADR). Field-proven design with five nines (99.999%) availability. Seagate ADAPT erasure code data protection software dramatically reduces array rebuild overhead. Unique Seagate ADR reduces human intervention and e-waste by automatically renewing hard drives "in situ" and on the fly.

Built for speed and resilience. Up to 2 times the performance of the previous generation with redundant active-active controllers powered by the ASIC-based VelosCT controller architecture. Streamline your overhead, with improved throughput, management, and recovery.

Easy to Set Up, Maintain, and Expand. All system components—the enclosure, the controller, the firmware, and the drives—are developed and optimized by our engineers to work together seamlessly. The modular architecture makes components interchangeable between systems, and upgrades are simple due to common FRUs, PCMs, controllers, and software.

Maximum Capacity and Consistent High Performance. Exos X 5U84 supports up to 84 drives in a single 5U enclosure with high availability and superior sequential read and write throughput. Easily expand to accommodate data proliferation by connecting up to four 5U84 enclosures together for a total of 336 drive slots.

Build In Security at the Foundation of the Data Life Cycle. Protect the most valuable business assets with Seagate Secure™ cybersecurity features and intelligent firmware —such as SFTP, SED support, and administrator access controls—that provide builtin security measures for reliable and safe file access, transfer, and management.

Improve Hardware and Administrative Efficiency and Reduce Cost. Meet stringent worldwide requirements for recycling and environmental friendliness with a nimble system that minimizes environmental impact and maximizes cost savings through high performance.

Compare:


Compare Models
Exos X 2U12 Exos X 2U24 Exos X 5U84 Exos X CORVAULT
Max Capacity Per Enclosure 12 drives 24 drives 84 drives 106 drives
Expansion 10 Enclosures Max (Includes Master)
120 Drives Max
10 Enclosures Max (Includes Master)
240 Drives Max
4 Enclosures (Includes Master)
336 drives max
1 Enclosures
106 drives max
Form Factor 2U rack 2U rack 5U rack 4U rack
Total EBOD Chassis Up to 4 Up to 12 Up to 6 Up to 4
TB Per Chassis 1.9 PB
(* using 18 TB 3.5" SAS Drive)
216 TB
(* using 18TB 3.5” SAS Drives)
57.6 TB
(* using 2.4TB 2.5” SAS Drives)
1.5 PB
(* using 18 TB 3.5" SAS Drives)

Specifications:


Exos X 5U84 Specifications
Controller Performance Up to 12GB/s read throughput, 10GB/s write throughput,
725K IOPS (Random Read)
Advanced Software Features Auto-Tiering, Snapshots, Asynchronous Replication
Base Array Software Features Virtual pools, Thin provisioning, ADAPT, SSD read cache, Encryption
High-Availability Features Redundant hot-swap controllers, Redundant hot-swap drives, fans, power, Dual power cords, Hot standby spare, Automatic failover, Multi-path support
Device (Drive) Support SAS HDD, NL-SAS HDD, SAS SSD (2.5 or 3.5 Form Factors)
Data Protection Seagate ADAPT and RAID levels supported: 0, 1, 5, 6, 10
Self Healing Technology Autonomous Drive Regeneration (ADR)
System Maximum Expansion 2U12 Arrays, Up to 12 drives per enclosure, 10 enclosures maximum including the master, totaling 120 Drives
2U24 Arrays, Up to 24 drives per enclosure, 10 enclosures maximum including the master, totaling 240 Drives
5U84 Arrays, Up to 84 drives per enclosure, 4 enclosures maximum including the master, totaling 336 Drives
Physical 5U: Height: 222.3mm / 8.75 in | Width: 444.5mm / 17.5 in | Depth: 981mm / 38.63 in | Width w/ear mounts:
483mm / 19.01 in | RBOD weight: 82kg / 180 lb | RBOD weight (with drives): 135kg / 298 lb | EBOD weight: 80kg
/ 175 lb | EBOD weight (with drives): 130kg / 287 lb
Hosts
External Ports 4 per Controller, 8 per System
Fibre Channel Models Host speed: 32/16 Gb/s Fibre Channel, Interface type: SFP+/SFP28
iSCSI Models Host speed: 10Gb/s, 25Gb/s iSCSI, Interface type: SFP+/SFP28
Ethernet 10GBASE-T (auto-negotiation to 1Gb)
SAS Models Host speed: 12Gb/s, 6Gb/s SAS, Interface type: HD Mini-SAS
System Configuration
System Memory 48GB per system
Volumes per System 1024
Cache Mirrored cache, Supercapacitor cache backup, Cache backup to flash – nonvolatile
Management
Interface Types 10/100/1000 Ethernet, Micro USB
Protocols Supported SNMP, SSL, SSH, SMTP, HTTP(S), Redfish
Management Consoles Web GUI, CLI
Management Software Seagate Systems storage management console, Remote diagnostics, Nondisruptive updates, Volume expansion
Power Requirements—AC Input
Input Power Requirements 200VAC - 240VAC, 50Hz-60Hz
Max Power Output per PSU 2200W
Environmental Requirements
Operating/Nonoperating Altitude ASHRAE A2, 5°C to 35°C (41°F to 95°F), derate 1°C/300m above 900m, 20°C/hr max rate of change / –40°C to 70°C (–40°F to 158°F)
Operating/Nonoperating Humidity –12°C DP and 8% RH to 21°C DP and 80% RH, max DP 21°C / 5% to 100% noncondensing
Operating/Nonoperating Shock 3 Gs, 11ms, half sine pulses / 15 Gs, 7ms, half sine pulses
Operating/Nonoperating Vibration 0.18 Gs rms 6Hz to 500Hz random / 0.5 (Z-axis) and 0.25 (X&Y-axis) Gs rms 6Hz to 200Hz random
Standards/Approvals

Views:

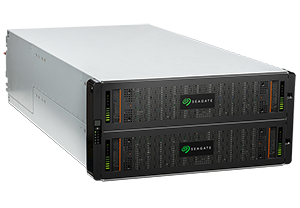

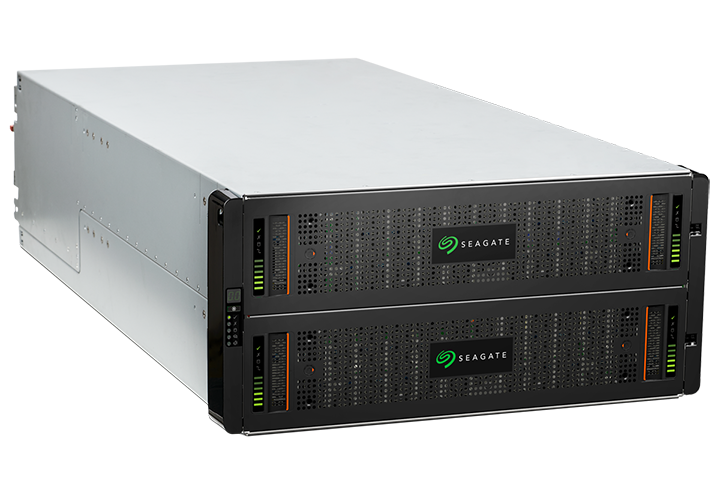

Left Angle View

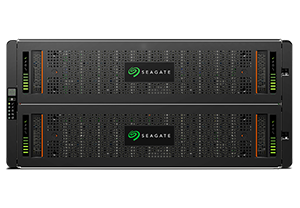

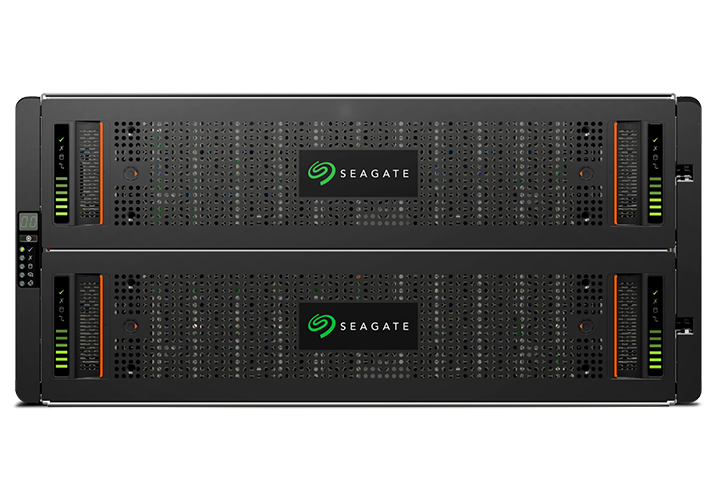

Front View

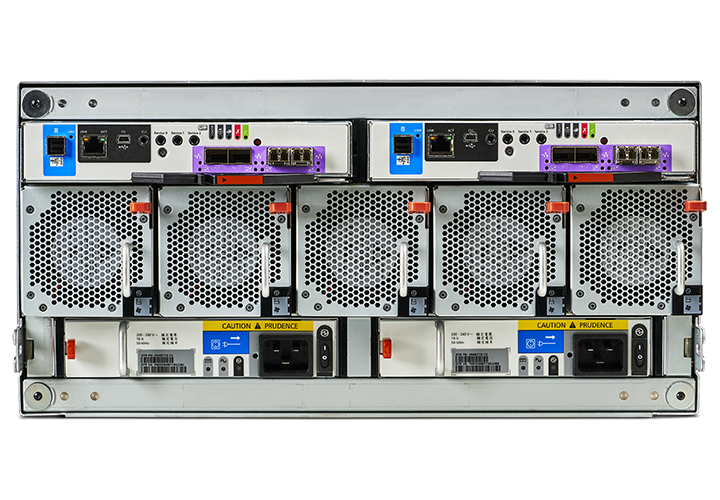

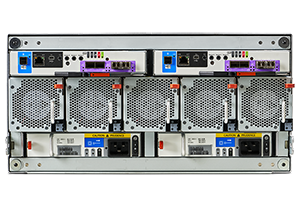

Rear View

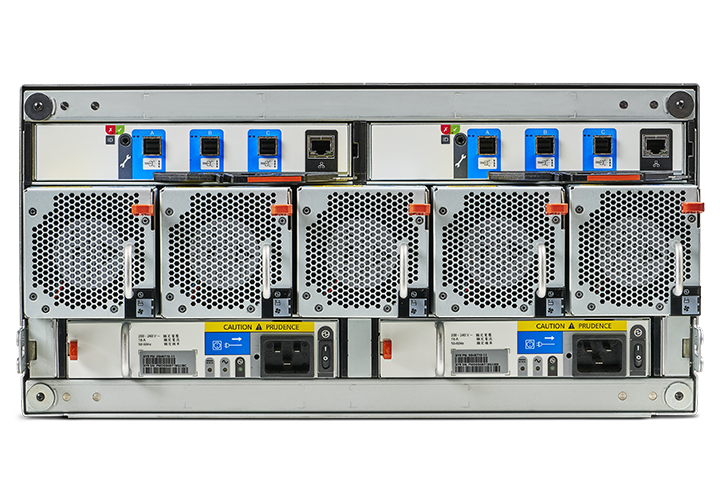

Rear View
Right Angle View

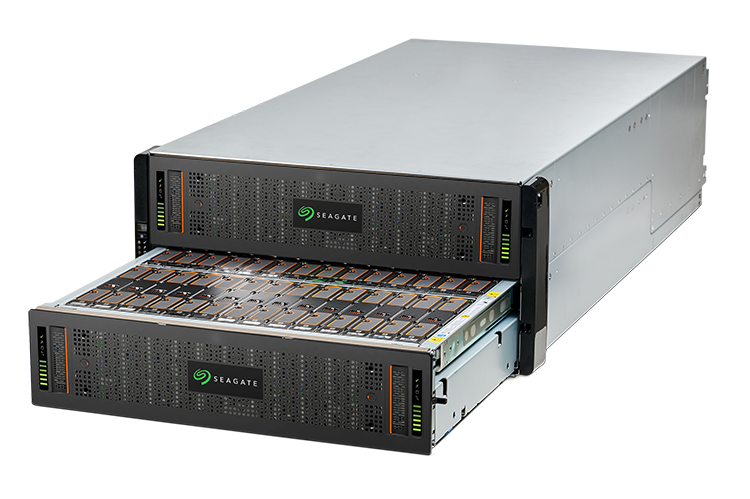

Pull-Out View

Documentation:

Download the Seagate Exos X 5U84 Datasheet (.PDF)
