Seagate Exos E 2U12
Perfect for SMB data centers, entry-level data storage, and high-density storage system


Seagate Exos E 2U12

Seagate Products
Seagate Exos E Series Systems
Seagate Exos E 2U12 12 High Capacity Drive Bays Storage
Contact us for Pricing!

Click here to jump to more pricing!

Exos EnterpriseOverview:

Exos E Series — JBOD Building Blocks

Seagate Exos E 2U12 is the datasphere’s ideal platform for efficient growth, performance, and high capacity at an affordable price.

Modular Systems for Capacity

From reliability to intelligence, the Exos systems provide unfettered access to data and industry-first economics for lower TCO and highest capacity.

JBODS

High-capacity building blocks that easily grow with enterprises of any size.

Product Highlights

  • Save space with up to 12 drives in a 2U rackmount enclosure
  • Simplify overall product portfolio with this versatile storage building block
  • Safeguard data with intelligent fault diagnosis, resolution capabilities, persistent error logging, and monitoring
  • Deliver data fast using Seagate hard drives, SSDs, or a combination of both
  • Ensure data is available with N+1 PCMs, I/O modules, and dual data paths to all drives
  • Maximum of 28.8GB/s in a dual controller configuration

Capacity

Capacity
Limitless data growth

Scalability

Scalability
Industry-first economics

Security

Security
Keep your data safe


Features:

Transfer Data Fast With a 12Gb/s SAS Interface

Get data to applications when and where it's needed with up to 12Gb/s speed, yielding an effective maximum throughput of 14.4GB/s in a single I/O module or 28.8 GB/s in a dual controller configuration. With expansion capability up to 144 SSDs and hard drives, expand to 2.016 PB 1 with no sacrifice in performance.

Deliver Versatile Architecture Built to Grow

This flexible enclosure includes support and capabilities to manage cables, universal ports, configuration controls, and standardized zoning. As a key building block of our modular systems—which make all critical components interchangeable regardless of size or budget—this enclosure’s modularity makes it easy to set up, maintain, and expand via interchangeable FRUs and hot-swappable components.

Ensure Applications Have Access to Critical Data

Safeguard your data with fault diagnosis, resolution capabilities, persistent error logging, and monitoring while ensuring maximum availability while harnessing high-availability features such as dual PCMs and I/O modules, as well as dual data paths to all drives.

Reduce Cost and Resources With Energy-Efficient Features

This enclosure is suited for both high-capacity and transaction-dependent environments that demand tighter Service Level Agreement (SLA) requirements and need faster response times for optimal data availability. It meets stringent worldwide requirements for recycling and environmental friendliness, and can help you minimize environmental impact and recognize cost savings through high performance while reducing power consumption with 80 PLUS Gold certified adaptive cooling technology.

Build In Security at the Foundation of the Data Life Cycle

Protect your most valuable business assets with guaranteed compatible Seagate Secure™ SSDs and hard drives.

Specifications:


Exos E 2U12 Specifications
Controller Dual I/O modules per enclosure
Host/Expansion Interface Three universal ×4 12Gb/s mini-SAS HD connectors (SFF-8644) per I/O module
Management/Status Reporting CLI via RS232 and 100Base-T port SES via SAS SFF-8644 ports
Maximum System Configuration Dual host-connected enclosure with a maximum expanded configuration of 12 enclosures for a total of 144 drives
Device Support Dual port 12Gb/s and 6Gb/s SAS drives
Max Drives per Enclosure 12 (for a full list of supported drives, please contact your account or sales manager)
Hot-Swappable Components Drives, power cooling modules (PCM), and SBB I/O modules
Physical Height: 88.9mm / 3.5 in (2 EIA units)
Width: 483mm / 19 in (IEC rack compliant)
Depth: 630mm / 24.8 in
Weight: 26kg / 52.7 lb (with drives)
Power Requirements—AC Input
Input Power Requirements 100V-240V AC 60Hz/50Hz
Environmental Requirements
Operating/Nonoperating Altitude 0m to 3000m (0 ft to 10,000 ft) / –300m to 12,192m (–1000 ft to 40,000 ft)
Temperature Range 5°C to 40°C (35°C max above 2000m)
Humidity 20% to 80% noncondensing
Operating/Nonoperating Shock 5 Gs, 10ms half sine / 30 Gs 10ms half sine
Operating/Nonoperating Vibration 0.21 Gs rms / 1.04 Gs rms
Standards/Approvals
Safety Certifications UL 60950-1 (USA and Canada)
EN 60950-1 (European Union)
IEC 60950-1 (CB certification)
Emissions (EMC) FCC CFR 47 Part 15 Subpart B Class A (United States)
ICES/NMB-003 Class A (Canada)
EN 55032 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3 (Europe)
AS/NZS CISPR 32 Class A (Australia/New Zealand)
VCCI Class A (Japan)
KN 32 Class A/KN 35 (S. Korea)
CNS 13438 Class A (Taiwan)
Standard Marks/Approvals North America (FCC, UL, cUL, ICES/NMB-003 Class A), Europe (CE), China (CCC – PSU only), Taiwan (BSMI), Korea (KC), Japan (VCCI), Australia/New Zealand (RCM – formerly C-tick)

Views:

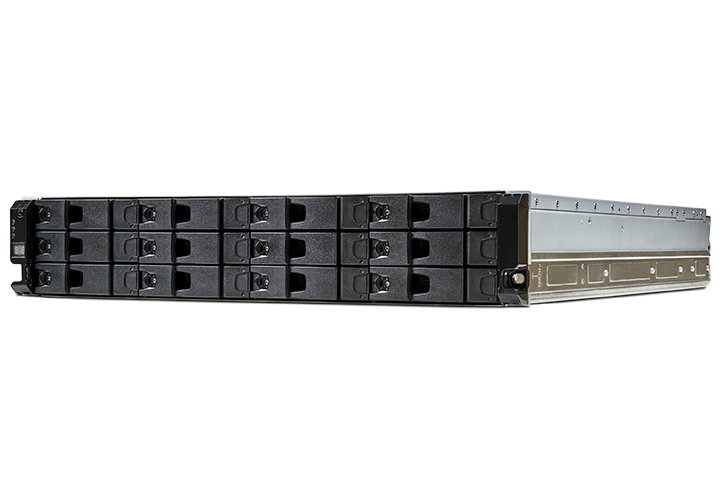

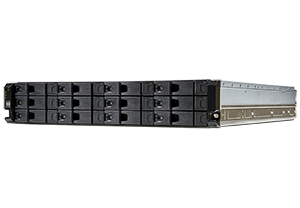

Angle View

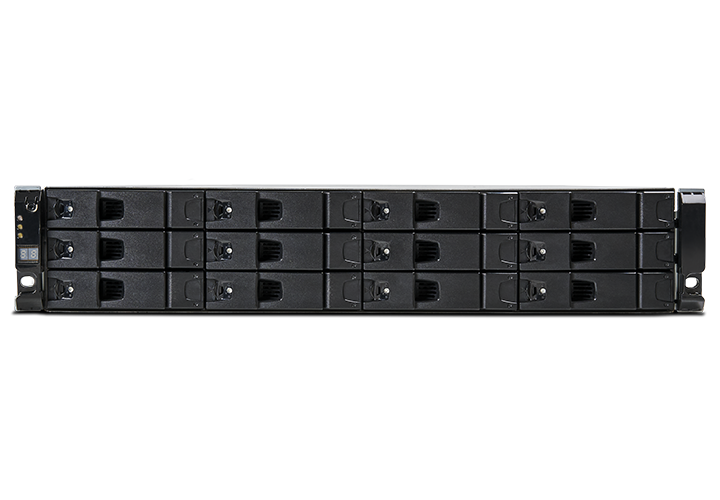

Front View

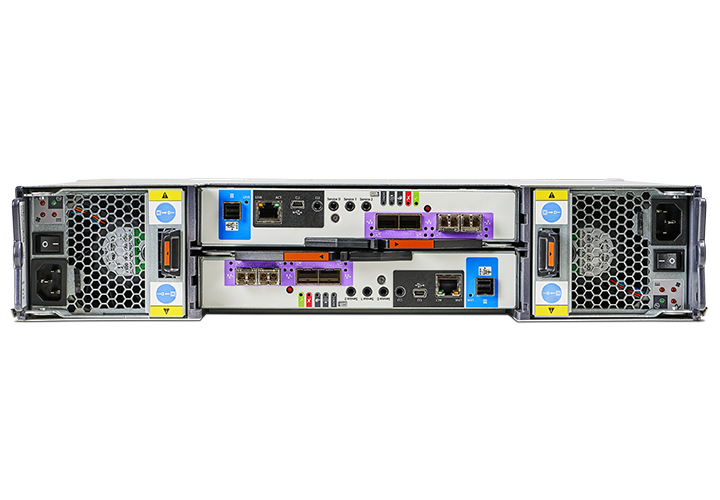

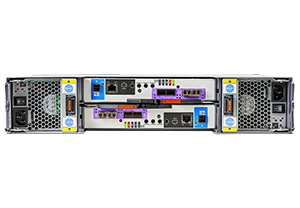

Rear View

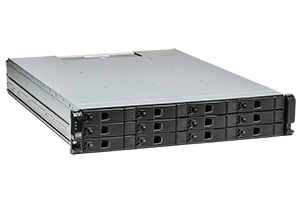

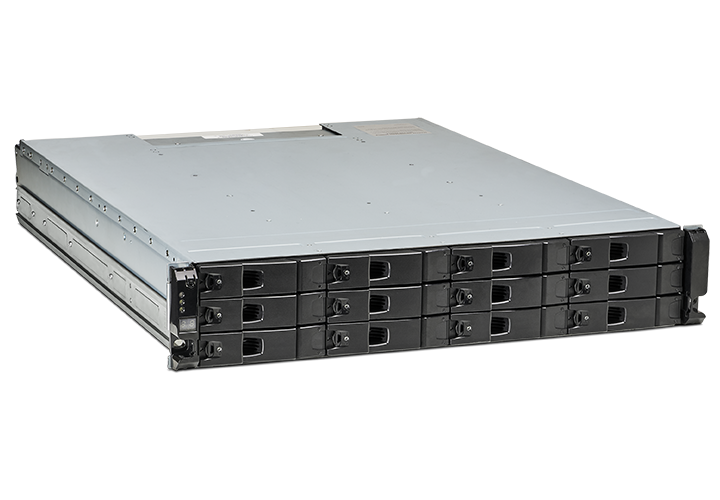

Right Angle View

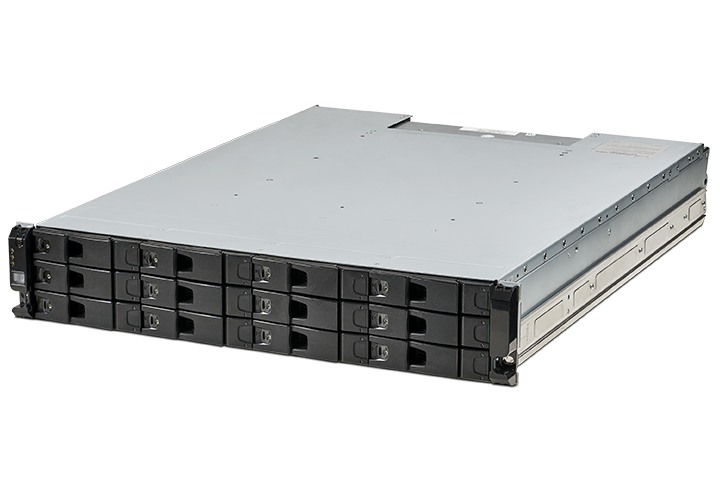

Left Angle View

Documentation:

Download the Seagate Exos E 2U12 Datasheet (.PDF)
