Seagate Exos X Enterprise

The Best Internal Drives for Data Centers

The most scalable drives in the datasphere, Exos X series hard drives integrate the latest technology in support of a secure and reliable cloud data center.

Exos Enterprise The Seagate Exos™ X class of enterprise hard drives are designed for hyperscale efficiency and ever-evolving security mandates. You can rely on Exos X for maximum capacity/density, scalability, power efficiency and security. Plus Exos X utilizes the latest nanoscale technology to further deliver foundational capabilities for the rapidly-evolving cloud and large-scale data center architectures.

Innovative technology advancements like helium, PowerBalance™, PowerChoice™, Seagate Secure™ and Seagate RAID Rebuild provide improved TCO.

Best-Fit Applications:

Hyperscale applications/cloud data centers
Massive scale-out data centers
High-capacity density RAID storage
Mainstream enterprise external storage arrays
Distributed file systems, including Hadoop and Ceph
Enterprise backup and restore— D2D, virtual tape
Centralized surveillance

Exos X16

Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate X class, the Exos X16 enterprise hard drives are the highest-capacity hard drives in the fleet.

Stores up to 12.8PB in a 42U rack with helium technology
Leading sustained data rate 261MB/s
Random write of 440 IOP/s
Reduced complexity with FastFormat™
Reduced TCO with low weight of 670g and 0.31 W/TB
550TB/yr—10× the workload rating of desktop drives
Seagate Secure encryption technology

SATA Hard Drives

Exos X16 3.5-Inch 512e/4Kn SATA Enterprise Hard Drive

Built especially for:

512 Emulation/4K Native Format
14TB, 16TB Capacity
SATA 6Gb/s Interface
Up to 261MB/s SDR
2.5M MTBF

SAS Hard Drives

Exos X16 3.5-Inch 512e/4Kn SAS Enterprise Hard Drive

Built especially for:

512 Emulation/4K Native Format
14TB, 16TB Capacity
12Gb/s SAS Interface
Up to 261MB/s SDR
2.5M MTBF

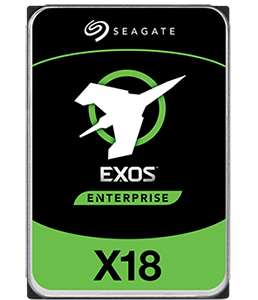

Exos X18

Designed for maximum storage capacity and the highest rack-space efficiency, delivering up to 18TB capacity.

SATA Hard Drives

Exos X18 3.5-Inch 512e/4Kn SATA Enterprise Hard Drive

Built especially for:

512 Emulation/4K Native Format
18TB, 16TB Capacity
SATA 6Gb/s Interface
Up to 270MB/s SDR
2.5M MTBF

SAS Hard Drives

Exos X18 3.5-Inch 512e/4Kn SAS Enterprise Hard Drive

Built especially for:

512 Emulation/4K Native Format
18TB, 16TB Capacity
12Gb/s SAS Interface
Up to 270 MB/s SDR
2.5M MTBF

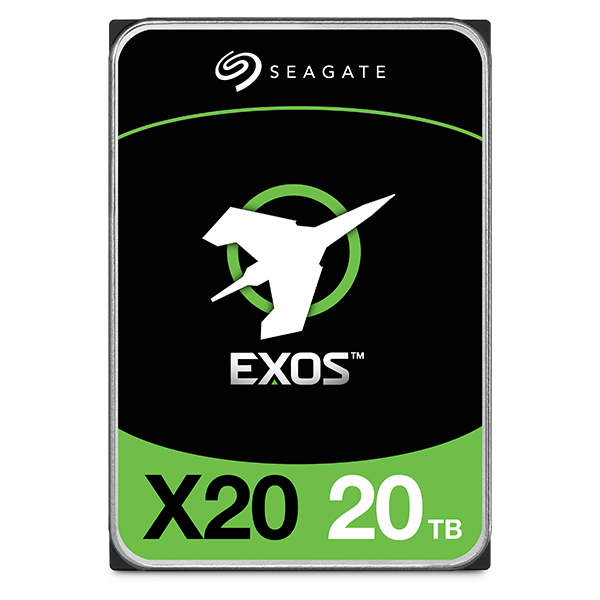

Exos X20

Designed for maximum storage capacity and the highest rack-space efficiency, delivering up to 20TB capacity.

SATA Hard Drives

Exos X20 3.5-Inch 512e/4Kn SATA Enterprise Hard Drive

Built especially for:

512 Emulation/4K Native Format
20TB, 18TB Capacity
SATA 6Gb/s Interface
Up to 285MB/s SDR
2.5M MTBF

SAS Hard Drives

Exos X20 3.5-Inch 512e/4Kn SAS Enterprise Hard Drive

Built especially for:

512 Emulation/4K Native Format
20TB, 18TB Capacity
12Gb/s SAS Interface
Up to 285 MB/s SDR
2.5M MTBF

Exos 2X14

The first 14TB hyperscale hard drive featuring multi-actuator technology for up to 2X faster IOPS, reduced latency, and lowered TCO.

SAS Hard Drives

Exos 2X14 3.5-Inch SAS Enterprise Hard Drive

Built especially for:

512 Emulation/4K Native Format and Hyperscale (4Kn)
14TB Capacity
12Gb/s SAS Interface
Up to 524 MB/s SDR
2.5M MTBF

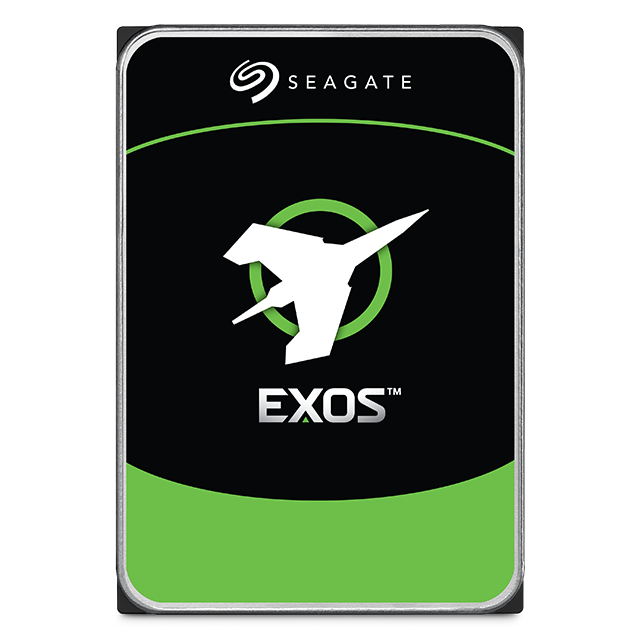

Exos Mozaic 3+

Achieve maximum storage capacity with the industry’s most efficient, sustainable, and proven hard drive.

Exos Mozaic 3+

Where mass capacity, unprecedented areal density, and proven performance combine for storage that’s hyper-efficient and more sustainable than ever.

Capacity:

32TB (SMR)
24TB
30TB
