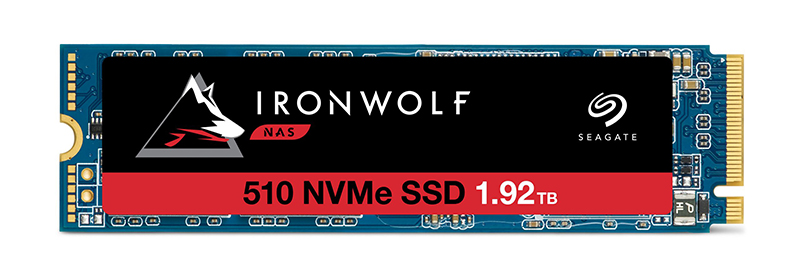

Seagate IronWolf 510 M.2 Solid State Drives (SSD)
Perfect for creative pro, SOHO, and SME NAS

Overview:

Built for NAS, Seagate® IronWolf® 510 delivers high-endurance performance and caching speeds of up to 3150MB/s—or 3GB/s for NVMe-compatible systems. With capacities of up to 1.92TB, it’s the go-to solution for creative pros and businesses needing 24×7 multiuser storage.

• Tap into the power of SSD cache tiering and make 24×7 loading for multiple users a smooth, easy process.
• Easily tackle the high-endurance requirements of NAS with 1 DWPD.
• Offering best-in-class performance, IronWolf 510 SSD ensures low lag and low down time in multi-user environments.
• Seagate has your back in almost every situation possible when it comes to a failed drive with a 2-year Rescue Data Recovery Services plan.
• Enjoy long-term reliability with 1.8M hours MTBF in a PCIe form factor.
• Choose from an extensive portfolio of capacity options including 240GB, 480GB, 960GB, and 1.92TB.

IronWolf Health:

Keep Your Data In Good Shape

For all around well-being, you need prevention, intervention, and recovery.

IronWolf Health Management provides all these aspects of care for supported IronWolf and IronWolf Pro hard drives. Thanks to IHM, which operates in popular NAS operating systems, you can prevent external disturbances from affecting the NAS or drive health, proactively intervene and backup your data when the system notifies, and available industry leading rescue and recovery services should a catastrophic event occur.

Actively Protecting Your NAS

IronWolf Health Management (IHM) is designed to operate on enabled NAS systems, populated with supported Ironwolf SSD, Ironwolf HDDs, and Ironwolf Pro HDDs. IHM helps to improve the overall system reliability by showing prevention, intervention, and recovery options.

Schedule. Review. Track.¹

IHM is integrated within the NAS OS in which it allows you to schedule and review each result of the scan when you want to. The NAS OS will keep a log in which it will help track any trends and keep you well aware of how healthy your drive is based on the results of IHM.

Keep an Eye on Your Workload²

IronWolf Health Management allows you to keep an eye on your workload on compatible NAS. With workload charting you are able to see the data traffic with your NAS on a day by day basis, allowing further piece of mind knowing that IronWolf and IronWolf Pro is built tough to handle 24x7 always on use.

Error Codes and Suggestions

IronWolf Health provides a list of error codes and a suggestion on what you need to do to fix the issues. The chart below helps provides suggestions for each code.

Output Code	Test Result	Suggested Actions to Fix the Issue
100	Notification	Abnormally high operating temperature has been detected. Please ensure rear ventilation ports are not blocked, and try to lower the ambient temperature.
101	Notification	Connection issue on your NAS and hard drive interface has been detected. Please make sure the hard drive is properly installed in the chassis or drive tray, and that the tray is properly installed in your NAS. If issue persists, please contact the NAS Support Team.
102	Notification	Excessive physical shock to the hard drive has been detected. Please ensure your hard drive and NAS are placed on a stable surface. If issue persists, please contact the NAS Support Team.
105	Notification	Excessive vibration has been detected. Please ensure your NAS is placed on a stable surface. If issue persists, please contact the NAS Support Team.
106	Notification	Excessive host resets have been detected. Please ensure the hard drive is properly installed in the chassis or drive tray, and perform a power cycle. If issue persists, please contact the NAS Support Team.
>=200	Warning	IHM has spotted some errors and a full SMART scan has been automatically triggered for your convenience. If the scan fails, please contact Seagate Customer Care.

¹ IronWolf Health Management features may vary from one NAS vendor to another. For further information, please refer to the vendor IHM manual
² Workload charting is only available on compatible NAS. Please check NAS vendor for further details.

Specifications:

Specifications
Capacity	1.92TB	960GB	480GB	240GB
Standard Model	ZP1920NM30001	ZP960NM30001	ZP480NM30001	ZP240NM30001
Features
Interface	PCIe G3 ×4, NVMe 1.3	PCIe G3 ×4, NVMe 1.3	PCIe G3 ×4, NVMe 1.3	PCIe G3 ×4, NVMe 1.3
NAND Flash Type	3D TLC	3D TLC	3D TLC	3D TLC
Form Factor	M.2 2280-D2	M.2 2280-D2	M.2 2280-S2	M.2 2280-S2
Performance
Sequential Read (MB/s) Sustained, 128KB QD321	3,150	3,150	2,650	2,450
Sequential Write (MB/s) Sustained, 128KB QD321	850	1,000	600	290
Random Read (IOPS) (QD32T4)1	270,000	345,000	193,000	100,000
Random Write (IOPS) (QD32T4)1	25,000	28,000	20,000	12,000
Random Read (IOPS) (QD32T8)1	290,000	380,000	199,000	100,000
Random Write (IOPS) (QD32T8)1	27,000	29,000	21,000	13,000
Endurance/Reliability
Total Bytes Written (TB)	3,500	1,750	875	435
Nonrecoverable Read Errors per Bits Read	1 per 10E16	1 per 10E16	1 per 10E16	1 per 10E16
Mean Time Between Failures (MTBF, hours)	1,800,000	1,800,000	1,800,000	1,800,000
Warranty, Limited (years)	5	5	5	5
Power Management
Power Supply	3.3V	3.3V	3.3V	3.3V
Active Max Average Power (W)	6.0	6.0	6.0	5.3
Average Idle Power (W)	2.0	1.95	1.83	1.75
Environmental
Temperature, Operating Internal(°C)	0 to 70	0 to 70	0 to 70	0 to 70
Temperature, Nonoperating (°C)	–40 to 85	–40 to 85	–40 to 85	–40 to 85
Shock, 0.5ms (Gs)	1500	1500	1500	1500
Physical
Height (in/mm, max)	0.140in/3.58mm	0.140in/3.58mm	0.087in/2.23mm	0.087in/2.23mm
Width (in/mm, max)	0.872in/22.15mm	0.872in/22.15mm	0.872in/22.15mm	0.872in/22.15mm
Depth (in/mm, max)	3.16in/80.15mm	3.16in/80.15mm	3.16in/80.15mm	3.16in/80.15mm
Weight (lb/g)	0.018lb/8.3g	0.017lb/8.1g	0.015lb/6.9g	0.014lb/6.5g
Carton Unit Quantity	10	10	10	10

¹ Performance data is based on testing under certain workload conditions and is subject to change. Performance assumes that a typical enterprise data workload has 80% entropy.
² 3.84TB, 1.92TB, and 960GB capacity points require 12V in addition to 5V power.

Documentation:

Download the Seagate IronWolf 510 M.2 SSD Datasheet (.PDF)
