Seagate IronWolf Pro 3.5-Inch Internal NAS Hard Drive
Perfect for small and medium business, creative pro NAS

Overview:

The Power of Agility for Creative Pro and SME NAS Enclosures

IronWolf Pro is designed for everything business NAS. Get used to tough, ready, and scalable 24×7 performance that can handle multidrive environments across a wide range of capacities.

Key Advantages

• Optimized for NAS with AgileArray.™ AgileArray enables dual-plane balancing and RAID optimization in multi-bay environments, with the most advanced power management possible.
• Actively protect your NAS with IronWolf Health Management focusing on prevention, intervention, and recovery.¹
• High performance means no lag time or downtime for users during workload traffic for the NAS. Seagate leads the competition with the highest-performing NAS drive portfolio.²
• Seagate Rescue Data Recovery.³ IronWolf Pro comes with extra peace of mind for any mechanical, accidental, or natural disaster. With a 90% success rate of in-house recovery, Seagate has your back with a 2-year included Rescue Data Recovery plan.

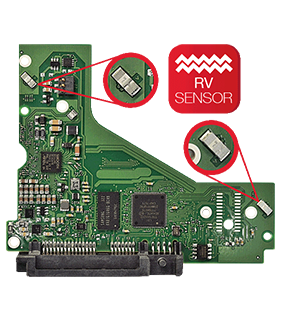

• Rotational Vibration (RV) sensors. First in its class of drives to include RV sensors to maintain high performance in multi-drive NAS enclosures.³
• Range of capacities up to 16TB. More capacity options means more choices that will fit within the budget. Seagate provides a scalable solution for any NAS use-case scenario.
• Do more in multi-user environments. IronWolf provides a workload rate of 180TB/year. Multiple users can confidently upload and download data to the NAS server, knowing IronWolf can handle the workload, whether you are a creative professional or a small business.
• Designed for always-on, always-accessible 24×7 performance. Access data on your NAS any time, remotely or on site.
• 1.2M hours MTBF, 5-year limited warranty represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs.

Best-Fit Applications

• Commercial and enterprise network-attached storage (NAS)
• 1- to 24-bay network attached storage (NAS)
• Backup, archiving, and disaster recovery
• On-premise private cloud
• Virtual storage

¹ Contact your Seagate sales representative for further information.
² Performance may vary depending on user's hardware configuration and operating system.
³ Registration required to activate. Rescue recovery services not available in all countries. Contact your Seagate sales representative for further details.

Features:

Be Tough. Be Ready.

For everything NAS, there’s IronWolf and IronWolf Pro—always on, always working.

Built for multi-user environments and high workload rates, these NAS hard drives are enhanced with AgileArray™ technology for optimal reliability and system scalability.

¹ IronWolf Health features subject to change. Available on 4TB and higher IronWolf drives.
² NAS vendors may vary in compatibility with IronWolf Health Management. Contact your Seagate sales representative for further details.
³ Rescue recovery plan are not available in all countries. Please contact your Seagate sales representative for further details.

Multi-Tier Caching Technology:

How Layering an Application’s Cache Improves Performance

Modern data storage needs go far beyond just computing. From creative professional environments to desktop systems, Seagate provides solutions for almost any application that requires large volumes of storage. As a leader in NAND, hybrid, SMR and conventional magnetic recording technologies, Seagate applies different levels of caching and media optimization to benefit performance and capacity. Multi-Tier Caching (MTC) Technology brings the highest performance and areal density to a multitude of applications. Each Seagate product is uniquely tailored to meet the performance requirements of a specific use case with the right memory, NAND, and media type and size. This paper explains how MTC Technology works to optimize hard drive performance.

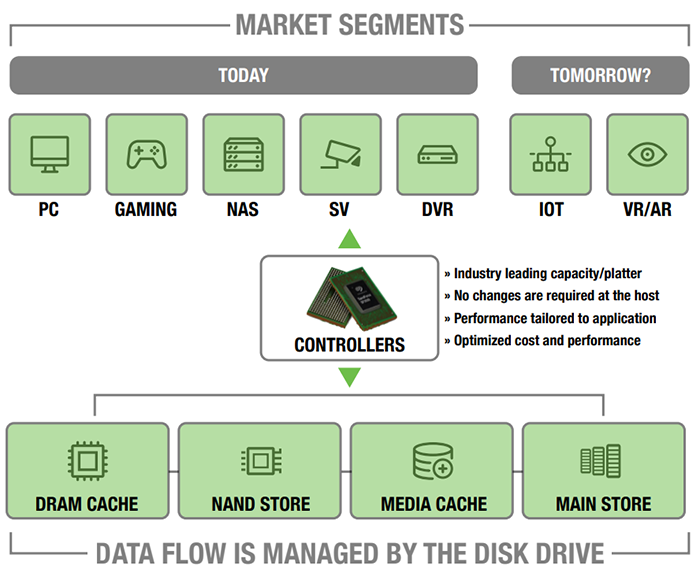

MTC Technology: Key Advantages

Capacity requirements can vary greatly from business to business. While the fastest performance can be achieved using Dynamic Random Access Memory (DRAM) cache, the data in the DRAM is not persistent through power cycles and DRAM is very expensive compared to other media. NAND flash data survives through power cycles but it is still very expensive compared to a magnetic storage medium. Magnetic storage media cache offers good performance at a very low cost. On the downside, media cache takes away overall disk drive capacity from PMR or SMR main store media.

MTC Technology solves this dilemma by using these diverse media components in combination to offer different levels of performance and capacity at varying price points. By carefully tuning firmware with appropriate cache types and sizes, the end user can experience excellent overall system performance. Since the disk drive on-board controller manages the data flow, the operating system and application work seamlessly in executing read/write operations.

MTC Technology is the performance solution for the best daily end user experience.

Single-Tier vs. Multi-Tier Caching

Traditional disk drives use single-tier cache to speed up data flow from the host to the magnetic media main store—also known as permanent storage. In this scheme, shown in Figure 2, DRAM serves many purposes. A small DRAM buffers randomly written data and reorders them before writing to the main store. Reducing the number of seeks during a write improves random write performance significantly. During sequential write operations, such as streaming, DRAM helps to minimize fragmented writes by merging writes to disk. DRAM also serves as a read look-ahead cache, which can help certain random read operations. However, due to the limited size of the DRAM, the benefit of the read look-ahead cache is limited.

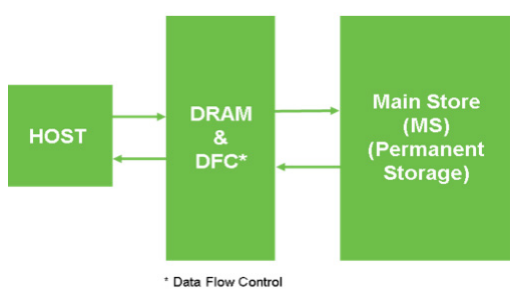

Figure 2. Traditional HDD Caching Data Flow

MTC technology adds various caching layers to further improve both read and write performances. Depending on Seagate’s implementation, some or all of the caching tiers can be utilized for a specific product. In data shown in Figure 3, NAND flash and Media cache layers are added to provide additional performance boost. In this example, NAND flash is used to store most-often-read data to increase read performance while media cache is used to merge small block writes. Since the NAND flash size is in the order of gigabytes compared to the hundreds of megabytes found on DRAM, cache hit is higher by order of 100 times. For fragmented write operations, media cache boosts performance as DRAM reaches its limit. Media cache can sustain a near-sequential data rate of up to scores of gigabytes to better handle burst workloads. All user data are protected and moved in and out of the main store storage without host intervention, making the MTC Technology completely transparent to the user.

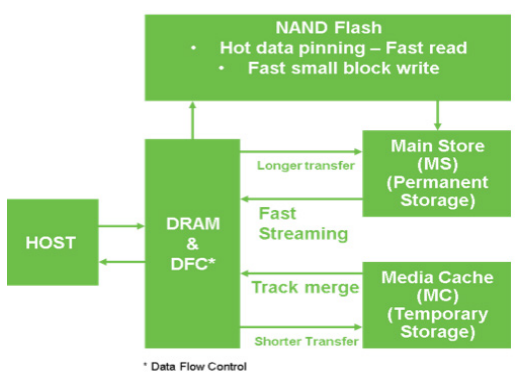

Figure 3. MTC Technology HDD Caching Data Flow

MTC Technology: Understanding the Layers of Performance and Capacity

As each layer of caching has an associated cost per storage unit, it is important to understand the performance metric of each component as well as the practical capacity provided by each component. Figure 4 shows the approximate buffering/storage capacity, performance metric as well as unique performance characteristics of each component. Combination of these components and firmware implementation are used to optimize the performance and capacity requirements for a given application.

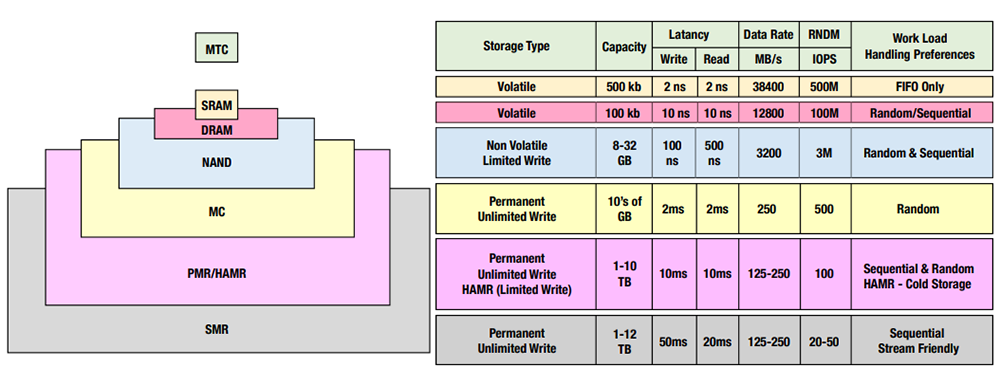

Figure 4. Capacity + Performance + Unique Characteristics + Firmware = High-Functioning Storage

Terms and Definitions

• MTC Technology (Multi-Tier Caching Technology) – Seagate’s trademarked caching scheme which utilizes multiple memory schemes and firmware to optimize data flow to enhance both read and write performance.
• PMR – Perpendicular magnetic recording
• SMR – Shingled magnetic recording
• MC (Media Cache) – A temporary non-user addressable storage on magnetic media used to buffer incoming or outgoing data.
• MS (Main Store) – A permanent user addressable storage on magnetic storage. Data can be either storage on PMR or SMR media.
• DRAM (Dynamic Random Access Memory) – Volatile memory used to temporarily store data for computing purpose.
• NAND Flash – Non-volatile solid state memory used to store bulk data.

MTC Technology Media Cache & Main Store Usage Cases

The usage of media cache and main store based on each application is illustrated in Table 1. Each application has typical data storage usage noted by file size and its inherent workload characteristics by sequential write, sequential read, random write and random read. These file sizes and workload characteristics drive cache size and type requirements. For example, compute environment deals with small files that are written and read randomly on the HDD. This workload is characterized by high likelihood of random write and random read. Media cache and other caching usages can be high, while the main store data storage requirement is fairly low. By contrast, single-drive surveillance applications deal with large files that are highly sequential read and write. This workload doesn’t require much media cache to boost performance. It does, however, require lots of main store data storage capacity.

Conclusion

Seagate is committed to delivering storage solutions with the highest performance and capacity available. Unique to the Seagate brand, MTC Technology breaks barriers by leveraging media cache, NAND and DRAM in a variety of hard drives for high-performance workloads. BarraCuda Pro, the essential HDD for creative professionals and high-performance desktops, is an excellent example of a drive that hits a high sequential data rate thanks to MTC Technology. Due to the adaptability and affordability of a MTC Technology approach, individuals and small and medium businesses alike can hone in on the full capabilities of their storage drive—ultimately leading to faster and more efficient workflows.

IronWolf Health:

Keep Your Data In Good Shape

For all around well-being, you need prevention, intervention, and recovery.

IronWolf Health Management provides all these aspects of care for supported IronWolf and IronWolf Pro hard drives. Thanks to IHM, which operates in popular NAS operating systems, you can prevent external disturbances from affecting the NAS or drive health, proactively intervene and backup your data when the system notifies, and available industry leading rescue and recovery services should a catastrophic event occur.

Actively Protecting Your NAS

IronWolf Health Management (IHM) is designed to operate on enabled NAS systems, populated with supported Ironwolf SSD, Ironwolf HDDs, and Ironwolf Pro HDDs. IHM helps to improve the overall system reliability by showing prevention, intervention, and recovery options.

Schedule. Review. Track.¹

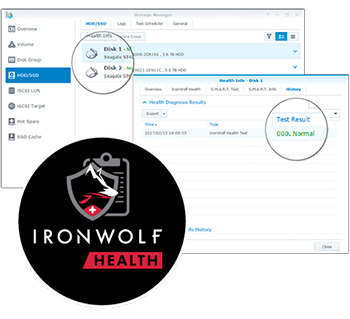

IHM is integrated within the NAS OS in which it allows you to schedule and review each result of the scan when you want to. The NAS OS will keep a log in which it will help track any trends and keep you well aware of how healthy your drive is based on the results of IHM.

Keep an Eye on Your Workload²

IronWolf Health Management allows you to keep an eye on your workload on compatible NAS. With workload charting you are able to see the data traffic with your NAS on a day by day basis, allowing further piece of mind knowing that IronWolf and IronWolf Pro is built tough to handle 24x7 always on use.

Error Codes and Suggestions

IronWolf Health provides a list of error codes and a suggestion on what you need to do to fix the issues. The chart below helps provides suggestions for each code.

Output Code	Test Result	Suggested Actions to Fix the Issue
100	Notification	Abnormally high operating temperature has been detected. Please ensure rear ventilation ports are not blocked, and try to lower the ambient temperature.
101	Notification	Connection issue on your NAS and hard drive interface has been detected. Please make sure the hard drive is properly installed in the chassis or drive tray, and that the tray is properly installed in your NAS. If issue persists, please contact the NAS Support Team.
102	Notification	Excessive physical shock to the hard drive has been detected. Please ensure your hard drive and NAS are placed on a stable surface. If issue persists, please contact the NAS Support Team.
105	Notification	Excessive vibration has been detected. Please ensure your NAS is placed on a stable surface. If issue persists, please contact the NAS Support Team.
106	Notification	Excessive host resets have been detected. Please ensure the hard drive is properly installed in the chassis or drive tray, and perform a power cycle. If issue persists, please contact the NAS Support Team.
>=200	Warning	IHM has spotted some errors and a full SMART scan has been automatically triggered for your convenience. If the scan fails, please contact Seagate Customer Care.

¹ IronWolf Health Management features may vary from one NAS vendor to another. For further information, please refer to the vendor IHM manual
² Workload charting is only available on compatible NAS. Please check NAS vendor for further details.

Specifications:

Specifications	20TB	18TB	16TB	14TB	12TB
Standard Model Number	ST20000NE000	ST18000NE000	ST16000NE000	ST14000NE0008	ST12000NE0008
Interface	SATA 6Gb/s	SATA 6Gb/s	SATA 6Gb/s	SATA 6Gb/s	SATA 6Gb/s
Features and Performance
Drive Bays Supported	Up to 24-bay	Up to 24-bay	Up to 24-bay	Up to 24-bay	Up to 24-bay
Recording Technology	CMR	CMR	CMR	CMR	CMR
Drive Design (Air or Helium)	Helium	Helium	Helium	Helium	Helium
Workload Rate Limit (WRL)	300	300	300	300	300
Rotational Vibration (RV) Sensors	Yes	Yes	Yes	Yes	Yes
Cache (MB)	256	256	256	256	256
Reliability
Mean Time Between Failures (MTBF, hours)	1,200,000	1,200,000	1,200,000	1,200,000	1,200,000
Reliability Rating @ Full 24×7 Operation (AFR)	0.73%	0.73%	0.73%	0.73%	0.73%
Nonrecoverable Read Errors per Bits Read, Max	1 per 10E15	1 per 10E15	1 per 10E15	1 per 10E15	1 per 10E15
Power-On Hours per Year (24×7)	8760	8760	8760	8760	8760
Sector Size (Bytes per Logical Sector)	512E	512E	512E	512E	512E
Rescue Data Recovery Services (years)3	3	3	3	3	3
Limited Warranty (years)	5	5	5	5	5
Performance
Spindle Speed (RPM)	7200	7200	7200	7200	7200
Interface Access Speed (Gb/s)	6.0, 3.0, 1.5	6.0, 3.0, 1.5	6.0, 3.0, 1.5	6.0, 3.0, 1.5	6.0, 3.0, 1.5
Max. Sustained Transfer Rate OD (MB/s)	285MB/s	260MB/s	255MB/s	255MB/s	240MB/s
Rotational Vibration @ 10-1500 Hz (rad/s)	12.5	12.5	12.5	12.5	12.5
Power Management
Startup Current, Typical (12V, A)	2.0	2.0	2.0	2.0	2.0
Idle Power, Average (W)	5.0	5.0	5.0	5.0	5.0
Average Operating Power (W)	7.7W	8.0W	7.6W	7.6W	7.8W
Standby Mode (W)	1.0	1.25	1.0	1.0	1.0
Sleep Mode (W)	1.0	1.25	1.0	1.0	1.0
Power Supply Requirements	+12 V and +5 V	+12 V and +5 V	+12 V and +5 V	+12 V and +5 V	+12 V and +5 V
Environmental/Temperature
Operating Temperature (ambient, min °C)	0°C	0°C	0°C	0°C	0°C
Operating Temperature (drive reported, max °C)4	65°C	65°C	65°C	65°C	65°C
Nonoperating Temperature (ambient, min °C / max °C)	–40 / 70°C	–40 / 70°C	–40 / 70°C	–40 / 70°C	–40 / 70°C
Environmental/Acoustics
Vibration, Nonoperating: 10Hz to 500Hz (Grms)	2.27	2.27	2.27	2.27	2.27
Acoustics, Idle (typical, measured in Idle 1 state) (dBA)	28	28	28	28	28
Acoustics, Seek (typical) (dBA)	32	32	32	32	32
Environmental/Shock
Shock, Operating 2ms (Read/Write) (Gs)	40/40Gs	50/50Gs	50/50Gs	50/50Gs	50/50Gs
Shock, Nonoperating, 1ms and 2ms (Gs)	200	200	200	200	200
Physical
Height (mm/in)	26.11mm/1.028in	26.11mm/1.028in	26.11mm/1.028in	26.11mm/1.028in	26.11mm/1.028in
Width (mm/in, max)	101.85mm/4.01in	101.85mm/4.01in	101.85mm/4.01in	101.85mm/4.01in	101.85mm/4.01in
Depth (mm/in, max)	146.99mm/5.787in	146.99mm/5.787in	146.99mm/5.787in	146.99mm/5.787in	146.99mm/5.787in
Weight (g/lb)	670g/1.477lb	670g/1.477lb	670g/1.477lb	670g/1.477lb	670g/1.477lb
Carton Unit Quantity	20	20	20	20	20
Cartons per Pallet/Cartons per Layer	40 / 8	40 / 8	40 / 8	40 / 8	40 / 8
Specifications	10TB	8TB	6TB	4TB	2TB
Standard Model Number	ST10000NE0008	ST8000NE001	ST6000NE000	ST4000NE001	ST2000NE001
Interface	SATA 6Gb/s	SATA 6Gb/s	SATA 6Gb/s	SATA 6Gb/s	SATA 6Gb/s
Features and Performance
Drive Bays Supported	Up to 24-bay	Up to 24-bay	Up to 24-bay	Up to 24-bay	Up to 24-bay
Recording Technology	CMR	CMR	CMR	CMR	CMR
Drive Design (Air or Helium)	Helium	Air	Air	Air	Air
Workload Rate Limit (WRL)	300	300	300	300	300
Rotational Vibration (RV) Sensors	Yes	Yes	Yes	Yes	Yes
Cache (MB)	256	128	128	128	256
Reliability
Mean Time Between Failures (MTBF, hours)	1,200,000	1,200,000	1,200,000	1,200,000	1,200,000
Reliability Rating @ Full 24×7 Operation (AFR)	0.73%	0.73%	0.73%	0.73%	0.73%
Nonrecoverable Read Errors per Bits Read, Max	1 per 10E15	1 per 10E15	1 per 10E15	1 per 10E15	1 per 10E15
Power-On Hours per Year (24×7)	8760	8760	8760	8760	8760
Sector Size (Bytes per Logical Sector)	512	512E	512E	512	512
Rescue Data Recovery Services (years)3	3	3	3	3	3
Limited Warranty (years)	5	5	5	5	5
Performance
Spindle Speed (RPM)	7200	7200	7200	7200	7200
Interface Access Speed (Gb/s)	6.0, 3.0, 1.5	6.0, 3.0, 1.5	6.0, 3.0, 1.5	6.0, 3.0, 1.5	6.0, 3.0, 1.5
Max. Sustained Transfer Rate OD (MB/s)	240MB/s	240MB/s	220MB/s	220MB/s	220MB/s
Rotational Vibration @ 10-1500 Hz (rad/s)	12.5	12.5	12.5	12.5	12.5
Power Management
Startup Current, Typical (12V, A)	2.0	2.0	2.0	2.0	2.0
Idle Power, Average (W)	5.0	7.8	7.1	5.5	3.8
Average Operating Power (W)	7.8W	10.1W	9.3W	8.7W	6.7W
Standby Mode (W)	1.7	1.0	1.0	1.0	1.0
Sleep Mode (W)	1.7	1.0	1.0	1.0	1.0
Power Supply Requirements	+12 V and +5 V	+12 V and +5 V	+12 V and +5 V	+12 V and +5 V	+12 V and +5 V
Environmental/Temperature
Operating Temperature (ambient, min °C)	5°C	5°C	5°C	5°C	0°C
Operating Temperature (drive reported, max °C)4	65°C	65°C	65°C	65°C	65°C
Nonoperating Temperature (ambient, min °C / max °C)	–40 / 70°C	–40 / 70°C	–40 / 70°C	–40 / 70°C	–40 / 70°C
Environmental/Acoustics
Vibration, Nonoperating: 10Hz to 500Hz (Grms)	2.27	2.27	2.27	2.27	2.27
Acoustics, Idle (typical, measured in Idle 1 state) (dBA)	28	28	28	28	28
Acoustics, Seek (typical) (dBA)	30	30	30	30	30
Environmental/Shock
Shock, Operating 2ms (Read/Write) (Gs)	70/40Gs	70/40Gs	70/40Gs	70/40Gs	70/40Gs
Shock, Nonoperating, 1ms and 2ms (Gs)	250	300	300	300	300
Physical
Height (mm/in)	26.11mm/1.028in	26.11mm/1.028in	26.11mm/1.028in	26.11mm/1.028in	26.11mm/1.028in
Width (mm/in, max)	101.85mm/4.01in	101.85mm/4.01in	101.85mm/4.01in	101.85mm/4.01in	101.85mm/4.01in
Depth (mm/in, max)	146.99mm/5.787in	146.99mm/5.787in	146.99mm/5.787in	146.99mm/5.787in	146.99mm/5.787in
Weight (g/lb)	690g/1.521lb	720g/1.59lb	716g/1.58lb	650g/1.431lb	620g/1.37lb
Carton Unit Quantity	20	20	20	20	20
Cartons per Pallet/Cartons per Layer	40 / 8	40 / 8	40 / 8	40 / 8	40 / 8

¹ Load/unload tested to 600,000 cycles.
² Seagate does not recommend operating at sustained case temperatures above 60°C. Operating at higher temperatures will reduce useful life of the product.
³ Rescue Data Recovery Services not available in all countries.
⁴ Seagate does not recommend operating at sustained drive temperatures above 60C. Operating at higher temperatures may affect drive health.

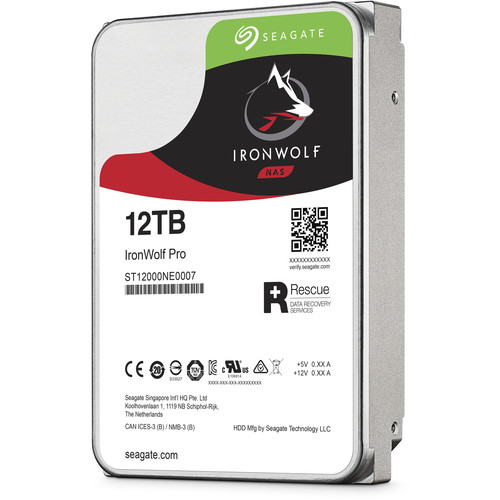

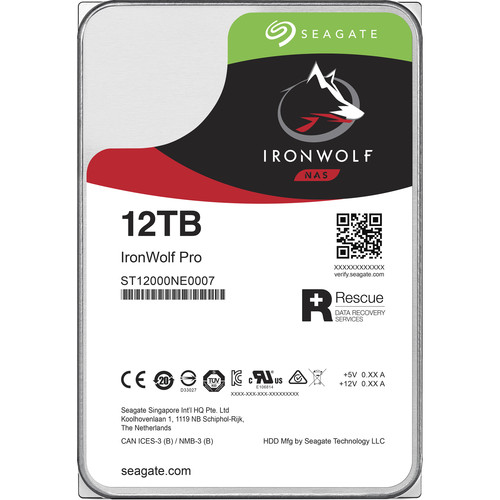

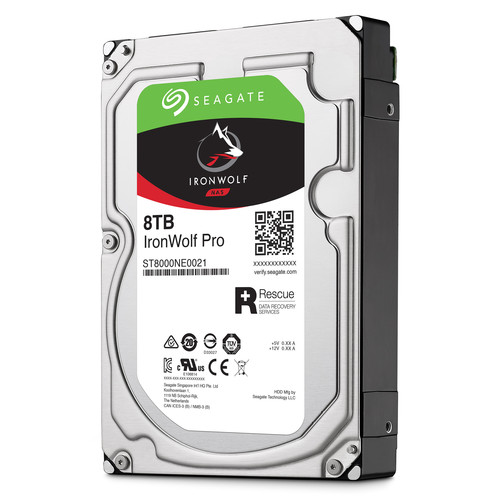

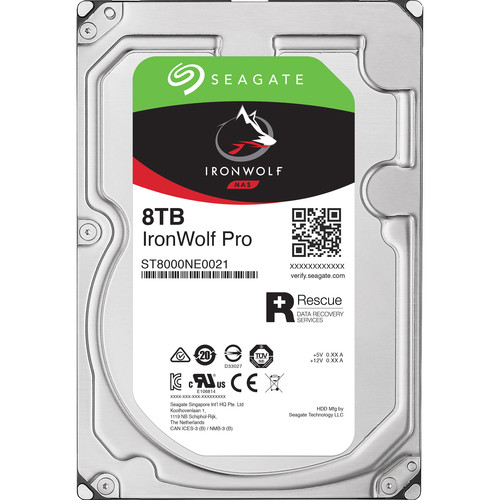

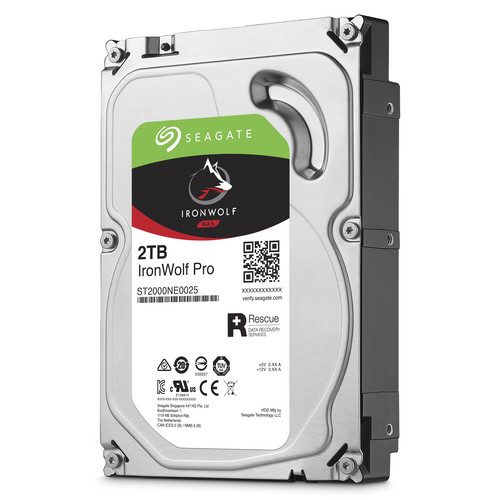

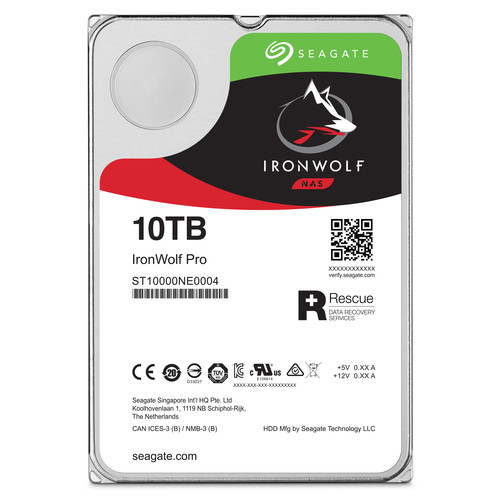

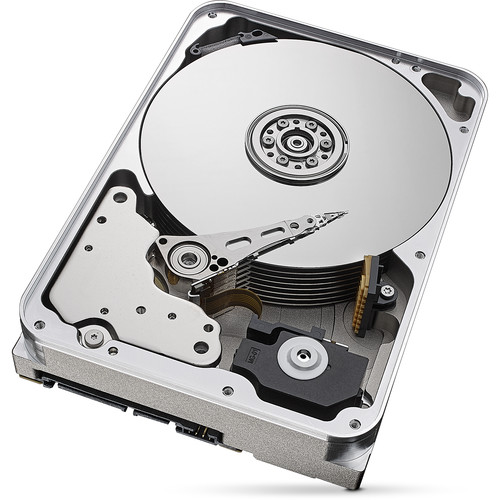

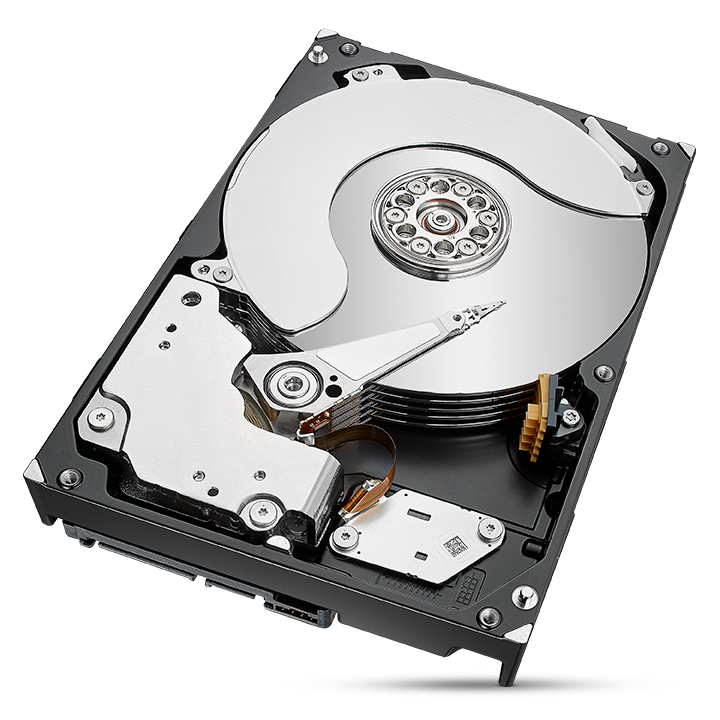

Views:

---

---

---

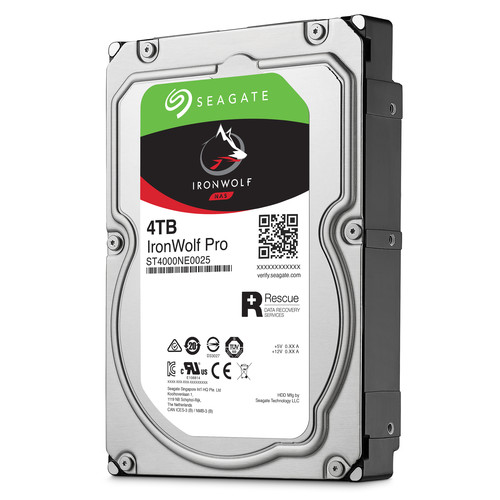

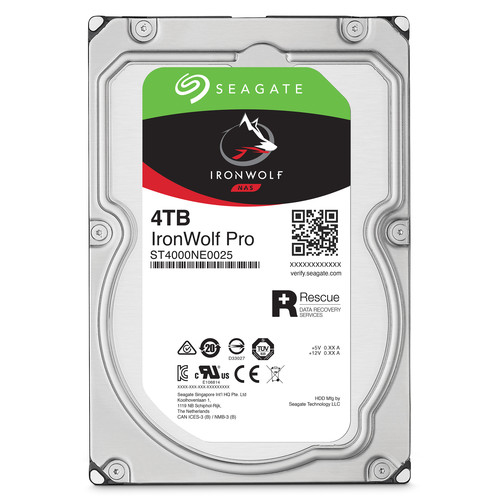

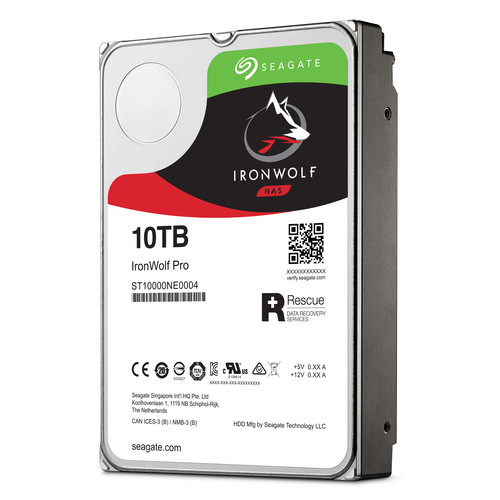

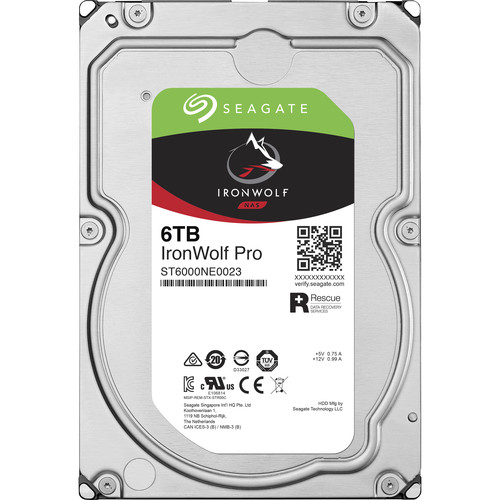

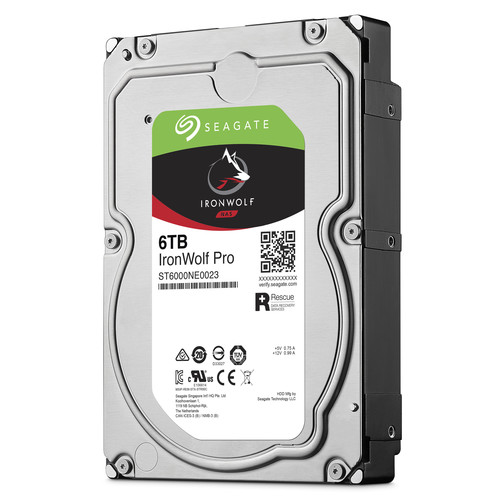

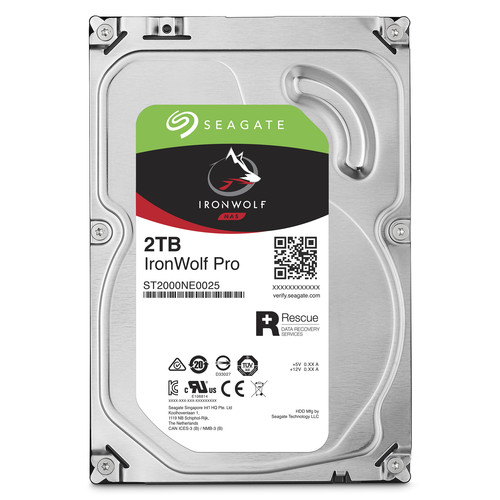

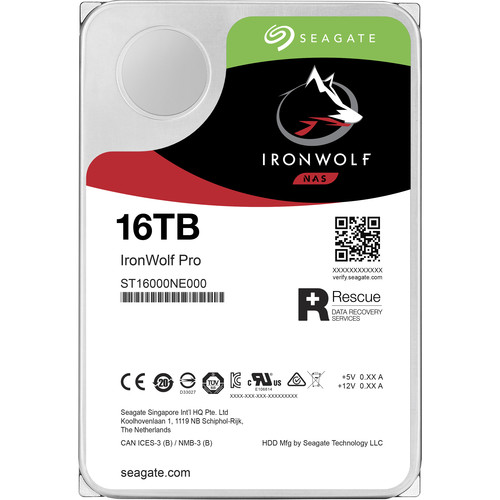

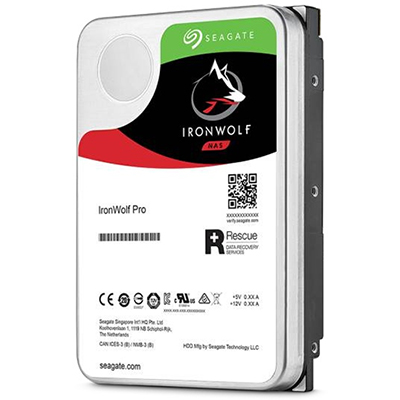

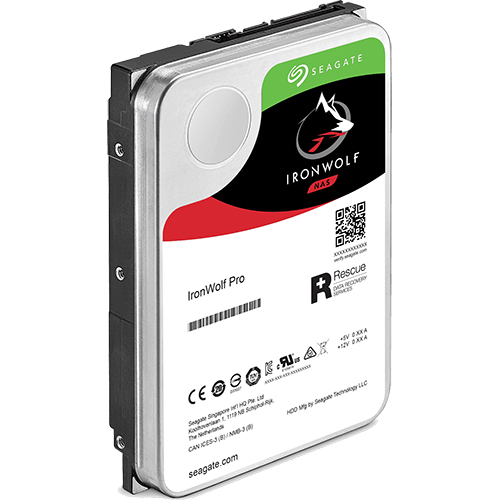

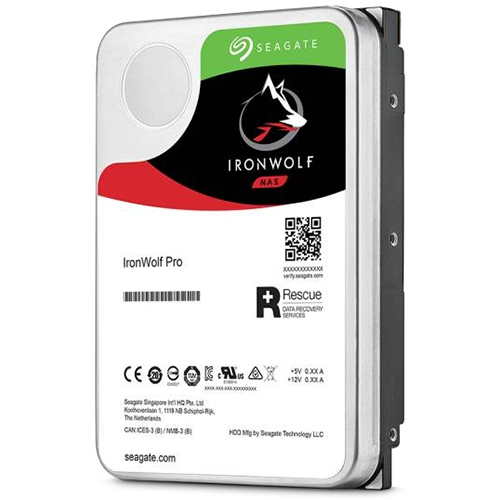

14TB - 20TB Hard Drive

Documentation:

Download the Seagate IronWolf Pro 3.5-Inch NAS HDD Datasheet (.PDF)
