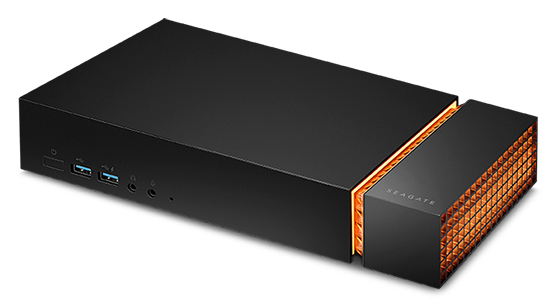

Seagate FireCuda Gaming Dock
Thunderbolt 3 With Expandable NVMe

Overview:

Game harder with Seagate® FireCuda® Gaming Dock, an elite 4TB storage hub that connects an entire desktop battlestation—keyboard, mouse, USB headset, webcam, display monitor, and more—via one Thunderbolt 3 cable. Plug it into a laptop PC and put the expandable M.2 NVMe slot to work with a FireCuda 510 NVMe SSD upgrade for turbocharged application boot up and load times. It even features customizable RGB LED lights for leveled-up illumination.

The Heart of Your Battlestation

• Built-in 4TB HDD storage
• Expandable M.2 NVMe SSD slot
• Single Thunderbolt 3 connection to:
  • 1 - Thunderbolt 3 port (for laptop connection)¹
  • Thunderbolt 3 port (for accessory device)
  • 1 - DisplayPort 1.4
  • 4 - USB 3.1 Gen2 ports
  • 1 - USB 3.1 Gen2 battery-charge port
  • 1 - RJ45 Ethernet network port
  • 1 - 3.5mm audio-in/mic port
  • 1 - 3.5mm audio-out port
• Customizable RGB LED lighting and pattern control

Form and Function—Fused at Last

• Room for Everything: 4TB of space lets you keep a huge library of games and files within reach.
• Thunderbolt 3 Docking: Connect an array of gaming peripherals via one Thunderbolt 3 cable—Thunderbolt 3, DisplayPort, USB 3.0, RJ45 Ethernet network port, 3.5mm audio-in/mic port, 3.5mm audioout port.
• Expandable M.2 NVMe: Install the latest titles in no time, boot applications faster, and load games, maps, plus more with breakneck speed using the expandable NVMe slot—it’s designed for premium-performance flash upgrades like the FireCuda 510 NVMe SSD.
• Customizable LEDs: Featuring a minimalist industrial form factor and customizable RGB LEDs, FireCuda Gaming Dock is the perfect complement to a well-designed rig. Just use the included Toolkit software to explore and choose from a range of colors and light patterns.

¹ FireCuda Gaming Dock does not provide power to laptops.

Features:

The Heart of Your Battlestation

Game harder with an elite 4TB storage hub that connects your entire battlestation via one Thunderbolt 3 cable. Equipped with an array of ports, an expandable M.2 NVMe SSD slot for insane speeds, and customizable LEDs for killer lighting, the glory of gaming is yours town.

Elite Space and Upgradable M.2 NVMe SSD Speed

Streamline and Organize With a High-Powered USB Hub

Goodbye web of cables, adapters, and an insufficient amount of laptop ports. This Thunderbolt 3 powered USB hub lets you quickly and cleanly connect your gaming peripherals to your computer. When you need to head out with your laptop, just unplug and go.

Bask in the Glow of RGB LEDs

Seagate believe beauty and function belong together—especially when it comes to your gaming station. Featuring a minimalist industrial design and customizable LEDs, FireCuda Gaming Dock includes easy-to-use software that lets you explore a range of colors and light patterns for leveled-up illumination to complement your rig.

Specifications:

Retail Packaging	Product Dimensions	Box Dimensions	Master Carton Dimensions	Pallet Dimensions
Length (in/mm)	2.008in/51mm	4.488in/114mm	23.228in/590mm	47.874in/1216mm
Width (in/mm)	10.63in/270mm	12.756in/324mm	12.835in/326mm	39.921in/1014mm
Depth (in/mm)	5.315in/135mm	11.693in/297mm	11.693in/297mm	37.913in/963mm
Weight (lb/kg)	5.886lb/2.67kg	7.143lb/3.24kg	38.052lb/17.26kg	740.092lb/335.7kg
Quantities
Boxes per Master Carton	5
Master Cartons per Pallet	18
Pallet Layers	3
System Requirements
System Requirements	Windows®10

Documentation:

Download the Seagate® FireCuda® Gaming Dock Datasheet (.PDF)
