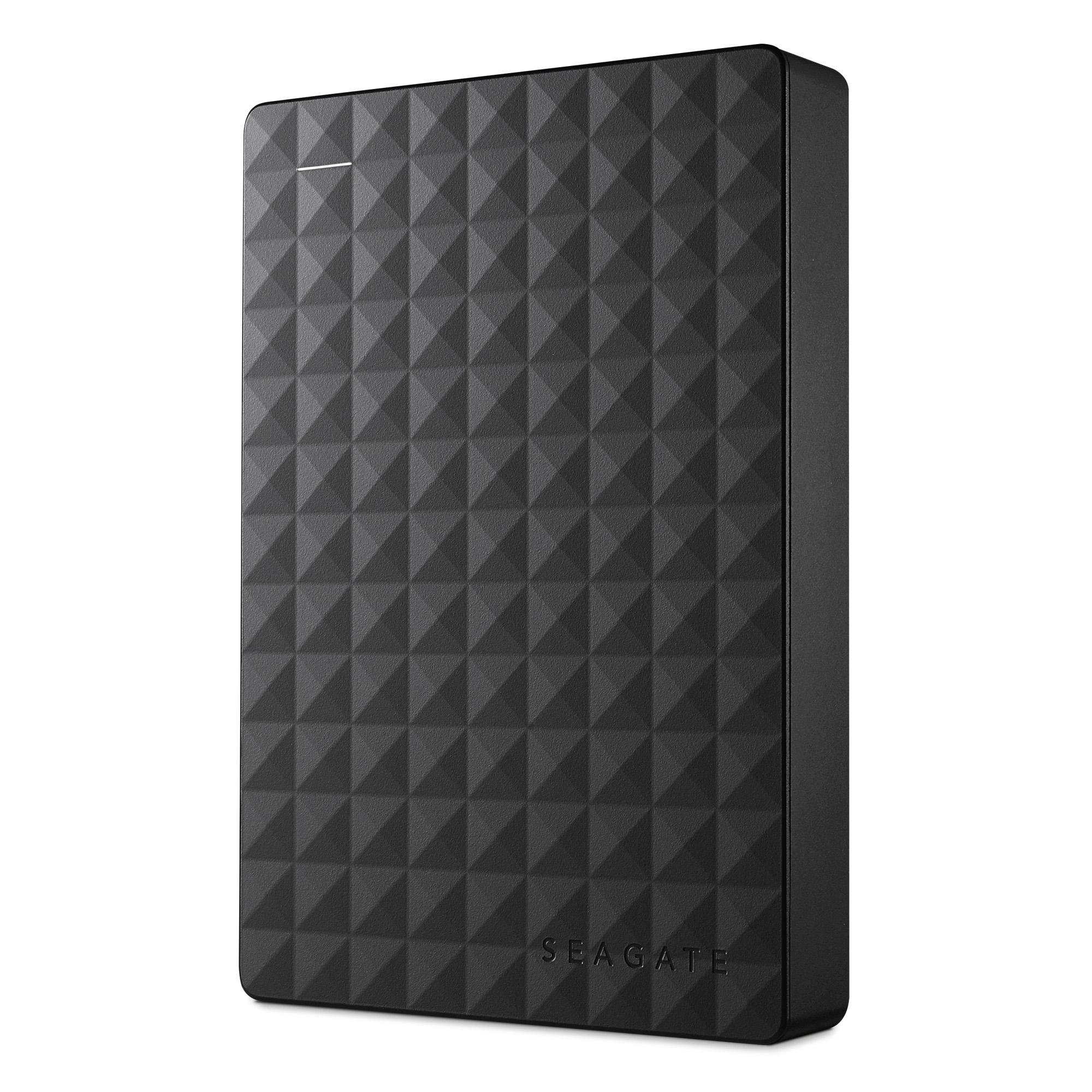

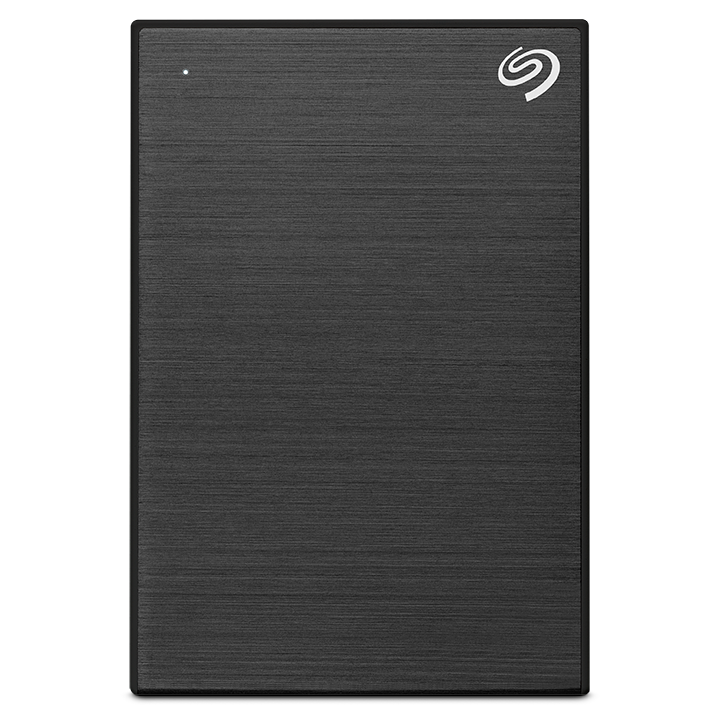

Seagate Expansion Portable Hard Drive

Overview:

Seagate Expansion portable drive, add-on storage for your PC

The Seagate® Expansion portable drive is compact and perfect for onthe-go. Instantly add more storage space to your computer and take large files with you when you travel.

Setup is simple and straightforward; simply connect a single USB cable and you are ready to go. The drive is powered from the USB cable, so there is no need for an external power supply. Plus, it is automatically recognized by the Windows® operating system, so there is no software to install and nothing to configure. Saving files is easy—simply drag-and-drop.

Take advantage of the fast data transfer speeds with the USB 3.0 interface by connecting to a SuperSpeed USB 3.0 port. USB 3.0 is backwards compatible with USB 2.0 for additional system compatibility.

Features:

Simple add-on storage that goes with you

The Seagate Expansion Portable hard drive offers an easy-to-use solution when you need to instantly add storage to your computer and take files on the go.

• Drag and drop file saving right out of the box
• USB powered
• Fast data transfer with USB 3.0 connectivity

The easy-to-use storage solution.

The Expansion portable hard drive installs easily by plugging in a single USB cord. You can start saving your digital files to this external hard drive within seconds of removing it from the box.

Instantly adds storage capacity

Digital photos, video and music files can tax your computer's storage, causing performance to decline as its internal hard drive fills to capacity. The Expansion portable hard drive comes in a range of capacities, with the 1TB model offering enough data storage for:

• Up to 1,000 hours of digital video
• Up to 250 2-hour DVD movies
• Up to 320,000 digital photos
• Up to 16,660 hours of digital music

Installs in seconds

Seagate® Expansion™ portable hard drive features like these make it incredibly easy to use this drive right from the box.

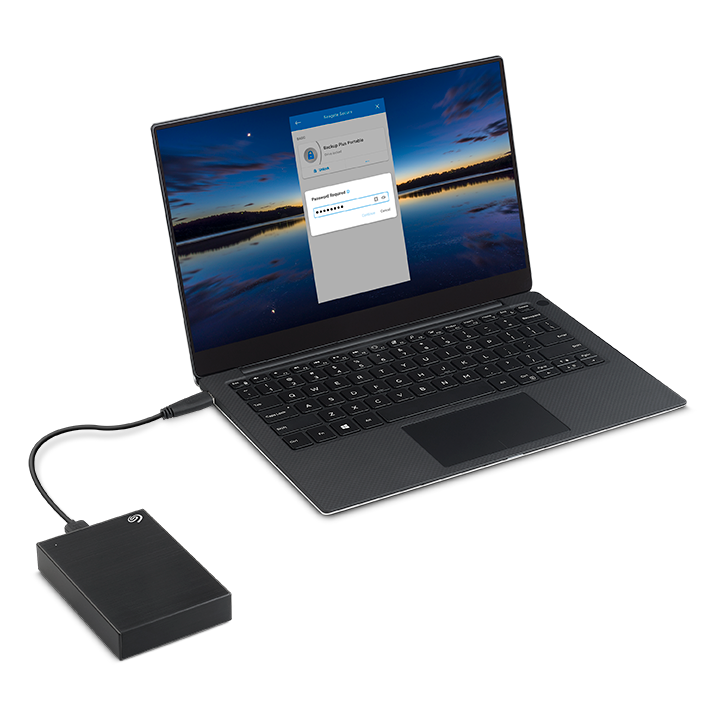

• Simply plug the included USB cable into your computer–no external power supply needed
• The drive is automatically recognized by Windows operating system–no software to install and nothing to configure.
• Drag and drop to save files to the Expansion portable drive.
• Built-in power management automatically ensures energy-efficient operation

Specifications:

Capacity 2TB and below	Product Dimensions	Box Dimensions	Master Carton Dimensions	Pallet Dimensions
Length (in/mm)	4.606in/117mm	5.511in/140mm	7.007in/178mm	47.992in/1219mm
Width (in/mm)	3.149in/80mm	4.055in/103mm	5.433in/138mm	40in/1016mm
Depth (in/mm)	0.582in/14.8mm	1.220in/31mm	4.566in/116mm	43.267in/1099mm
Weight (lb/kg)	0.374lb/0.17kg	0.573lb/0.26kg	2.535lb/1.15kg	860.706lb/390.41kg
Capacity 3TB, 4TB	Product Dimensions	Box Dimensions	Master Carton Dimensions	Pallet Dimensions
Length (in/mm)	4.606in/117mm	5.511in/140mm	7.007in/178mm	47.992in/1219mm
Width (in/mm)	3.149in/80mm	4.055in/103mm	6.771in/172mm	40in/1016mm
Depth (in/mm)	0.787in/20mm	1.555in/39.5mm	4.566in/116mm	43.267in/1099mm
Weight (lb/kg)	0.524lb/0.238kg	0.729lb/0.331kg	3.284lb/1.49kg	837.227lb/379.76kg
Capacity 5TB	Product Dimensions	Box Dimensions	Master Carton Dimensions	Pallet Dimensions
Length (in/mm)	4.606in/117mm	5.858in/148.8mm	7.149in/181.6mm	47.992in/1219mm
Width (in/mm)	3.149in/80mm	4.176in/106mm	7.094in/180.2mm	40in/1016mm
Depth (in/mm)	0.787in/20mm	1.696in/43.1mm	4.661in/118.4mm	43.267in/1099mm
Weight (lb/kg)	0.524lb/0.238kg	0.694lb/0.315kg	3.284lb/1.49kg	837.227lb/379.76kg
Quantities
Boxes per Master Carton	4
Master Cartons per Pallet	320 (1TB, 2TB), 240 (3TB, 4TB, 5TB)
Pallet Layers	8
System Requirements
System Requirements	Windows® 10, Windows 8, Windows 7 operating system1 USB 3.0 port (required for USB 3.0 transfer speeds or backwards compatible with USB 2.0 ports at USB 2.0 transfer speeds)1

¹ Compatibility may vary depending on user’s hardware configuration and operating system.

Documentation:

Download the Seagate® Expansion portable drive Datasheet (.PDF)
