Seagate Exos Systems
Cutting edge storage performance and data protection.


Seagate Exos Systems

Exos EnterpriseFaster, Easier, More Resilient Than Ever.

Cutting edge storage performance and data protection.

Discover a better way to scale your enterprise and safeguard critical data with Seagate Systems. Our innovative and easily integrated hardware and software products create a seamless experience for any company that wants its data to be installed, operated, and protected with ease. Available with maximum capacity, unparalleled performance, self-healing technology, and built to support future drive innovation with state-of-the-art, cost-optimized, environmentally-friendly architecture.

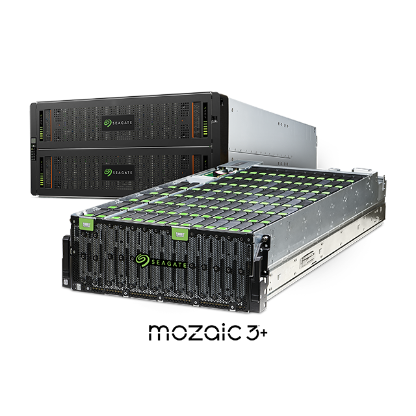

Seagate Exos CORVAULT

Seagate Exos CORVAULT

Seagate Exos CORVAULT is a petabyte-scale, rack-mounted 4U block storage system that aggregates 106 (20TB) drives totaling 2.1 PB of storage. CORVAULT includes Seagate’s innovative self-healing storage technology. Purpose-built for always-on availability for applications that require massive capacity, performance, and resiliency.

Seagate Exos CORVAULT

Seagate Exos Corvault
106 x 3.5″ SAS HDD self-encrypting drives

Perfect for:

  • Self-Healing
  • High-Density Storage
  • Autonomous Drive Regeneration

Exos X Series — RAID & Data Protection

Seagate Exos X

Seagate Exos X is an advanced storage array that is petabytescale, rack-mounted block storage with builtin self-healing technology, advanced data protection, and software value that aggregates drives in a single enclosure and up to 336 drives across multiple enclosures. Value-rich 2U and 5U solutions for applications that require capacity, versatility performance, and low latency.

Seagate Exos X 2U12

Seagate Exos X 2U12
12 × 3.5-inch drive slots

Perfect for:

  • Capacity data systems
  • Data analytics tools
  • Data center expansion

Seagate Exos X 2U24

Seagate Exos X 2U24
24 × 2.5-inch drive slots

Perfect for:

  • Data analytics solutions
  • Data streaming
  • Actionable surveillance

Seagate Exos X 5U84

Seagate Exos X 5U84
84 × 3.5-inch drive slots

Perfect for:

  • Data archiving
  • High-density & high-throughput
  • Capacity planning

Seagate Exos Systems

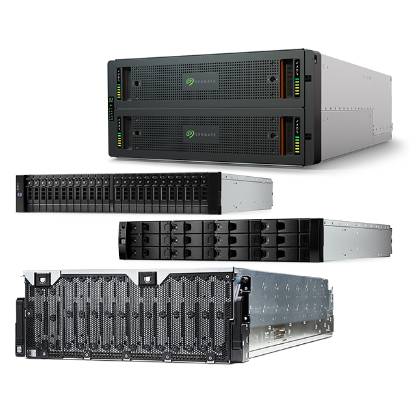

Exos E Series — JBOD Building Blocks

Seagate Exos E

Seagate Exos E rack mount storage expansion enclosures seamlessly connect a 2U form factor with either 12 or 24 drives, a 4U form factor with 106 drives, or a 5U form factor with 84 drives with scalable capacity up to 336 drives.

Seagate Exos E 2U12

Seagate Exos E 2U12
12 × 3.5-inch drive slots

Perfect for:

  • SMB data centers
  • Entry-level data storage
  • High-density storage system

Seagate Exos E 2U24

Seagate Exos E 2U24
24 × 2.5-inch drive slots

Perfect for:

  • Growing data centers
  • High-throughput
  • Adaptive data storage

Seagate Exos E 5U84

Seagate Exos E 5U84
84 × 3.5-inch drive slots

Perfect for:

  • Enterprise & private clouds
  • Big data storage
  • Multi-petabyte system

Seagate Exos E 4U106

Seagate Exos E 4U106
96 × 3.5-inch & 10 × 2.5-inch drive slots

Perfect for:

  • Enterprise & private clouds
  • High-performance computing
  • Multi-petabyte storage

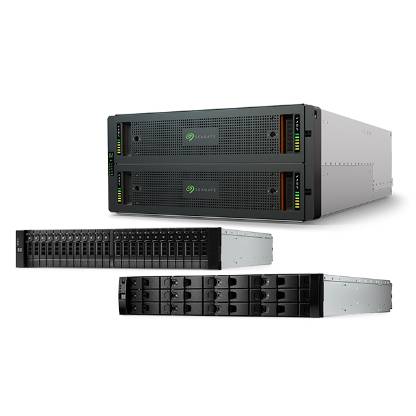

Exos AP Series — Compute & Storage

Seagate Exos AP

Seagate Exos AP delivers high-performance computing and cutting-edge storage in a single system, expandable with multiple enclosures up to 336 drives. Supports industry-standard management tools and computing structures.

Seagate Exos AP 2U12

Seagate Exos AP 2U12
12 × 3.5-in LFF or 2.5-in SFF drives (in 3.5-in conversion carrier)

Perfect for:

  • Small to mid-sized businesses
  • Scalable capacity
  • Immediate data access

Seagate Exos AP 2U24

Seagate Exos AP 2U24
(24) 3.5” or 2.5” drive slots, 2U Rackmount, form factor

Perfect for:

  • Mid-sized businesses
  • Scalable capacity
  • Optimized Deployments

Seagate Exos AP 5U84

Seagate Exos AP 5U84
84 × 3.5-in LFF drive slots

Perfect for:

  • Private clouds
  • Fast input/output data speeds
  • Innovation-ready scalability


  Exos Corvault Exos X Exos AP Exos E
Purpose Mass Storage Array Advanced Storage Array Host Compute With Mass Storage Expansion Storage JBOD
Resiliency ADAPT/ADR ADAPT/ADR n/a Follows Master
Form Factor 4U, 106 Drives 2U, 12 Drives
2U, 24 Drives
5U, 84 Drives
2U, 12 Drives
2U, 24 Drives
5U, 84 Drives
2U, 12 Drives
2U, 24 Drives
4U, 106 Drives 5U, 84 Drives
Capacity 2.12 PB Up to 6.72 PB Up to 6.72 PB Up to 1.68 PB
Per Enclosure
Drives Includes 106
20TB LFF HDD
LFF/SFF
HDD/SSD
LFF/SFF
HDD/SSD
LFF/SFF
HDD/SSD
Storage Interface 12G SAS Up to 4 chassis Up to 10 chassis Up to 10 chassis
Interfaces SAS 32/16Gb FC
25/10GbE iSCSI
10GBASE-T Auto to 1Gb
12Gb SAS
12G SAS 12G SAS
Array Data Protection Seagate, ADAPT,
Raid 1, 5, 6,10
Seagate ADAPT,
RAID 0, 1, 5, 6, 10
n/a Follows Master
Software Values Linear Storage Target Virtual pools,
Thin provisioning,
SSD read cache,
Encryption,
Auto-Tiering,
Snapshots,
Asynchronous Replication
n/a Follows Master
Controllers and Modules Dual Controllers
Dual Modules
Dual Controllers
Dual Modules
Dual Controllers
Dual Modules
Dual Controllers
Dual Modules
Compliance Global Global Global Global
Warranty 3-Year 3-Year 3-Year 3-Year
