Seagate IronWolf 125 Pro 2.5-Inch Internal NAS SSD

Overview:

Am Ultra high endurance NAS for Creative pro, SMB, and SME

NAS-optimized Seagate® IronWolf® 125 Pro SSDs—offering blistering performance, power loss data protection, and multi-user workload support capable of 1 DWPD.

High Endurance: 1 DWPD delivers endurance and performance, offering the ideal SSD solution for 24×7, multi-user NAS environments
Power Loss Data Protection: Enjoy peace of mind during a power loss knowing your data can stay safe

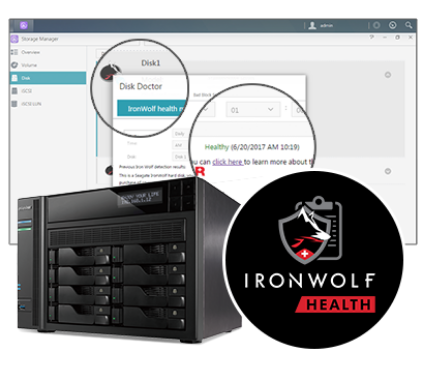

IronWolf Health Management: Embedded software monitors your SSD NAS drive health in compatible NAS, notifying you to intervene before a catastrophic event occurs
Data Recovery: Rest easy with three years of Seagate Rescue Data Recovery Services, offering an industry-leading 90% success rate against unexpected data loss from power outages, natural disasters, user error, viruses, and more
Wide Range of Capacity Options: Choose from an extensive portfolio of capacities, including 240GB, 480GB, 960GB, 1.92TB, and 3.84TB
Warranty: Enjoy long-term peace of mind with the included five-year limited warranty protection plan and three-year Rescue Data Recovery Services plan

Features:

Increase NAS Performance and Reliability

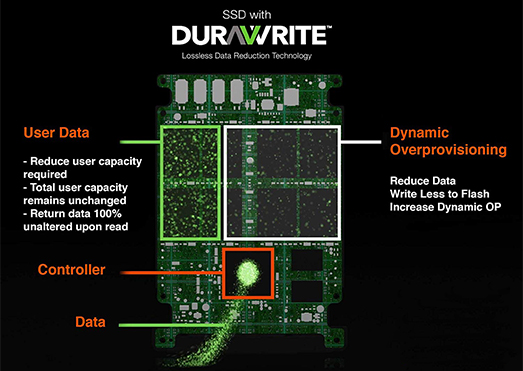

IronWolf 125 Pro SSD is an enterprise-class drive equipped with DuraWrite™ technology, allowing for increased performance and reliability. Watch the following video to learn more about this fascinating technology.

Drive Health and Data Recovery

When integrated into compatible NAS systems, these drives provide overall system reliability increases due to IronWolf Health Management (IHM). In addition, IronWolf 125 Pro SSD includes a robust two-year Rescue Data Recovery Services plan.

Achieve Pure Performance in Small Business NAS

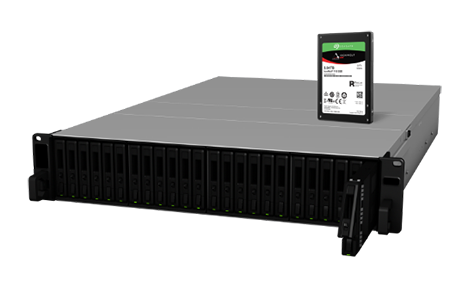

Small businesses using AFA systems can be fully utilized with sustained data rates up to 560MB/s, which allow the server to deliver more data in a multi-user environment. Using an AFA, such as a Synology FS3017 fitted with the 3.84TB IronWolf 125 Pro, will bring your business to the next level of storage.

Be More Creative with SSD Cache in NAS

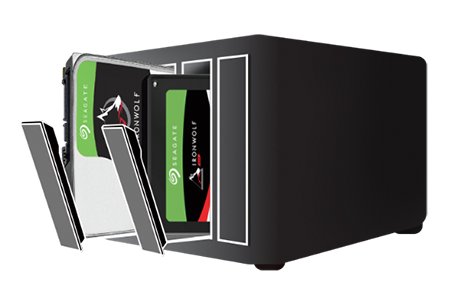

The IronWolf portfolio includes hard drives and solid state drives for NAS systems. IronWolf 125 Pro SSD can be integrated for caching capabilities on compatible NAS, such as the QNAP TVS-951X. Having a hybrid of HDD and SSD allows for caching that provides maximized capacity, minimal cost, and optimal performance.

Optimized for NAS AFA or Cache Tiering

High-Capacity Storage

NAS with all 3.5-inch HDD

High-Capacity Storage

High capacity
Affordable cost
Larger size

High capacity and lower price HDD compared to SSD

Hybrid of HDD and SSD Caching

NAS combining

Hybrid of HDD and SSD Caching

Maximized capacity
Minimal cost
Optimal size and performance

Lower TCO with advantage of capacity and performance

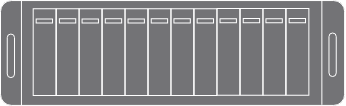

Pure Performance

NAS with all 2.5-inch SSD

Pure Performance

Smaller capacity
Higher cost
Smaller size, high density

Lowest latency with 10GbE network performance

IronWolf Health:

Keep Your Data In Good Shape

For all around well-being, you need prevention, intervention, and recovery.

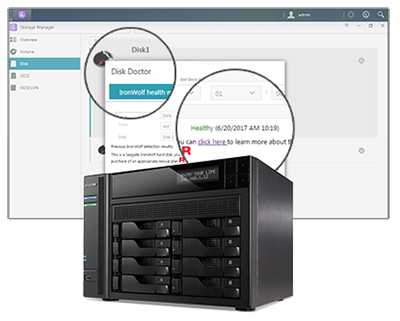

IronWolf Health Management provides all these aspects of care for supported IronWolf and IronWolf Pro hard drives. Thanks to IHM, which operates in popular NAS operating systems, you can prevent external disturbances from affecting the NAS or drive health, proactively intervene and backup your data when the system notifies, and available industry leading rescue and recovery services should a catastrophic event occur.

Actively Protecting Your NAS

IronWolf Health Management (IHM) is designed to operate on enabled NAS systems, populated with supported Ironwolf SSD, Ironwolf HDDs, and Ironwolf Pro HDDs. IHM helps to improve the overall system reliability by showing prevention, intervention, and recovery options.

Prevention

Enjoy seamless, superior NAS experience as IronWolf Health monitors your system environment and offers preventative actions to secure your data. It keeps tabs on conditions such as temperature, shock, vibration, intermittent connections and signal integrity.

Intervention

Avoid catastrophic data loss events by allowing IronWolf Health to analyze hundreds of parameters, recommending backup as needed. IHM has adaptive algorithms that monitor critical drive and health parameters related to data transfer, performance, readability, writability and overall reliability.

Recovery

In the event of failure, rely on our Rescue Data Recovery Service (2-year service included with IronWolf Pro). IHM provides you easy access to it through the NAS OS.

Schedule. Review. Track.¹

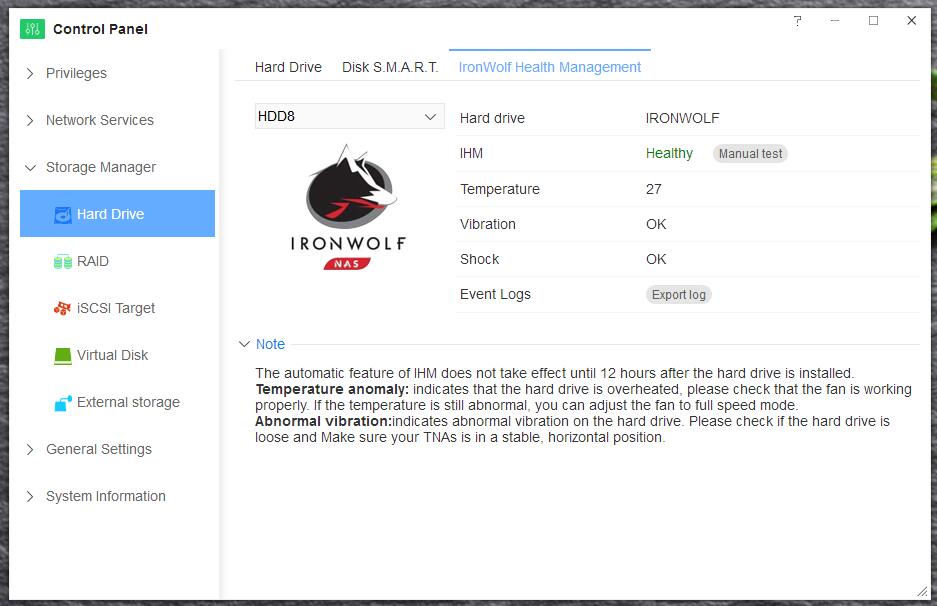

IHM is integrated within the NAS OS in which it allows you to schedule and review each result of the scan when you want to. The NAS OS will keep a log in which it will help track any trends and keep you well aware of how healthy your drive is based on the results of IHM.

Keep an Eye on Your Workload²

IronWolf Health Management allows you to keep an eye on your workload on compatible NAS. With workload charting you are able to see the data traffic with your NAS on a day by day basis, allowing further piece of mind knowing that IronWolf and IronWolf Pro is built tough to handle 24x7 always on use.

Keep an Eye on Your Workload

Error Codes and Suggestions

IronWolf Health provides a list of error codes and a suggestion on what you need to do to fix the issues. The chart below helps provides suggestions for each code.

Output Code	Test Result	Suggested Actions to Fix the Issue
100	Notification	Abnormally high operating temperature has been detected. Please ensure rear ventilation ports are not blocked, and try to lower the ambient temperature.
101	Notification	Connection issue on your NAS and hard drive interface has been detected. Please make sure the hard drive is properly installed in the chassis or drive tray, and that the tray is properly installed in your NAS. If issue persists, please contact the NAS Support Team.
102	Notification	Excessive physical shock to the hard drive has been detected. Please ensure your hard drive and NAS are placed on a stable surface. If issue persists, please contact the NAS Support Team.
105	Notification	Excessive vibration has been detected. Please ensure your NAS is placed on a stable surface. If issue persists, please contact the NAS Support Team.
106	Notification	Excessive host resets have been detected. Please ensure the hard drive is properly installed in the chassis or drive tray, and perform a power cycle. If issue persists, please contact the NAS Support Team.
>=200	Warning	IHM has spotted some errors and a full SMART scan has been automatically triggered for your convenience. If the scan fails, please contact Seagate Customer Care.

¹ IronWolf Health Management features may vary from one NAS vendor to another. For further information, please refer to the vendor IHM manual
² Workload charting is only available on compatible NAS. Please check NAS vendor for further details.

Specifications:

Specifications
Capacity	3.84TB	1.92TB	960GB	480GB	240GB
Standard Model	ZA3840NX10001	ZA1920NX10001	ZA960NX10001	ZA480NX10001	ZA240NX10001
Features
Interface	SATA 6Gb/s	SATA 6Gb/s	SATA 6Gb/s	SATA 6Gb/s	SATA 6Gb/s
NAND Flash Type	3D TLC	3D TLC	3D TLC	3D TLC	3D TLC
Form Factor	2.5 in × 7mm	2.5 in × 7mm	2.5 in × 7mm	2.5 in × 7mm	2.5 in × 7mm
Performance
Sequential Read (MB/s) Sustained, 128KB QD321	545	545	545	545	545
Sequential Write (MB/s) Sustained, 128KB QD321	520	520	520	500	360
Random Read (IOPS) Sustained, 4KB QD321	96,000	96,000	96,000	96,000	90,000
Random Write (IOPS) Sustained, 4KB QD321	30,000	30,000	25,000	16,000	12,000
Endurance/Reliability
Total Bytes Written (TB)	7000	3500	1750	875	435
Nonrecoverable Read Errors per Bits Read	1 per 10E17	1 per 10E17	1 per 10E17	1 per 10E17	1 per 10E17
Mean Time Between Failures (MTBF, hours)	2,000,000	2,000,000	2,000,000	2,000,000	2,000,000
Warranty, Limited (years)	5	5	5	5	5
Power Management
Power Supply	5V	5V	5V	5V	5V
+5V Active Max Average Power (W)	5.0	4.4	4.0	3.0	2.5
Max Average Idle Power (W)	1.9	1.8	1.6	1.4	1.4
Environmental
Temperature, Operating Internal (°C)	0 to 70	0 to 70	0 to 70	0 to 70	0 to 70
Temperature, Nonoperating (°C)	–40 to 85	–40 to 85	–40 to 85	–40 to 85	–40 to 85
Shock, Nonoperating: 0.5ms (Gs)	1500	1500	1500	1500	1500
Physical
Height (in/mm, max)	0.279in/7.10mm	0.279in/7.10mm	0.279in/7.10mm	0.279in/7.10mm	0.279in/7.10mm
Width (in/mm, max)	2.760in/70.10mm	2.760in/70.10mm	2.760in/70.10mm	2.760in/70.10mm	2.760in/70.10mm
Depth (in/mm, max)	3.950in/100.35mm	3.950in/100.35mm	3.950in/100.35mm	3.950in/100.35mm	3.950in/100.35mm
Weight (lb/g)	0.136lb/62g	0.132lb/60g	0.130lb/59g	0.123lb/56g	0.121lb/55g

¹ Performance data is based on testing under certain workload conditions and is subject to change. Performance assumes that a typical enterprise data workload has 80% entropy.
² 3.84TB, 1.92TB, and 960GB capacity points require 12V in addition to 5V power.
