Seagate Exos X10 3.5-Inch Internal 512e SATA Enterprise Hard Drive
Perfect for storage-intensive workloads, OLTP, Hadoop, Ceph and HPC applications


Seagate Exos X10 3.5-Inch Internal 512e SATA Enterprise Hard Drive

Seagate Products
Seagate Exos X10 3.5-Inch Enterprise Hard Drives - 512e SATA Standard
Seagate Exos X10 3.5-Inch Internal 512e SATA Enterprise Hard Drive - 8 TB
512-Emulation Format, 256MB Cache, 7200RPM, SATA 6Gb/s Standard Interface, 5 Years Limited Warranty
#ST8000NM0206
Our Price: $270.00
Seagate Exos X10 3.5-Inch Internal 512e SATA Enterprise Hard Drive - 10 TB
512-Emulation Format, 256MB Cache, 7200RPM, SATA 6Gb/s Standard Interface, 5 Years Limited Warranty
#ST10000NM0086
Our Price: $340.00
Seagate Exos X10 3.5-Inch Enterprise Hard Drives - 512e SATA Hyperscale
Seagate Exos X10 3.5-Inch Internal 512e SATA Enterprise Hard Drive - 10 TB
512-Emulation Format, 256MB Cache, 7200RPM, SATA 6Gb/s Hyperscale Interface, 5 Years Limited Warranty
#ST10000NM0016
Our Price: $340.00



Exos EnterpriseOverview:

Scalable. Responsive. Innovative.

For everything hyperscale, there’s Exos X— the most powerful way to access the datasphere and harness the full potential of the cloud. Exos X16, Exos X12, and Exos X10 enterprise hard drives integrate the latest technology in support of a scalable, secure, and reliable cloud data center. Specifically designed to work in highly scalable environments requiring low power consumption and weight, the Exos X series hard drives perform consistently while scaling to meet the stringent TCO requirements of most cloud-based data centers.

Exos X10 Series

The Seagate Exos™ X10 hard drive includes 10TB and 8TB secure, high-capacity, high-performance enterprise hard drives optimized for demanding hyperscale applications for maximum TCO savings.

  • Stores up to 9PB in a single 42U rack with helium technology
  • Advanced Write Caching provides a 20% performance boost*
  • Perfect for OLTP and HPC applications
  • Hyperscale SATA model tuned for large data transfers
  • Proven reliability backed by 2.5M-hr MTBF
  • Lowest 10TB power consumption
  • Up to 6% savings per rack per year*

Best-Fit Applications

  • Hyperscale applications/cloud data centers
  • Massive scale-out data centers
  • OLTP and HPC applications
  • High-capacity density RAID storage
  • Mainstream enterprise external storage arrays
  • Distributed file systems, including Hadoop and Ceph
  • Enterprise backup and restore— D2D, virtual tape
  • Centralized surveillance

* Compared to 8TB competitive product.

Features:

Maximum Storage Capacity for High Rack Space Efficiency

The Exos X10 enterprise hard drives support up to 10TB per drive,1 providing 25% more petabytes per rack.2 High storage densities allow the latest technology and greatest efficiencies to help catalyze the datasphere, enabling data center architects and IT professionals to deliver trusted performance, rock-solid reliability, ironclad security and low TCO for demanding 24×7 operations.

Industry's Highest Performance Combined With the Lowest Power and Weight for Lower TCO

Exos X10 drives offer the industry's highest 10TB hard drive performance with advanced write caching, making it perfect for OLTP, Hadoop, Ceph and HPC applications. The hyperscale SATA model is tuned for large data transfers and offers a 20% boost in random write performance.2 Experience the industry's best in IOPS/watt by optimizing your storage with Seagate's PowerBalance™ feature.

Innovative Helium Design

The proven, enterprise-class Exos X10 is backed by a 2.5M-hour MTBF. Built on a wroughtaluminum base, the helium-sealed drive design with no porosity and uniform density is engineered with superior material and a wide-weld design, and utilizes the latest hermetic interconnect technology to support higher data rate heads and higher pin counts to excel in extreme thermal conditions in a robust storage infrastructure. These Seagate X class hard drives provide digital environmental sensors that measure internal humidity, pressure and temperature, to help ensure high reliability and performance.

Seagate Secure

Enhanced Enterprise Reliability, Data Protection and Security

The Exos X10 hard drives offer advanced security features that help protect data where it lives—on the drive. Advanced security levels to prevent unauthorized access to a drive and safeguard stored data include Seagate Downloads & Diagnostics, TCG-compliant SelfEncrypting Drive and government-grade FIPS/Common Criteria tamper-resistent hard drive.3 Seagate Secure™ drives simplify drive repurposing and disposal, help protect data-at-rest, and comply with corporate and federal data security mandates.



1 Seagate recommends validating your configuration with your HBA/RAID controller manufacturer to ensure full capacity capabilities.
2 Compared to 8TB competitive product.
3 Self-Encrypting Drives (SED) are not available in all models or countries. May require TCG-compliant host or controller support.

Specifications:


Specifications - 512 Emulation SATA 6Gb/s Hyperscale SATA 6Gb/s Standard
10TB 8TB 10TB 8TB
Standard Model1 ST10000NM0086 ST8000NM0206
Hyperscale Model1 ST10000NM0016 ST8000NM0016
SED Model1,2 ST10000NM0156
SED-FIPS/Common Criteria Model1,2,3 ST10000NM0176
Features
Helium Sealed-Drive Design With Wide Weld Yes Yes Yes Yes
Digital Environmental Sensors Yes Yes Yes Yes
Protection Information (T10 DIF)
SuperParity Yes Yes Yes Yes
PowerChoice™/PowerBalance™ Technology Yes Yes Yes Yes
Low Halogen/Hot-Plug Support4 Yes Yes Yes Yes
Cache, Multisegmented (MB) 256 256 256 256
Organic Solderability Preservative Yes Yes Yes Yes
Reliability / Data Integrity
Mean Time Between Failures (MTBF, hours) 2,500,000hr 2,500,000hr 2,500,000hr 2,500,000hr
Reliability Rating @ Full 24×7 Operation (AFR) 0.35% 0.35% 0.35% 0.35%
Nonrecoverable Read Errors per Bits Read 1 sector per 10E15 1 sector per 10E15 1 sector per 10E15 1 sector per 10E15
Power-On Hours per Year (24×7) 8760 8760 8760 8760
Sector Size (Bytes per Sector) 512 512 512 512
Limited Warranty (years) 5 5 5 5
Performance
Spindle Speed (RPM) 7200RPM 7200RPM 7200RPM 7200RPM
Interface Access Speed (Gb/s) 6.0, 3.0, 1.5 6.0, 3.0, 1.5 6.0, 3.0, 1.5 6.0, 3.0, 1.5
Max. Sustained Transfer Rate OD (MB/s) 249MB/s 249MB/s 249MB/s 249MB/s
Random Read/Write 4K QD16 WCD (IOPS) 170, 138 170, 138 170, 370 170, 370
Average Latency (ms) 4.16 4.16 4.16 4.16
Interface Ports Single Single Single Single
Rotation Vibration @ 1500 Hz (rad/s²) 12.5 12.5 12.5 12.5
Power Consumption
Idle A (W) Average 4.5W 4.5W 5W 5W
Max Operating Power, Random Write (WCD) 4K/4Q RR50% / RW50% 8.0 8.0 8.0 8.0
Max Operating Power, Random Read 4K/16Q (W) 8.4 8.4 8.4 8.4
Power Supply Requirements +12 V and +5 V +12 V and +5 V +12 V and +5 V +12 V and +5 V
Environmental/Temperature
Temperature, Operating (°C) 5°C – 60°C 5°C – 60°C 5°C – 60°C 5°C – 60°C
Vibration, Nonoperating: 10Hz to 500Hz (Grms) 2.27 2.27 2.27 2.27
Shock, Operating 2ms (Read/Write) (Gs) 70/40Gs 70/40Gs 70/40Gs 70/40Gs
Shock, Nonoperating, 1ms/2ms (Gs) 250 250 250 250
Physical
Height (mm/in, max)2 26.11mm/1.028in 26.11mm/1.028in 26.11mm/1.028in 26.11mm/1.028in
Width (mm/in, max)2 101.85mm/4.010in 101.85mm/4.010in 101.85mm/4.010in 101.85mm/4.010in
Depth (mm/in, max)2 147.0mm/5.787in 147.0mm/5.787in 147.0mm/5.787in 147.0mm/5.787in
Weight (g/lb) 650g/1.433lb 650g/1.433lb 650g/1.433lb 650g/1.433lb
Carton Unit Quantity 20 20 20 20
Cartons per Pallet/Cartons per Layer 40 / 8 40 / 8 40 / 8 40 / 8

1 Invoice SPA required for most SED and SED-FIPS models.
2 Self-Encrypting Drives (SED) and FIPS 140-2 Validated drives are not available in all models or countries. May require TCG-compliant host or controller support.
3 See FIPS 140-2 Level 2 Certificate at: http://csrc.nist.gov/groups/STM/cmvp/documents/140-1/1401val2011.htm#1635
4 Supports Hotplug operation per Serial ATA Revision 2.6 specification.
5 These base deck dimensions conform to the Small Form Factor Standard (SFF-8301) found at www.sffcommittee.org. For connector-related dimensions, see SFF-8323.

Views:

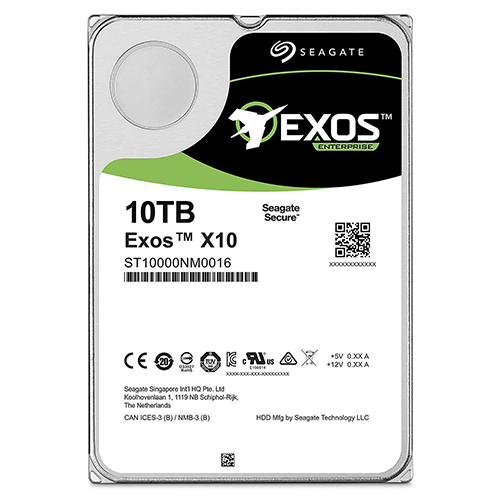

Front View

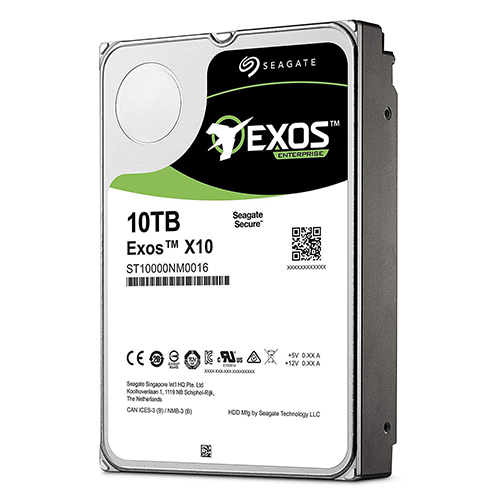

Left Angle View

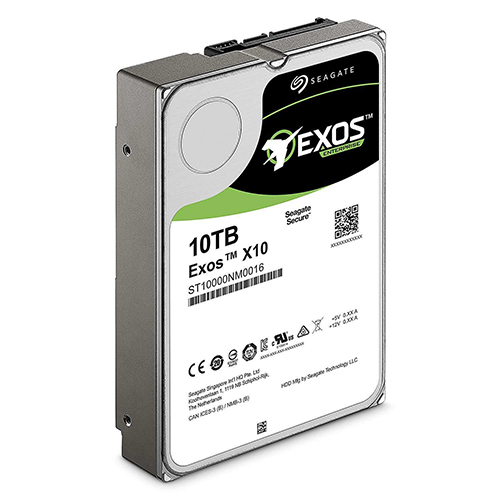

Right Angle View

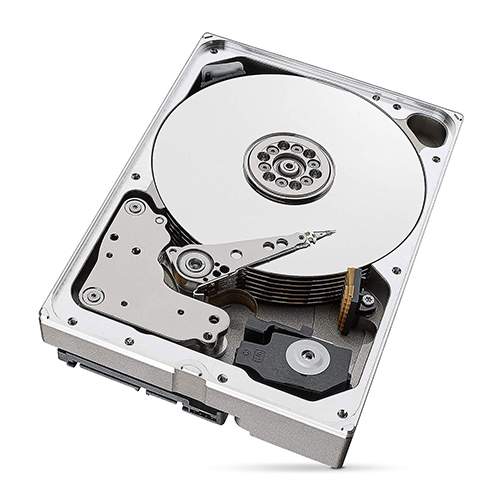

Inside View

Documentation:

Download the Seagate Exos X10 3.5-Inch Enterprise HDD Datasheet (.PDF)
