Seagate Exos X 2U12
Advanced data protection, capacity, and performance for smaller deployments.


Seagate Exos X 2U12

Seagate Products
Seagate Exos X Series Systems
Seagate Exos X 2U12 Advanced Storage Array
#X-2U12
Get a Quote!

Click here to jump to more pricing!

Exos EnterpriseOverview:

Exos X 2U12 Advanced Storage Array

Seagate Exos X advanced storage array is a petabyte-scale, rack-mounted block storage enclosure with self-healing technology, advanced data protection, and software value delivering superefficient mass-capacity storage for conventional data centers and cloud infrastructure.

A value-rich solution for applications that require massive capacity, performance, low latency, and dual-controller availability. Advanced features include self-healing storage, data protection options, and a full enterprise software stack offering virtual pools, thin provisioning, SSD caching, encryption, auto-tiering, snapshots, and asynchronous replication.

Product Highlights

  • Self-healing storage technology, ADAPT, and ADR
  • Deliver unfettered data access with dual redundant controllers capable of achieving superior sequential read and write performance
  • Expand a data center seamlessly with flexible SSD, HDD, and hybrid configuration options
  • Efficiently manage hot and cold data with real-time data tiering
  • Save space and maximize capacity by stacking 10 Enclosures for 120 drives of data storage

Capacity

Capacity
Limitless data growth

Scalability

Scalability
Industry-first economics

Security

Security
Keep your data safe


Seagate Storage Upgrade Promotion

Features:

High Capacity. Small Footprint

Save space with up to 12 SSD or HDD drives and dual controllers all in a 2U rackmount enclosure. Connect 10 enclosures for a total of 120 drives.

The ideal storage solution for emerging customers who need larger data storage at the greatest space utilization with modern technology, high-capacity drives, and lower power consumption.

Enterprise-Grade Platform

The standard for storage administrators seeking petabyte capability in a 2U form factor, frictionless integration, advanced features, and data protection options along with management simplicity.

A rich set of enterprise features and data protection including self-healing storage with improved Advanced Distributed Autonomic Protection Technology (ADAPT) and Autonomous Drive Regeneration (ADR), auto-tiering, snapshots, replication, and Seagate’s new ASIC-based VelosCT™ controller architecture yields extremely high-performance and high reliability.

Ultimate Availability

Self-healing technology, redundant hot-swap controllers, drives, fans, and power supplies, dual power cords, hot standby spare, automatic failover, and multi-path support.

The finest solution for storage administrators who want modern high-end features, drive resiliency, and the ability to nearly eliminate downtime and maximize availability. Seagate redundancy and self-healing technology deliver on continuity and recovery objectives.

Reliable and Self-healing. Exos X features self-healing storage technology, Advanced Distributed Autonomic Protection Technology (ADAPT) and Autonomous Drive Regeneration (ADR). Field-proven design with five nines (99.999%) availability. Seagate ADAPT erasure code data protection software dramatically reduces array rebuild overhead. Unique Seagate ADR reduces human intervention and e-waste by automatically renewing hard drives "in situ" and on the fly.

Built for speed and resilience. Up to 2 times the performance of the previous generation with redundant active-active controllers powered by the ASIC-based VelosCT controller architecture. Streamline your overhead, with improved throughput, management, and recovery.

Easy to Set Up, Maintain, and Expand. All system components—the enclosure, the controller, the firmware, and the drives—are developed and optimized by our engineers to work together seamlessly. The modular architecture makes components interchangeable between systems, and upgrades are simple due to common FRUs, PCMs, controllers, and software.

Gain and Scale Capacity with Consistent High Performance. The Exos X 2U12 enables even the smallest business with maximum speed and throughput. Additionally, businesses can expand the system as data requirements grow, with 12 drive slots of storage capacity in a 2U rackmount enclosure. Connect up to ten 2U12 enclosures together for a total of 120 drive slots.

In Security at the Foundation of the Data Life Cycle. Protect the most valuable business assets with Seagate Secure™ cybersecurity features and intelligent firmware —such as SFTP, SED support, and administrator access controls—that provide builtin measures for reliable and safe file access, transfer, and management.

Improve Hardware and Administrative Efficiency and Reduce Cost. Meet stringent worldwide requirements for recycling and environmental friendliness with a nimble system that minimizes environmental impact and maximizes cost savings through high performance.

Compare:


Compare Models
Exos X 2U12 Exos X 2U24 Exos X 5U84 Exos X CORVAULT
Max Capacity Per Enclosure 12 drives 24 drives 84 drives 106 drives
Expansion 10 Enclosures Max (Includes Master)
120 Drives Max
10 Enclosures Max (Includes Master)
240 Drives Max
4 Enclosures (Includes Master)
336 drives max
1 Enclosures
106 drives max
Form Factor 2U rack 2U rack 5U rack 4U rack
Total EBOD Chassis Up to 4 Up to 12 Up to 6 Up to 4
TB Per Chassis 1.9 PB
(* using 18 TB 3.5" SAS Drive)
216 TB
(* using 18TB 3.5” SAS Drives)
57.6 TB
(* using 2.4TB 2.5” SAS Drives)
1.5 PB
(* using 18 TB 3.5" SAS Drives)

Specifications:


Exos X 2U12 Specifications
Controller Performance Up to 12GB/s read throughput, 10GB/s write throughput,
725K IOPS (Random Read)
Advanced Software Features Auto-Tiering, Snapshots, Asynchronous Replication
Base Array Software Features Virtual pools, Thin provisioning, ADAPT, SSD read cache, Encryption
High-Availability Features elf-healing storage with Advanced Distributed Autonomic Protection Technology (ADAPT) and Autonomous Drive
Regeneration (ADR), redundant hot-swap controllers, drives, and fans, dual power cords, hot standby spare, automatic
failover, and multi-path support.
Device (Drive) Support SAS HDD, NL-SAS HDD, SAS SSD (2.5 or 3.5 Form Factors)
Data Protection Seagate ADAPT and RAID levels supported: 0, 1, 5, 6, 10
Self Healing Technology Autonomous Drive Regeneration (ADR)
System Maximum Expansion 2U12 Arrays, Up to 12 drives per enclosure, 10 enclosures maximum including the master, totaling 120 Drives
2U24 Arrays, Up to 24 drives per enclosure, 10 enclosures maximum including the master, totaling 240 Drives
5U84 Arrays, Up to 84 drives per enclosure, 4 enclosures maximum including the master, totaling 336 Drives
Physical 2U: Height: 87.9mm / 3.46 in, Width: 443mm / 17.44 in, Depth: 630mm / 24.8 in, Width w/ear mounts: 483mm / 19.01 in,
Weight: 17kg / 38 lb, Weight (with drives): 30kg / 66 lb
Hosts
External Ports 4 per Controller, 8 per System
Fibre Channel Models Host speed: 32/16 Gb/s Fibre Channel, Interface type: SFP+/SFP28
iSCSI Models Host speed: 10Gb/s, 25Gb/s iSCSI, Interface type: SFP+/SFP28
Ethernet 10GBASE-T (auto-negotiation to 1Gb)
SAS Models Host speed: 12Gb/s, 6Gb/s SAS, Interface type: HD Mini-SAS
System Configuration
System Memory 48GB per system
Volumes per System 1024
Cache Mirrored cache, Supercapacitor cache backup, Cache backup to flash – nonvolatile
Management
Interface Types 10/100/1000 Ethernet, Micro USB
Protocols Supported SNMP, SSL, SSH, SMTP, HTTP(S), Redfish
Management Consoles Web GUI, CLI
Management Software Seagate Systems storage management console, Remote diagnostics, Nondisruptive updates, Volume expansion
Power Requirements—AC Input
Input Power Requirements 100VAC-240VAC, 50Hz/60H
Max Power Output per PSU 580W
Environmental Requirements
Operating/Nonoperating Altitude ASHRAE A2, 5°C to 35°C (41°F to 95°F), derate 1°C/300m above 900m, 20°C/hr max rate of change / –40°C to 70°C (–40°F to 158°F)
Operating/Nonoperating Humidity –12°C DP and 8% RH to 21°C DP and 80% RH, max DP 21°C / 5% to 100% noncondensing
Operating/Nonoperating Shock 5 Gs, 11ms, half sine pulses / 15 Gs, 7ms, half sine pulses
Operating/Nonoperating Vibration 0.18 Gs rms 6Hz to 500Hz random / 0.5 (Z-axis) and 0.25 (X&Y-axis) Gs rms 6Hz to 200Hz random
Standards/Approvals

Views:

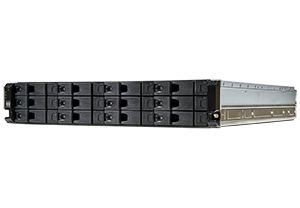

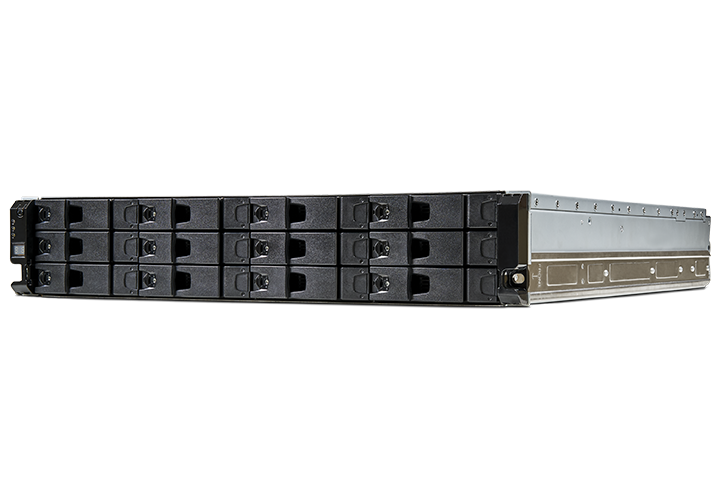

Angle View

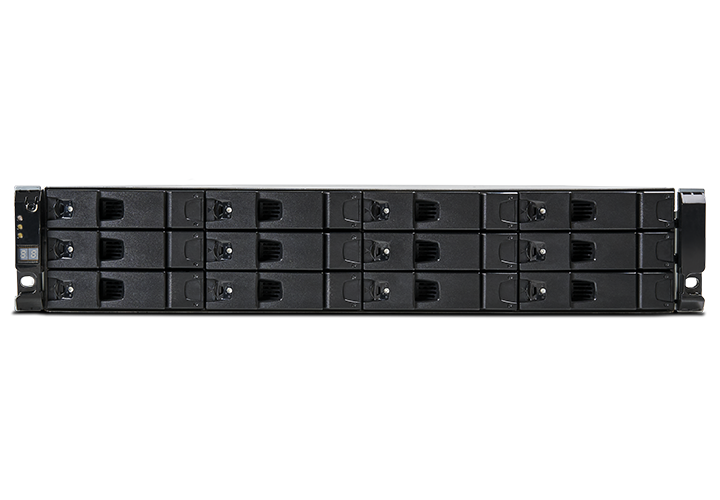

Front View

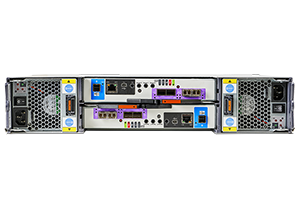

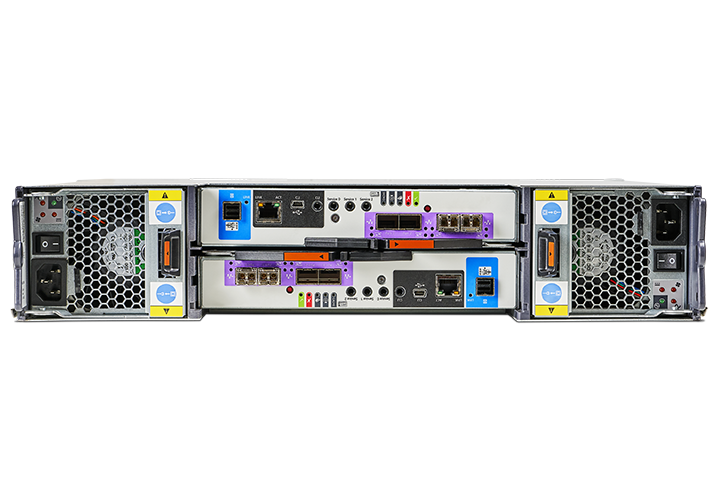

Rear View

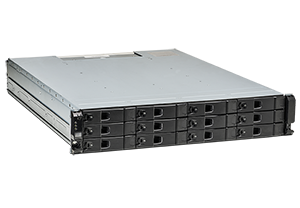

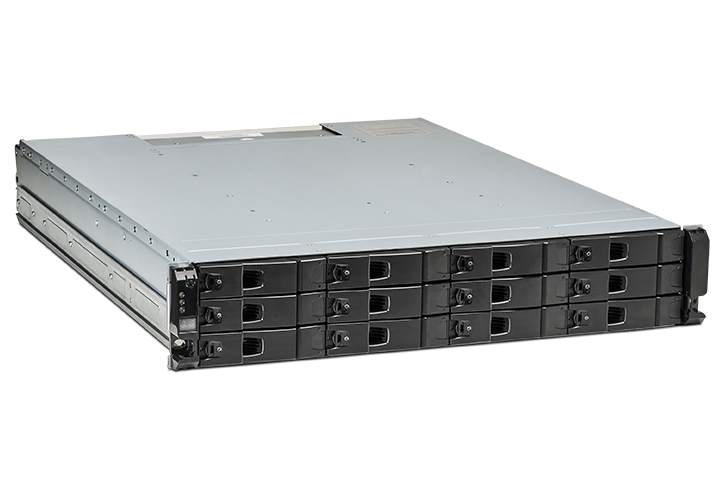

Right Angle View

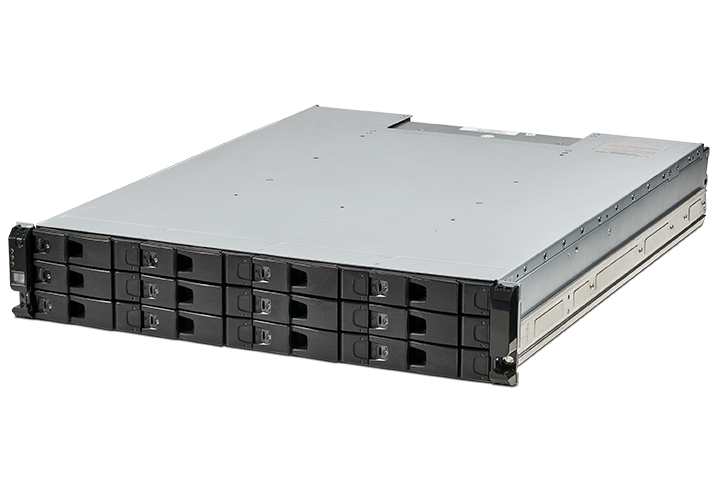

Left Angle View

Documentation:

Download the Seagate Exos X 2U12 Datasheet (.PDF)
