Seagate Exos 10E2400 2.5-Inch Internal 512e/4Kn SAS Enterprise Hard Drive
Perfect for mission-critical server and storage arrays


Seagate Exos 10E2400 2.5-Inch Internal 512e/4Kn SAS Enterprise Hard Drive

Seagate Products
Seagate Exos 10E2400 2.5-Inch Enterprise Hard Drives - 512e/4Kn SAS
Seagate Exos 10E2400 2.5-Inch Internal 512e/4Kn SAS Enterprise Hard Drive - 600 GB
FastFormat 512 Emulation/4K Native Format, 256MB Cache, 10000RPM, 12Gb/s SAS Interface, 5 Years Limited Warranty
#ST600MM0099
Our Price: $136.00
Seagate Exos 10E2400 2.5-Inch Internal 512e/4Kn SAS Enterprise Hard Drive - 1.2 TB
FastFormat 512 Emulation/4K Native Format, 256MB Cache, 10000RPM, 12Gb/s SAS Interface, 5 Years Limited Warranty
#ST1200MM0129
Our Price: $220.00
Seagate Exos 10E2400 2.5-Inch Internal 512e/4Kn SAS Enterprise Hard Drive - 1.8 TB
FastFormat 512 Emulation/4K Native Format, 256MB Cache, 10000RPM, 12Gb/s SAS Interface, 5 Years Limited Warranty
#ST1800MM0129
Our Price: $299.00
Seagate Exos 10E2400 2.5-Inch Internal 512e/4Kn SAS Enterprise Hard Drive - 2.4 TB
FastFormat 512 Emulation/4K Native Format, 256MB Cache, 10000RPM, 12Gb/s SAS Interface, 5 Years Limited Warranty
#ST2400MM0129
Our Price: $376.00
Seagate Exos 10E2400 2.5-Inch Enterprise Hard Drives - 512e/4Kn SAS SED
Seagate Exos 10E2400 2.5-Inch Internal 512e/4Kn SAS SED Enterprise Hard Drive - 600 GB
FastFormat 512 Emulation/4K Native Format, 256MB Cache, 10000RPM, 12Gb/s SAS Interface, Self-Encrypting Drive (SED), 5 Years Limited Warranty
#ST600MM0109
Our Price: $136.00
Seagate Exos 10E2400 2.5-Inch Internal 512e/4Kn SAS SED Enterprise Hard Drive - 1.2 TB
FastFormat 512 Emulation/4K Native Format, 256MB Cache, 10000RPM, 12Gb/s SAS Interface, Self-Encrypting Drive (SED), 5 Years Limited Warranty
#ST1200MM0139
Our Price: $220.00
Seagate Exos 10E2400 2.5-Inch Enterprise Hard Drives - 512e/4Kn SAS SED-FIPS
Seagate Exos 10E2400 2.5-Inch Internal 512e/4Kn SAS SED-FIPS Enterprise Hard Drive - 1.8 TB
FastFormat 512 Emulation/4K Native Format, 256MB Cache, 10000RPM, 12Gb/s SAS Interface, Self-Encrypting Drive FIPS (SED-FIPS), 5 Years Limited Warranty
#ST1800MM0149
Our Price: $314.00
Seagate Exos 10E2400 2.5-Inch Internal 512e/4Kn SAS SED-FIPS Enterprise Hard Drive - 2.4 TB
FastFormat 512 Emulation/4K Native Format, 256MB Cache, 10000RPM, 12Gb/s SAS Interface, Self-Encrypting Drive FIPS (SED-FIPS), 5 Years Limited Warranty
#ST2400MM0149
Our Price: $391.00



Exos EnterpriseOverview:

Trusted. Efficient. Versatile.

For everything Enterprise storage, there's Exos E—the safest and most powerful way to traverse the datasphere and harness its full potential. Always on and always working, the Exos E series of hard drives is loaded with advanced options for optimal performance, reliability, security and user-definable storage management. Built on generations of industry-defining innovation, Exos E is designed to work and perform consistently in enterprise-class workloads.

The Datasphere's Largest 10K Hard Drive

The Seagate Exos™ 10E2400 enterprise hard drives are the industry's fastest 10KRPM drives, with capacities up to 2.4TB in a 2.5-inch form factor, and intended for traditional data centers where density, power consumption and data integrity are paramount.

Scale up to 2.4TB quickly with Exos 10E2400—the industry's highest capacity hard drive for mission critical applications.* This 2.5-inch 10K-RPM hard drive optimizes data center real estate while keeping pace with growth.

  • Boost server capacity and performance
  • Enhanced Caching feature accelerates OLTP, VDI, web server and database applications
  • The Fast Format™ model can be addressed as 512 emulation and re-serviced to 4K native
  • Seagate Secure™ capabilities ensure authentic and trusted products from a secure supply chain, available with hardware-based encryption (SED), Instant Secure Erase (ISE), TAA compliance and FIPS 140-2
  • PowerChoice and RAID Rebuild help to improve storage management
  • Exos 10E300 drives, perfect for entry-level boot server applications, also available.

Best-Fit Applications

  • Mission critical servers and external storage arrays
  • Database and online transaction process (OLTP) applications
  • Power- and space-constrained data centers Green IT and drive-retirement cost reduction initiatives
  • Compliance and data security initiatives
  • Migration from 3.5-inch drive systems to next-generation technology
  • Cost-effective alternative to higherpriced performance solutions

* Formerly Enterprise Performance 10K HDD
** Compared to previous generation of hard drive

Features:

The Perfect Match of High Capacity and High PerformanceThe Perfect Match of High Capacity and High Performance

The high capacity and small 2.5-inch footprint of the Exos 10E2400 drive enables data centers to keep pace with data growth and optimize data center real estate. Exos 10E2400 delivers up to 2.4TB of highperformance data access for write-intensive applications. A single advanced format interface model lets you future-proof your storage infrastructure. The Seagate Enhanced Caching feature accelerates read and write I/O operations, preventing applications from slowing down under peak usage conditions. The latest 12Gb/s SAS interface provides improved scalability.

Maximize Storage Investments for the Long Haul

Exos 10E2400 offers Protection Information (PI) to help protect against data corruption,1 and Seagate PowerChoice™ technology for T10-compliant power management enables IT organizations to tailor systems for enhanced power consumption. RAID recovery is faster and safer with the help of the Seagate RAID Rebuild technology option.

Exos 10E300 Enterprise Hard Drives

The industry's fastest 10K-RPM drives are also available in 300GB capacity and are a perfect choice for entry-level boot server applications.

Seagate Secure

Industry-Leading Data Security Features

Seagate Secure™ SED and FIPS 140-2 government-grade models offer hardware-based security to help protect data-at-rest.2 With Instant Secure Erase, drive retirement is safe, fast and cost-effective. Seagate Secure models meet the NIST 800-88 media sanitization specification and support the Trusted Computer Group (TCG) standard.2



1 Protection Information (PI) feature requires PI-compliant host or controller support
2 Seagate Secure models not available in all countries. May require TCG-compliant host or controller support.

Specifications:


Specifications - FastFormat 512 Emulation/4K Native 2.4TB 1.8TB 1.2TB 600GB
Standard Model ST2400MM0129 ST1800MM0129 ST1200MM0129 ST600MM0099
Seagate Secure™ Model (SED)1 ST1200MM0139 ST600MM0109
Seagate Secure FIPS 140-2/Common Criteria Model1,2 ST2400MM0149 ST1800MM0149
Performance
Spindle Speed (RPM) 10000RPM 10000RPM 10000RPM 10000RPM
Average Latency (ms) 2.9 2.9 2.9 2.9
Sustained Transfer Rate (Outer to Inner Diameter, MB/s) 266 to 130 266 to 130 266 to 130 266 to 130
Cache, Multisegmented (MB) 256 256 256 256
Enhanced Caching Features
I/O Acceleration and Response Time Optimization Enabled Enabled Enabled Enabled
NAND Flash Type eMLC eMLC eMLC eMLC
NAND Flash Size 16GB 16GB 16GB 16GB
Intelligent NAND Endurance Management Yes Yes Yes Yes
Enterprise Features
Secure Download & Diagnostics (SD&D) and Instant Secure Erase Option Yes Yes Yes Yes
FastFormat (512e/4Kn AF Switching) Yes Yes Yes Yes
12Gb/s SAS Yes Yes Yes Yes
Configuration / Reliability
Disks/Heads 4/8 3/6 2/4 1/2
External Transfer Rate (MB/s) 1200 1200 1200 1200
Nonrecoverable Read Errors per Bits Read, Max 1 per 10E16 1 per 10E16 1 per 10E16 1 per 10E16
Annualized Failure Rate (AFR) 0.44% 0.44% 0.44% 0.44%
Limited Warranty (years)4 5 5 5 5
Power Management
Typical Op (A) +5V/+12V 0.47/0.52 0.44/0.42 0.46/0.41 0.46/0.40
Typical Operating (W) 8.6 7.2 7.2 7.1
Average Idle Power (W) 4.9 4.3 3.8 3.4
Performance Efficiency Index (Idle W/GB) 0.0020 0.0024 0.0032 0.0057
Environmental/Temperature
Ambient Temperature, Operating (C°) 5°C – 55°C 5°C – 55°C 5°C – 55°C 5°C – 55°C
Ambient Temperature, Nonoperating (C°) -40°C – 70°C -40°C – 70°C -40°C – 70°C -40°C – 70°C
Shock, Max. Operating: 11ms (Gs) 40 40 40 40
Shock, Max. Nonoperating: 2ms (Gs) 400 400 400 400
Vibration, Operating: <500Hz (Gs) 0.5 0.5 0.5 0.5
Vibration, Nonoperating: <500Hz (Gs) 3 3 3 3
Physical
Height (mm/in, max)3 0.591in/15.00mm 0.591in/15.00mm 0.591in/15.00mm 0.591in/15.00mm
Width (mm/in, max)3 2.750in/69.85mm 2.750in/69.85mm 2.750in/69.85mm 2.750in/69.85mm
Depth (mm/in, max)3 3.955in/100.45mm 3.955in/100.45mm 3.955in/100.45mm 3.955in/100.45mm
Weight (g/lb) 202g/0.445lb 218g/0.480lb 218g/0.480lb 215g/0.474lb
Carton Unit Quantity 40 40 40 40
Cartons per Pallet/Cartons per Layer 60 / 10 60 / 10 60 / 10 60 / 10

1 Not all drives may be available in all countries. Seagate Secure drives meet ISO/IEC 27040 and NIST 800-88 standards and may require use of TCG-compliant host or controller support.
2 FIPS 140-2 in review. See FIPS 140-2 Level 2 Certificate at http://csrc.nist.gov/groups/STM/cmvp/validation.html
3 These base deck dimensions conform to the Small Form Factor Standard (SFF-8201) found at www.sffcommittee.org.

Views:

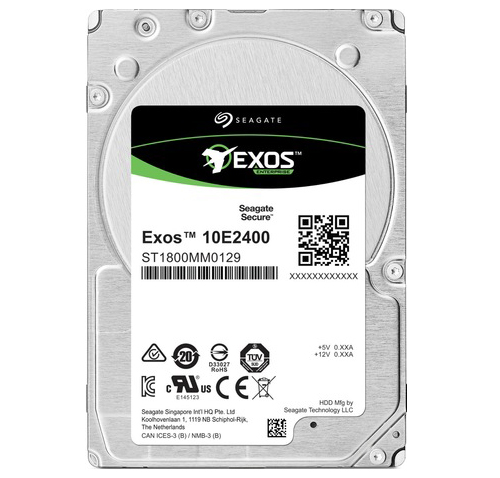

Front View

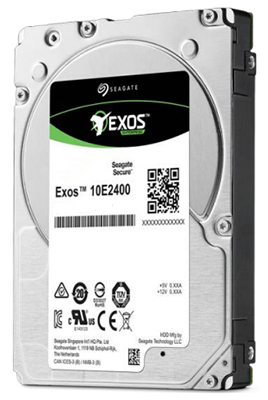

Left Angle View

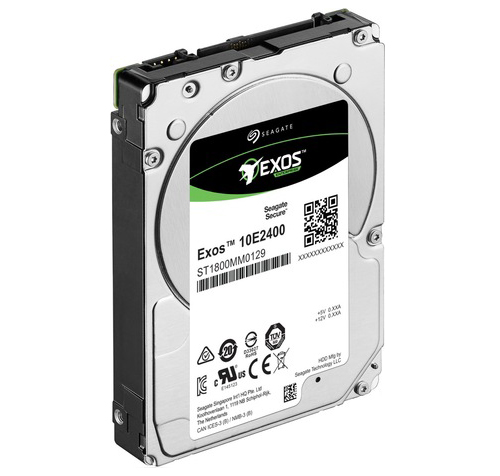

Right Angle View

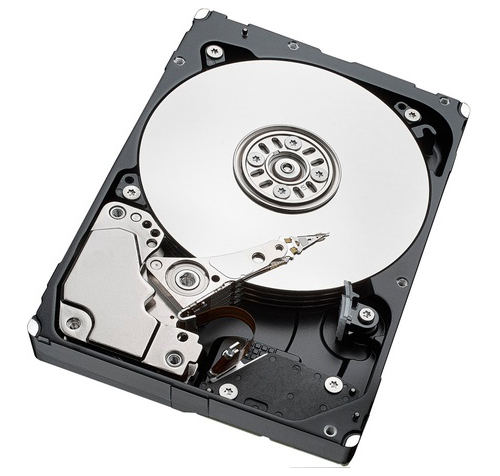

Inside View

Documentation:

Download the Seagate Exos 10E2400 2.5-Inch Enterprise HDD Datasheet (.PDF)
