Overview:
Lightspeed. Solid. Impressive.
Seagate Nytro Enterprise SSDs support the datasphere with blazing speed, enabling real-time business responsiveness, instantaneous data availability, and meaningful insights.
Tap the ever-growing potential of your data with the broadest portfolio of ultra-high-performance SSD and flash solutions. With maximum performance, low latency, and reduced power consumption, Nytro makes the datasphere dynamic.
The Seagate® Nytro® 3031 SAS SSD Series delivers high performance, industryleading security features, and a broad selection of capacity and endurance
offerings optimized for demanding enterprise applications and improved TCO.
Key Features and Benefits
- Industry-leading hardware-based data encryption
- Dual-port 12Gb/s SAS interface
- Broad selection of endurance and capacity options including 15TB
- Ultra-fast performance of up to 2200MB/s
Best-Fit Applications
- Server virtualization
- OLTP databases
- Software-defined storage
- All-flash arrays
- Caching and tiering
Features:
Enhanced Reliability, Data Protection, and Security
Seagate has decades of enterprise SAS expertise in mission-critical applications. The Nytro 3031 SSD Series helps deliver exceptional data protection and reliability with full internal and external data path protection (T10 DIF), advanced ECC algorithms, media lifecycle management, and other techniques for extending flash memory life. Advanced power-loss data protection helps maintain data integrity in the event of unexpected power interruptions. Advanced security levels to prevent unauthorized access to an SSD and safeguard stored data include Seagate Downloads & Diagnostics, TCG-compliant self-encrypting drive and government-grade FIPS/Common Criteria tamper-resistent drive.1
Consistent Performance up to 2200MB/s
The Nytro 3031 SSD Series delivers ultra-fast, consistent, and easily scalable performance that saturates dual 12Gb/s SAS bandwidth, providing an effective 24Gb/s interface with dual-port dynamic configurations. By removing the storage bottleneck, overall system and application responsiveness is significantly improved.
High-Capacity Solution With Multiple Endurance Offerings
Enterprise applications have different storage workload requirements. Databases or virtualization with a typically mixed read/write workload require the highest random read/write IOPS, ultra-low latency, and high endurance. Content streaming applications demand high sequential read throughput and high storage density at the lowest cost per gigabyte. The Nytro 3031 SSD Series offers a range of capacities up to 15TB in a 2.5-inch form factor to increase enterprise storage density in data centers. It also enables lower TCO by offering endurance categories to match cost and performance requirements of all enterprise workloads.
1 Self-encrypting drives (SED) are not available in all models or countries. May require TCG-compliant host or controller support.
Specifications:
| Specifications |

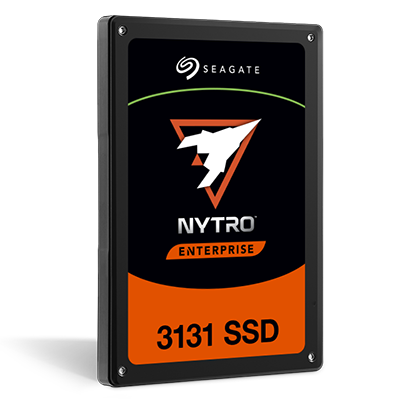

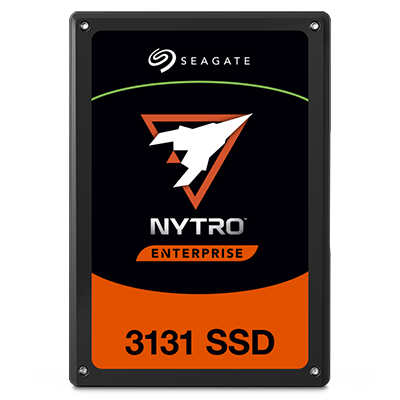

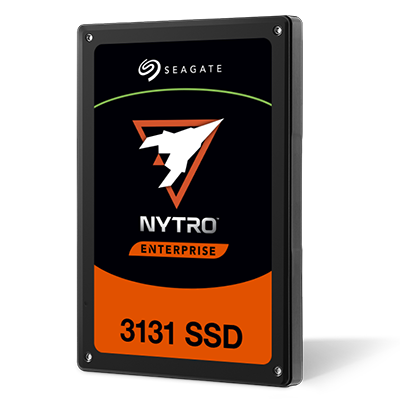

Nytro 3131 — Read Intensive |
| Capacity |
15.36TB |
7.68TB |
3.84TB |
| Standard Model Number |
XS15360TE70004 |
XS7680TE70004 |
XS3840TE70004 |
| Seagate Secure™ SED Model1 |
XS15360TE70014 |
XS7680SE70024 |
XS3840SE70024 |
| Seagate Secure FIPS 140-2/Common Criteria Mode1 |
XS15360TE70024 |
— |
— |
| Interface |
Dual 12Gb/s SAS |
Dual 12Gb/s SAS |
Dual 12Gb/s SAS |
| NAND Flash Type |
3D eTLC |
3D eTLC |
3D eTLC |
| Form Factor |
2.5 in × 15mm |
2.5 in × 15mm |
2.5 in × 15mm |
| Sequential Read (MB/s) Sustained, 128KB2 |
1050 |
1100 |
1100 |
| Sequential Write (MB/s) Sustained, 128KB2 |
1000 |
1000 |
1000 |
| Random Read (IOPS) Sustained, 4KB2 |
120,000 |
160,000 |
180,000 |
| Random Write (IOPS) Sustained, 4KB2 |
14,000 |
45,000 |
55,000 |
| Random 30% Write (IOPS) Sustained, 4KB2 |
40,000 |
120,000 |
130,000 |
| Sequential Read (MB/s) Sustained, 128KB2 |
2100 |
2000 |
2100 |
| Sequential Write (MB/s) Sustained, 128KB2 |
1000 |
1550 |
1550 |
| Random Read (IOPS) Sustained, 4KB2 |
150,000 |
230,000 |
230,000 |
| Random Write (IOPS) Sustained, 4KB2 |
14,000 |
45,000 |
55,000 |
| Random 30% Write (IOPS) Sustained, 4KB2 |
40,000 |
120,000 |
130,000 |
| Lifetime Endurance (Drive Writes per Day) |
0.7 |
0.8 |
0.8 |
| Total Bytes Written (TB) |
20,000 |
13,600 |
6800 |
| Nonrecoverable Read Errors per Bits Read |
1 per 10E17 |
1 per 10E17 |
1 per 10E17 |
| Annualized Failure Rate (AFR) |
0.35% |
0.35% |
0.35% |
| Limited Warranty (years) |
5 |
5 |
5 |
| +5/+12V Max Start Current (A) |
0.80/0.21 |
0.80/0.21 |
0.80/0.21 |
| Average Idle Power (W) |
4.4 |
4.4 |
4.4 |
| Height (mm/in, max)3 |
15.00mm/0.591in |
15.00mm/0.591in |
15.00mm/0.591in |
| Width (mm/in, max)3 |
70.10mm/2.760in |
70.10mm/2.760in |
70.10mm/2.760in |
| Depth (mm/in, max)3 |
100.45mm/3.955in |
100.45mm/3.955in |
100.45mm/3.955in |
| Weight (g/lb) |
165g/0.364lb |
165g/0.364lb |
165g/0.364lb |
| Carton Unit Quantity |
10 |
10 |
10 |
| Cartons per Pallet/Cartons per Layer |
90/9 |
90/9 |
90/9 |
1 Not all drives may be available in all countries. Seagate Secure drives meet ISO/IEC 27040 and NIST 800-88 standards and may require use of TCG-compliant host or controller support.
2 All performance measured at queue depth of 32 per PHY at beginning of life. System application performance may vary based on SAS host and prior system workload.
3 These base deck dimensions conform to the Small Form Factor Standard (SFF-8201) found at www.sffcommittee.org. For connector-related dimensions, see SFF-8223 (SAS models).
