Seagate SkyHawk 3.5-Inch Internal Surveillance Hard Drive
Perfect for SMB-surveillance DVR and NVR

Overview:

Smart. Safe. Secure. Surveillance-Optimized Storage

Seagate SkyHawk™ leverages Seagate's extensive experience in designing drives purpose-built for surveillance applications.

Key Advantages

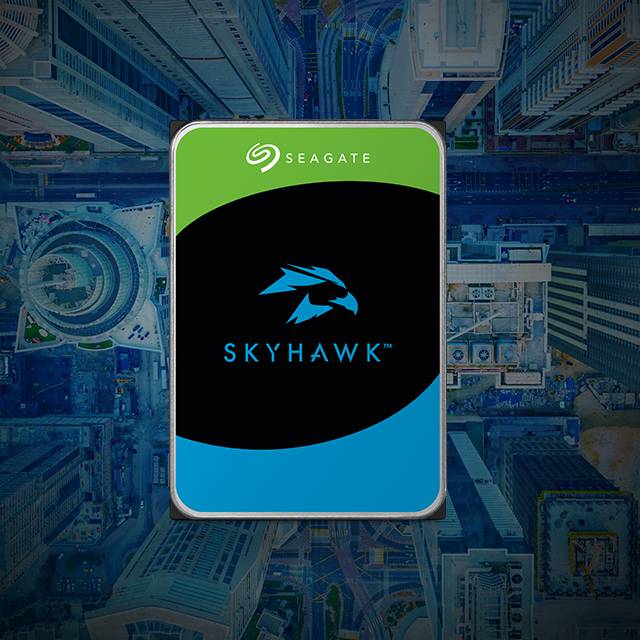

• ImagePerfect™ firmware is designed to ensure seamless video footage capture in 24×7 surveillance workloads¹ that record video from 64 HD cameras.
• SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options.² Included is RAID RapidRebuild™, which provides 3× faster volume rebuilds over traditional RAID rebuilds.
• RV sensors built in allow drives to maintain performance in multi-bay systems, giving customers the flexibility to scale their systems when more storage is needed.
• ATA streaming support enables recordings from up to 64 HD cameras for smooth, uninterrupted footage.
• Up to 14TB or over 9345 hours³ of HD video storage support an increased number of HD cameras and allows longer data retention periods.
• 1M hours MTBF, 3-year limited warranty⁴ represents an improved total cost of ownership (TCO) with reduced maintenance costs.
• Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions. Tarnish-resistant components help protect drive from environmental elements, increasing field reliability.
• Unparalleled data protection with an optional 2-year Rescue Data Recovery Services plan, providing access to Seagate's secure labs with industry-leading data recovery success rates.

Best-Fit Applications

• Network video recorders (NVR)
• Embedded surveillance DVRs (SDVR)
• Hybrid surveillance DVRs
• Surveillance DVRs

¹ SkyHawk surveillance drives are designed for always-on workloads of 180TB/year. For higher transaction workloads, see Seagate’s enterprise-class drive offerings.
² Contact your Seagate sales representative for further information.
³ Calculated based on H.264, 1M pixels, medium quality, 15FPS, 1 camera, and 24 hours of recording/day.
⁴ SkyHawk surveillance drives are designed to operate under ambient operating temperatures of 0°C to 60°C and normal environments.

Features:

SkyHawk Health Management:

Actively protect your surveillance footage.

Seagate SkyHawk™ Health Management (SHM) is designed for Hikvision systems with NVR 4.0 OS, and goes beyond industry standard S.M.A.R.T. testing to provide in-depth analysis with prevention and intervention in mind. SHM analytic algorithms analyze various drive parameters and provide users with firsthand drive health information. SHM software works with Skyhawk and SkyHawk AI 4TB and above.

• Prevention
  Software monitors environmental and usage conditions, and recommends preventative actions if necessary.
• Intervention
  Adaptive algorithms analyze hundreds of critical drive health parameters related to overall performance and reliability.
• Recovery
  Access to optional Seagate Rescue Data Recovery Services ensures a secure environment in the event of failure.

The Combined Advantage of Seagate and Hikvision is Protection

Delivering Best-in-class NVR-optimized hard drives built for surveillance

² Based on drive specs.
³ Overseas markets only.

Specifications:

Specifications	14TB	12TB	10TB	8TB	6TB

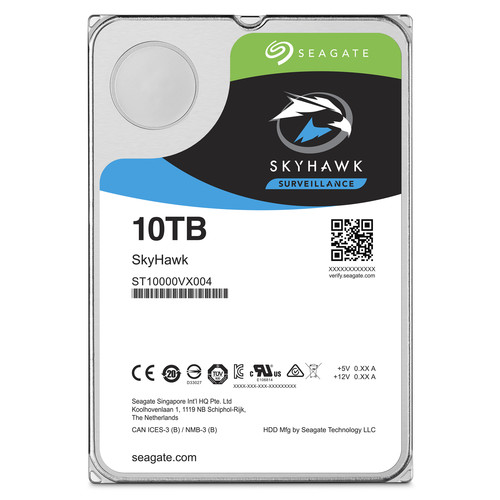

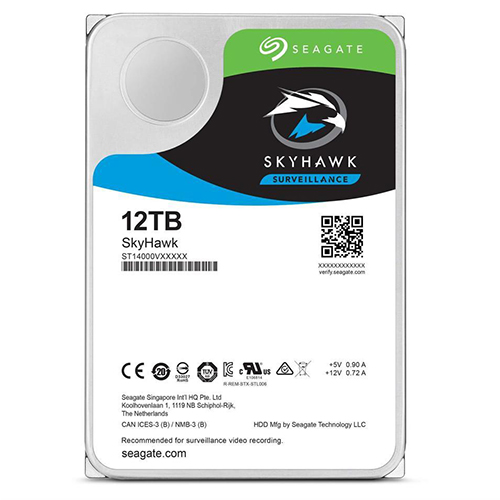

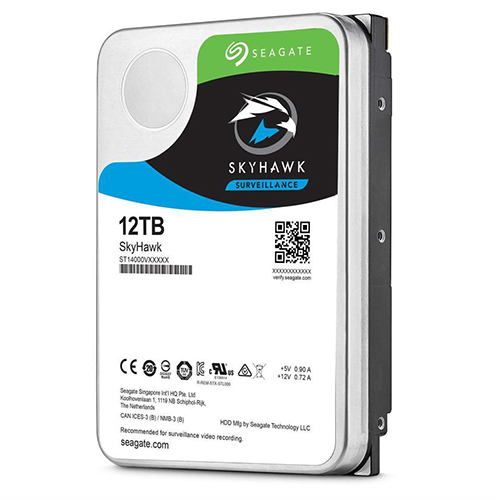

Standard Model Number1	ST14000VX0008	ST12000VX0008	ST10000VX0008 ST10000VX0004	ST8000VX0022	ST6000VX001 ST6000VX0023
SkyHawk™ Health Management Included	Yes	Yes	Yes	Yes	Yes
Interface	SATA 6Gb/s	SATA 6Gb/s	SATA 6Gb/s	SATA 6Gb/s	SATA 6Gb/s
Features and Performance
Drive Bays Supported	Up to 16	Up to 16	Up to 16	Up to 16	Up to 16
Cameras Supported	Up to 64	Up to 64	Up to 64	Up to 64	Up to 64
RV Sensors	Yes	Yes	Yes	Yes	Yes
Max. Sustained Transfer Rate OD (MB/s)	210MB/s	210MB/s	210MB/s	210MB/s	180MB/s (ST6000VX001) 195MB/s (ST6000VX0023)
Cache (MB)	256	256	256	256	256
Reliability/Data Integrity
Tarnish Resistant	Yes	Yes	Yes	Yes	Yes
Load/Unload Cycles	300,000	300,000	300,000	300,000	300,000
Nonrecoverable Read Errors per Bits Read, Max	1 per 10E15	1 per 10E15	1 per 10E15	1 per 10E15	1 per 10E15
Power-On Hours per Year (24×7)	8760	8760	8760	8760	8760
Workload Rate Limit (WRL)2	180	180	180	180	180
MTBF	1,000,000hr	1,000,000hr	1,000,000hr	1,000,000hr	1,000,000hr
Limited Warranty (years)3	3	3	3	3	3
Power Management
Startup Current, Typical (12V, A)	1.8	1.8	1.8	2	1.8 (ST6000VX001) 2 (ST6000VX0023)
Average Operating Power (W)	6.9W	6.9W	6.9W (ST10000VX0008) 6.8W (ST10000VX0004)	9W	5W (ST6000VX001) 9W (ST6000VX0023)
Idle Average (W)	4.9W	4.9W	4.9W (ST10000VX0008) 4.4W (ST10000VX0004)	7.6W	3.4W (ST6000VX001) 7.2W (ST6000VX0023)
Standby Mode/Sleep Mode, Typical (W)	1.2/1.2	1.2/1.2	1.2/1.2 (ST10000VX0008) 0.8/0.8 (ST10000VX0004)	0.6/0.6	0.25/0.25 (ST6000VX001) 0.6/0.6 (ST6000VX0023)
Voltage Tolerance (5V)	±5%	±5%	±5%	±5%	±5%
Voltage Tolerance (12V)	±10%	±10%	±10%	±10%	±10%
Environmental/Temperature
Operating (ambient, min °C)	5°C	5°C	5°C	5°C	5°C
Operating (drive case, max °C)4	70°C	70°C	70°C	70°C	70°C
Nonoperating (ambient, min °C)	-40°C	-40°C	-40°C	-40°C	-40°C
Nonoperating (ambient, max °C)	70°C	70°C	70°C	70°C	70°C
Physical
Height (mm/in)	26.11mm/1.028in	26.11mm/1.028in	26.11mm/1.028in	26.11mm/1.028in	26.11mm/1.028in
Width (mm/in, max)	101.85mm/4.01in	101.85mm/4.01in	101.85mm/4.01in	101.85mm/4.01in	101.85mm/4.01in
Depth (mm/in, max)	146.99mm/5.787in	146.99mm/5.787in	146.99mm/5.787in	146.99mm/5.787in	146.99mm/5.787in
Weight (g/lb)	690g/1.521lb	690g/1.521lb	690g/1.521lb (ST10000VX0008) 650g/1.433lb (ST10000VX0004)	780g/1.72lb	610g/1.345lb (ST6000VX001) 705g/1.55lb (ST6000VX0023)
Carton Unit Quantity	20	20	20	20	20
Cartons per Pallet/Cartons per Layer	40 / 8	40 / 8	40 / 8	40 / 8	40 / 8
Specifications	4TB	3TB	2TB	1TB

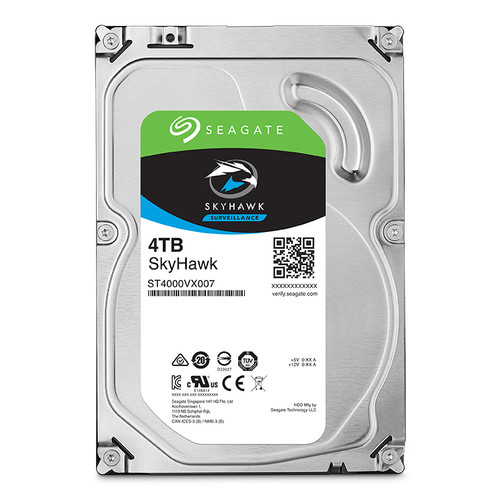

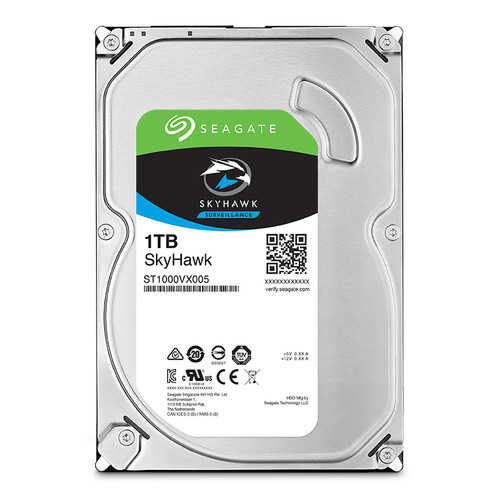

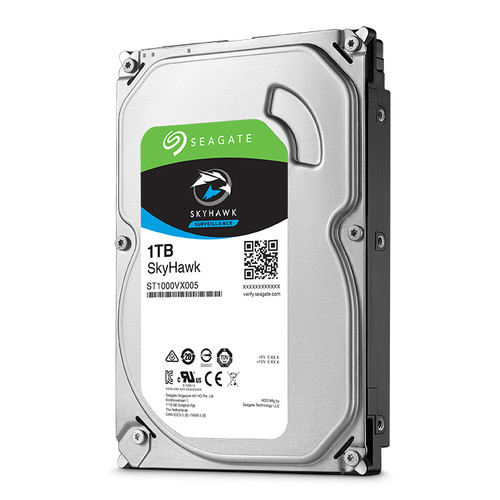

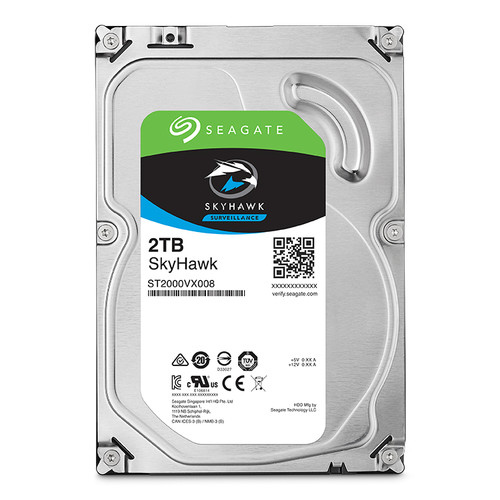

Standard Model Number1	ST4000VX007	ST3000VX009 ST3000VX010	ST2000VX008	ST1000VX005
SkyHawk™ Health Management Included	Yes	—	—	—
Interface	SATA 6Gb/s	SATA 6Gb/s	SATA 6Gb/s	SATA 6Gb/s
Features and Performance
Drive Bays Supported	Up to 16	Up to 8	Up to 8	Up to 8
Cameras Supported	Up to 64	Up to 64	Up to 64	Up to 64
RV Sensors	Yes	—	—	—
Max. Sustained Transfer Rate OD (MB/s)	190MB/s	180MB/s (ST3000VX009) 190MB/s (ST3000VX010)	180MB/s	180MB/s
Cache (MB)	64	256 (ST3000VX009) 64 (ST3000VX010)	64	64
Reliability/Data Integrity
Tarnish Resistant	Yes	Yes	Yes	Yes
Load/Unload Cycles	300,000	300,000	300,000	—
Nonrecoverable Read Errors per Bits Read, Max	1 per 10E15	1 per 10E15	1 per 10E15	1 per 10E15
Power-On Hours per Year (24×7)	8760	8760	8760	8760
Workload Rate Limit (WRL)2	180	180	180	180
MTBF	1,000,000hr	1,000,000hr	1,000,000hr	1,000,000hr
Limited Warranty (years)3	3	3	3	3
Power Management
Startup Current, Typical (12V, A)	1.8	1.8	1.8	2
Average Operating Power (W)	5.5W	3.5W (ST3000VX009) 5.6W (ST3000VX010)	5.6W	5.6W
Idle Average (W)	3.2W	2.5W (ST3000VX009) 4.0W (ST3000VX010)	4.0W	4.0W
Standby Mode/Sleep Mode, Typical (W)	0.25/0.25	0.25/0.25 (ST3000VX009) 0.5/0.5 (ST3000VX010)	0.5/0.5	0.5/0.5
Voltage Tolerance (5V)	±5%	±5%	±5%	±5%
Voltage Tolerance (12V)	±10%	±10%	±10%	±10%
Environmental/Temperature
Operating (ambient, min °C)	5°C	5°C	5°C	5°C
Operating (drive case, max °C)4	70°C	70°C	70°C	70°C
Nonoperating (ambient, min °C)	-40°C	-40°C	-40°C	-40°C
Nonoperating (ambient, max °C)	70°C	70°C	70°C	70°C
Physical
Height (mm/in)	26.11mm/1.028in	20.20mm/0.795in (ST3000VX009) 26.11mm/1.028in (ST3000VX010)	26.11mm/1.028in	20.20mm/0.795in
Width (mm/in, max)	101.85mm/4.01in	101.85mm/4.01in	101.85mm/4.01in	101.85mm/4.01in
Depth (mm/in, max)	146.99mm/5.787in	146.99mm/5.787in	146.99mm/5.787in	146.99mm/5.787in
Weight (g/lb)	635g/1.40lb	490g/1.08lb (ST3000VX009) 610g/1.35lb (ST3000VX010)	610g/1.345lb	415g/0.915lb
Carton Unit Quantity	20	20	20	20
Cartons per Pallet/Cartons per Layer	40 / 8	40 / 8	40 / 8	40 / 8

¹ Later 6TB and 3TB models are ST6000VX001 and ST3000VX009.
² SkyHawk surveillance drives are designed for always-on workloads of 180TB/year. For higher transaction workloads, see Seagate’s enterprise-class drive offerings.
³ Extended warranty options available. Consult your distributor for details.
⁴ Seagate does not recommend operating at sustained extreme temperatures. Operating at higher temperatures will reduce useful life of the products.

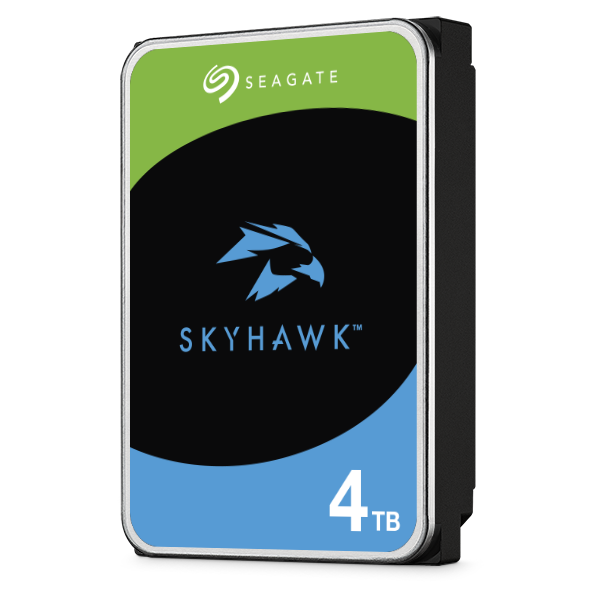

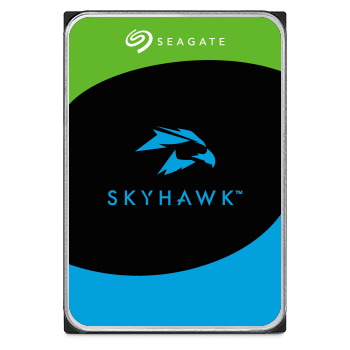

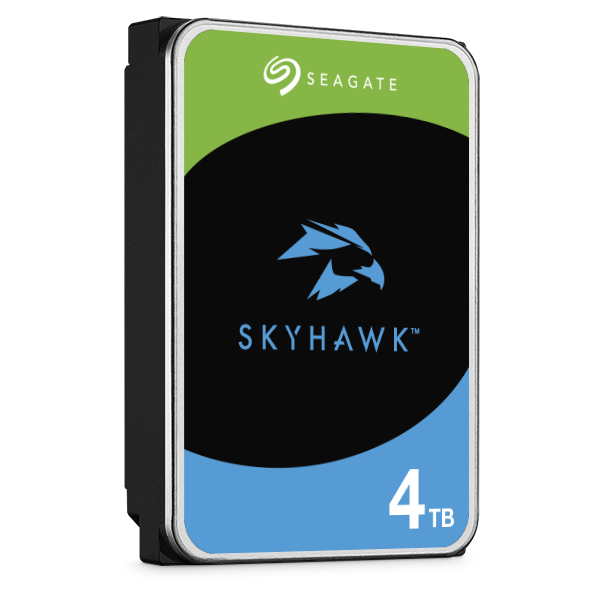

Views:

---

---

---

Documentation:

Download the Seagate SkyHawk 3.5-Inch Surveillance HDD Datasheet (.PDF)
