Seagate Exos AP 4U100
Perfect for private clouds, high-density use cases and high-throughput use cases


Seagate Exos AP 4U100

Seagate Products
Seagate Exos AP Series Systems
Seagate Exos AP 4U100 100 High Capacity Drive Bays Storage
Contact us for Pricing!

Click here to jump to more pricing!

Exos EnterpriseOverview:

Exos AP Series — Compute & Storage

Seagate Exos AP 4U100 has the datasphere’s highest density of compute and storage in a single system.

Modular Systems for Capacity

From reliability to intelligence, the Exos systems provide unfettered access to data and industry-first economics for lower TCO and highest capacity.

Application Platforms

Servers and storage in ultra compact, dense systems that don’t sacrifice capacity for performance.

Product Highlights

  • Maximize your investment with this low-TCO compute and high-density integrated storage system
  • Retain valuable space with a 4U rack height that offers 96 × 3.5-in drive and 4 × 2.5-in drive capacity
  • Leverage dual Intel Xeon Scalable CPUs on each controller
  • Deliver maximum data throughput with two 12G SAS redundant application controllers
  • Future-proof your data center with support for current and nextgeneration HDDs and SSDs
  • Enable full drive performance in all slots with built-in technology to minimize drive performance degradation

Capacity

Capacity
Limitless data growth

Scalability

Scalability
Industry-first economics

Security

Security
Keep your data safe


Features:

Reduce Data Center Footprint

The growth of the private cloud means enterprises of all sizes need storage solutions. Dedicated space is often limited and expensive. With the Exos AP 4U100, the data center footprint is dramatically reduced, saving real estate investment and reducing heating and cooling costs. Other storage center racks must house both storage and servers. This system’s unique design and precision engineering allow both the intelligent compute of a server and a whopping 1.6PB1 of data storage.

Deliver Reliable Building Blocks for the Modern Cloud

Integrated appliances are more reliable and less costly due to fewer cables and connectors, typically the lowest MTBF components in the system. The Exos AP 4U100 future-proofs our modular data center systems for even greater density with next-generation Seagate media. Upgrading a system is as simple as hot-swapping drives. And because it shares design and multiple FRUs with Exos E 4U106, any data center can easily create an entire serviceable ecosystem. Four optional 4 × 2.5-in carriers give users SSD performance along with HDD capacity.

Ensure Applications Have Access to Critical Data

Safeguard your data with dual Intel Xeon Scalable CPUs in two controllers per Exos AP 4U100, providing powerful redundancy and multi-node capability. Built-in technology minimizes drive performance degradation due to quantity of drives and cooling elements. The Seagate AcousticShield™ noise attenuator drives performance for both the current generation of Seagate media and future technologies.

Reduce Cost and Resources With Energy-Efficient Features

This enclosure is suited for both high-capacity and transaction-dependent environments that demand tighter Service Level Agreement (SLA) requirements and need faster response times for optimal data availability. It meets stringent worldwide requirements for recycling and environmental friendliness, and can help you minimize environmental impact and recognize cost savings through high performance while reducing power consumption with 80 PLUS Platinum certified power supplies and adaptive cooling technology.

Build In Security at the Foundation of the Data Life Cycle

Protect your most valuable business assets with compatible Seagate Secure™ SSDs and hard drives.

1 When using Seagate 16TB drives

Specifications:


Exos AP 4U100 Specifications
Controller and Quantity One or two AP-RH-1 controllers, redundancy optional
CPU Type and Quantity Per Controller One or two Intel Xeon Scalable processors, bronze/silver/gold up to 125W TDP1
Memory Type and Quantity Per Controller up to 12 standard height DDR4-2666 dimm slots
Internal Boot Drive Per Controller Two M.2 SATA or NVMe devices
Onboard I/O Four 10GbE SFP+ ports (Intel X722 with iWarp RDMA), One 1GbE management port
PCIE Expansion Two low-profile, half-length PCIe gen 3 ×16 slots
Storage Infrastructure One storage personality module with a single or dual Broadcom SAS3616 "Mercator"
Inter-Controller Link ×8 PCIe
Chassis Specifications
Redundant Path Yes (SAS only)
Host/Expansion I/O Ports Four ×4 mini-SAS HD Expansion I/O connectors
Management/Status Reporting Out-of-band CLI via management port and in-band SCSI enclosure services
Device Support 12Gb/s SAS drives and 6Gb/s SATA
Max Drives Per Enclsoure 96 × 3.5-in LFF drives and 4 × 2.5-in SFF drives (for a full list of supported drives, please contact your account or sales manager)
Hot-Swappable Components HDDs and SSDs (in chassis data slots), power supply units (PSU), cooling modules, side-plane expanders, and controllers
Physical Height (with top cover): 176.4mm / 6.95 in
Width (without ears and rails): 441mm / 17.4 in
Depth (with handles, without cables): 1139mm / 44.8 in
Weight 64kg / 140 lb | Weight (with drives): 150kg / 330 lb
Power Requirements
Input Power Requirements 200V-240V AC 50Hz/60Hz
Max Power Output per PSU 3.2kW
Environmental Requirements
Operating/Nonoperating Altitude up to 3000m (10,000 ft)
Operating/Nonoperating Temperature 5°C to 35°C (de-rated by 1°C per 300m above 900m) / –40°C to 70°C (max rate of change: 20°C )
Operating/Nonoperating Humidity 10% to 80% noncondensing / 5% to 100% noncondensing
Operating/Nonoperating Shock2 3 Gs, 11ms (per axis) / 15 Gs, 7ms, 10 shock pulse
Operating/Nonoperating Vibration3 0.14 Gs rms, 5Hz to 500Hz, 30 min per axis / 0.54 Gs rms (in Z) 0.25 Gs rms (in X & Y), 6Hz to 200Hz
Standards/Approvals
Safety Certifications UL 60950-1 (United States)
CAN/CSA-C22.2 No. 60950-1- 07 (Canada)
EN 60950-1 (European Union)
IEC 60950-1 (International)
CCC (China PRC – CCC Power Supplies)
BIS (India – BIS Power Supplies)
Emissions (EMC) FCC CFR 47 Part 15 Subpart B Class A (United States)
ICES/NMB-003 Class A (Canada)
EN 55032 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3 (Europe)
AS/NZS CISPR 32 Class A (Australia/New Zealand)
VCCI Class A (Japan)
KN 32 Class A/KN 35 (S. Korea)
CNS 13438 Class A (Taiwan)
Environmental Standards The RoHS Directive (2011/65/EU)
The WEEE Directive (2012/19/EU)
The REACH Directive (EC/1907/2006)
Standard Marks/Approvals Australia/New Zealand (RCM), Canada (cUL/ICES/NMB-003 Class A), China (CCC –PSU only), European Union (CE), Japan (VCCI), South Korea (KC), Taiwan (BSMI), United States (FCC/UL)
Country Approvals United States, Canada, European Union (EU), Australia/New Zealand, Japan, China (PRC), Russia, Mexico, Germany, South Korea, Taiwan, India

1 Standard CPU power is 105W, but with specific configurations, a 125W can be achieved. Consult your Seagate technical team member for details on this topic.
2 Nonoperating shock measured with 2 shocks per axis X, Y in positive and negative direction and 2 shocks in positive Z axis
3 Nonoperating vibration measured with chassis mounted on test fixture for 4 hrs in each axis (ISTA 3E)

Views:

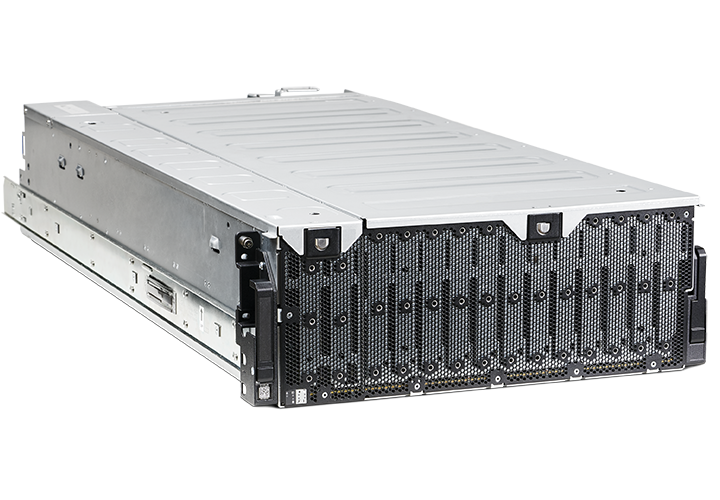

Left Angle View

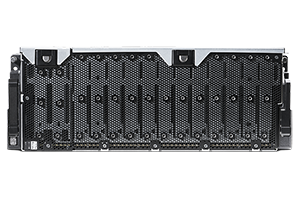

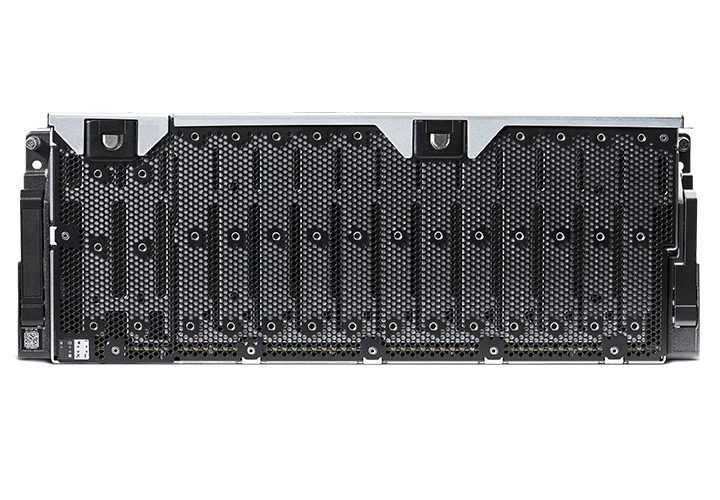

Front View

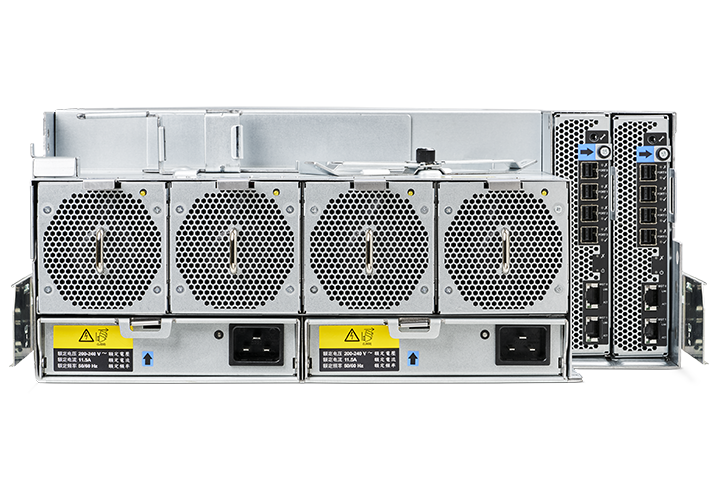

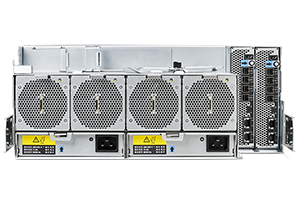

Rear View

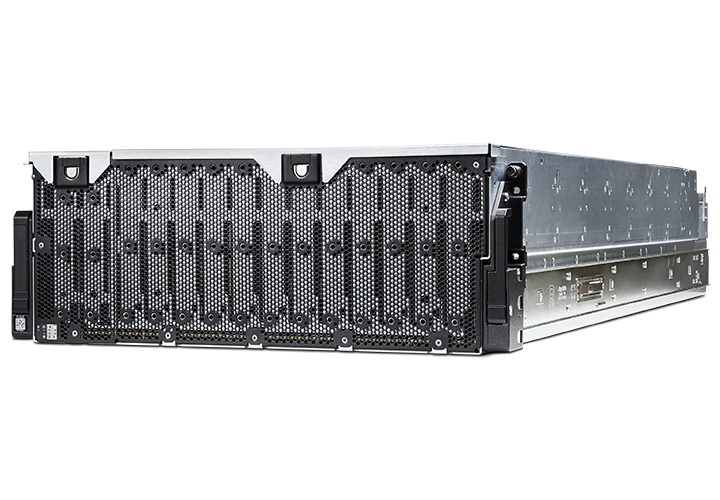

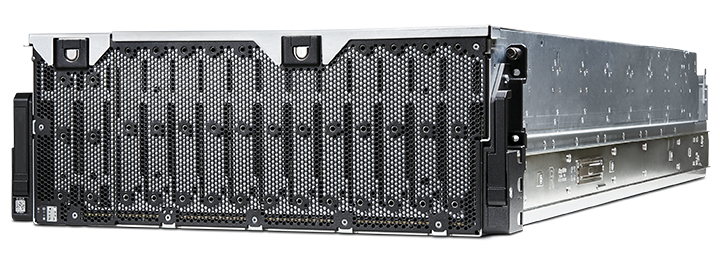

Right Angle View

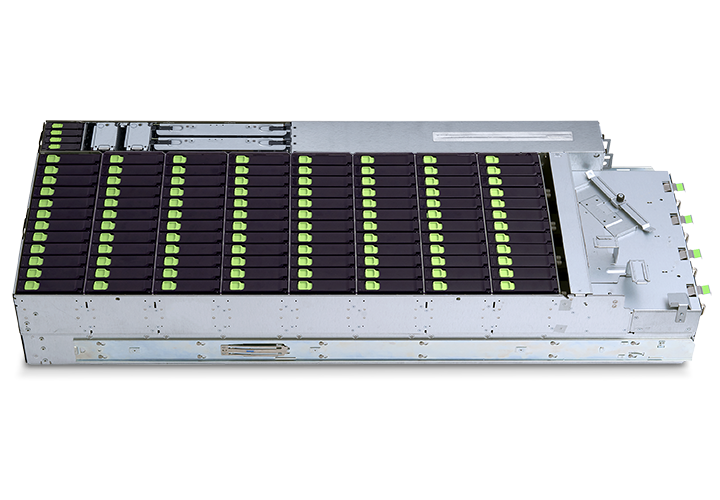

Top Cover-Off View

Documentation:

Download the Seagate Exos AP 4U100 Datasheet (.PDF)
