Nytro EnterpriseOverview:

Nytro AP Series — Compute & Storage

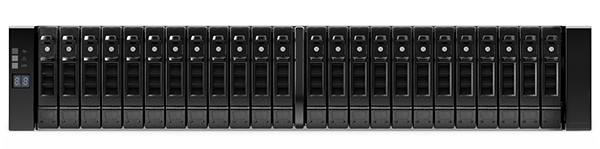

Seagate® Nytro® AP 2U24 is the cost-effective, scalable 2U storage rack for high-bandwidth, low-latency tasks, featuring dual 12Gb/s SAS controllers.

Best-Fit Applications

  • Small and mid-sized deployments
  • High-bandwidth, low-latency environments
  • 4K and 8K workflows, medical offices, surveillance
  • Image sequence processing
  • Hybrid tiered systems

Key Advantages:

Harness fast data transfers with a 12Gb/s SAS interface paired with Seagate Nytro SSD drives.


Gain more space and performance while lowering TCO with a 2U rack storing up to 24 drives.


Build an efficient compute and storage environment with a fast SSD in a compact form factor.


Select controller performance and high-availability options to suit budget and/or software requirements with dual ×86 controllers.


Support virtually any current or future network infrastructure with 10GbE, 25GbE, and 100GbE I/O options.


Dual 12Gb/s SAS controllers are compliant with the latest architecture standards for maximum data throughput.


Tap into increased reliability and business/operations continuity with fully redundant, hotswappable components.


Right-size your configuration by purchasing only what you need.


Shares design and multiple FRUs with various Exos® products for modular, easy-to-service AP and EBOD ecosystems.


Expand your storage as your business grows with up to 8 chassis.

Specifications:


Nytro AP 2U24 Specifications
Controller Specifications
Controller and Quantity One or two AP-LS-1 controllers, redundancy optional
CPU Type and Quantity Per Controller One Intel® Xeon® E5 processors v4 family up to 85W TDP
Memory Type and Quantity Per Controller up to 4 standard-height DDR4-2400 dimm slots
Internal Boot Drive Per Controller Two M.2 SATA devices
Onboard I/O Two 10GbE RJ45 ports (Intel X540); two 1GbE RJ45 ports (Intel i350-AM4); one 1GbE RJ45 port (management from BMC)
PCIE Expansion One low-profile, half-length PCIe gen 3 ×16 slot; one Seagate AP-LS-1 custom form-factor PCIe gen 3 × 16 slot
Storage Infrastructure One 12Gb/s SAS controller with optional turbo mode adding second SAS controller
Host/Expansion I/O Ports Two ×4 mini-SAS HD 12G expansion I/O connectors
Inter-Controller Link ×16 PCIe
Chassis Specifications
Redundant Path Yes (SAS only)
Management/Status Reporting Out-of-band CLI via management port and in-band SCSI enclosure services
Device Support 12Gb/s SAS drives and 6Gb/s SATA drives
Max Drives Per Enclsoure up to 24 × 2.5-in SFF drives (for a full list of supported drives, please contact your account or sales manager)
Hot-Swappable Components SSDs (in chassis data slots), power supply and cooling modules units (PCU), controllers
Physical Height: 87.9mm / 3.46 in
Width: 443mm / 17.44 in
Depth: 630mm / 24.8 in
Width (w/ear mounts): 483mm / 19.01 in
Weight: 17kg / 38 lb | Weight (with drives): 30kg / 66 lb
Power Requirements — AC Input
Input Power Requirements 100V-240V AC 60Hz/50Hz
Max Power Output per PSU 764W
Environmental/Temperature Ranges
Operating/Nonoperating Temperature ASHRAE A2, 5°C to 35°C (41°F to 95°F), derate 1°C/300m above 900m, 20°C/hr max rate of change / –40°C to 70°C (–40°F to 158°F)
Operating/Nonoperating Humidity –12°C DP minimum, 8% RH to 85% RH, max DP 21°C / 5% to 100% noncondensing
Operating/Nonoperating Shock 5 Gs, 10ms, half sine pulses / 15 Gs, 10ms, half sine pulses
Operating/Nonoperating Vibration 0.21 Gs rms, 5Hz to 500Hz random / 1.04 Gs rms, 2Hz to 200Hz random
Standards/Approvals
Safety Certifications UL 60950-1/UL62368-1 ED2 (United States) | CAN/CSA-C22.2 No.60950-1-07/No.62368-1-14, 2nd Ed (Canada) | EN 60950- 1/EN62368-1 (European Union) | IEC 60950-1/IEC 62368-1 Ed2 (International) | CCC (China PRC – CCC Power Supplies) | BIS (India – BIS Power Supplies)
Ecodesign Commission Regulation (EU) 2019/424 (Directive 2009/125/EC)
Emissions (EMC) FCC CFR 47 Part 15 Subpart B Class A (United States) | ICES/NMB-003 Class A (Canada) | EN 55032 Class A | AS/NZS CISPR 32 Class A (Australia/New Zealand) | VCCI Class A (Japan) | KN 32 Class A | CNS 13438 Class A (Taiwan)
Harmonics EN 61000-3-2 (EU)
Flicker EN 61000-3-3 (EU)
Immunity EN 55024 (EU) | KN 24/KN 35 (S. Korea) | CISPR 24/CISPR35
Environmental Standards The RoHS Directive (2011/65/EU) | The WEEE Directive (2012/19/EU) | The REACH Directive (EC/1907/2006) | The Batteries Directive (2006/66/EC)
Standard Marks/Approvals United States (FCC/UL)

Documentation:

Download the Seagate Nytro AP 2U24 Datasheet (.PDF)
