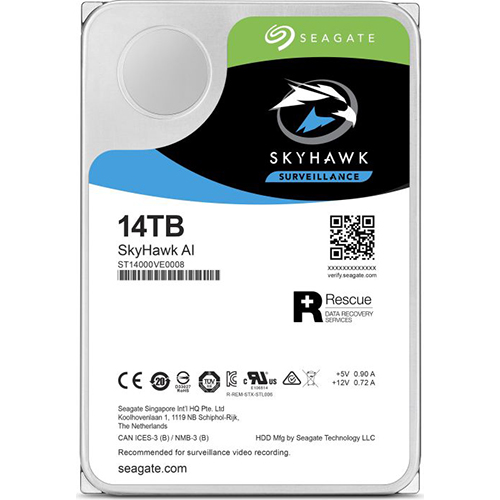

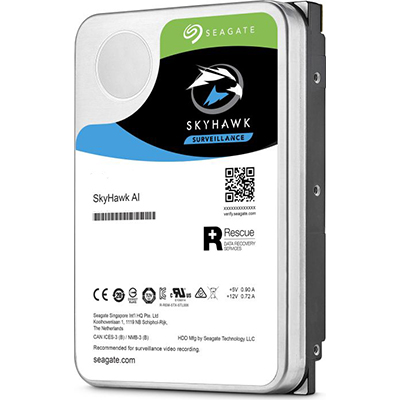

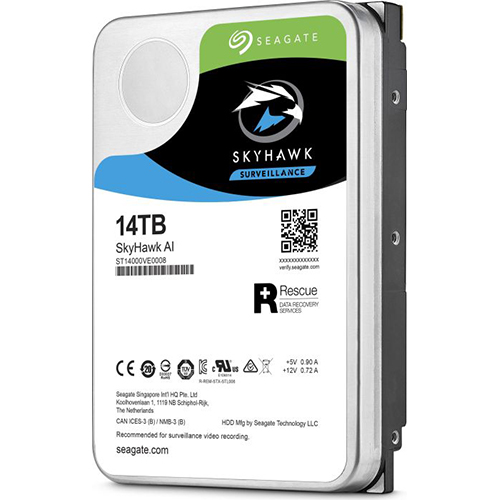

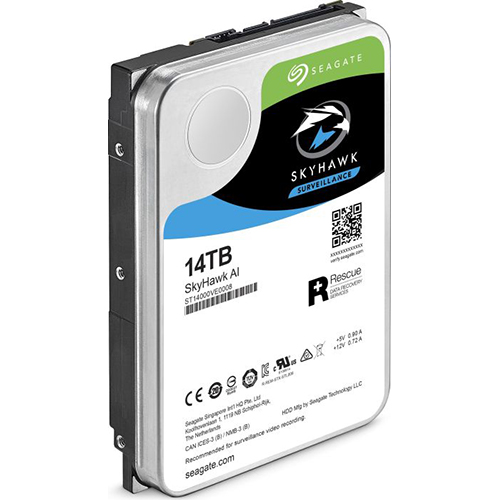

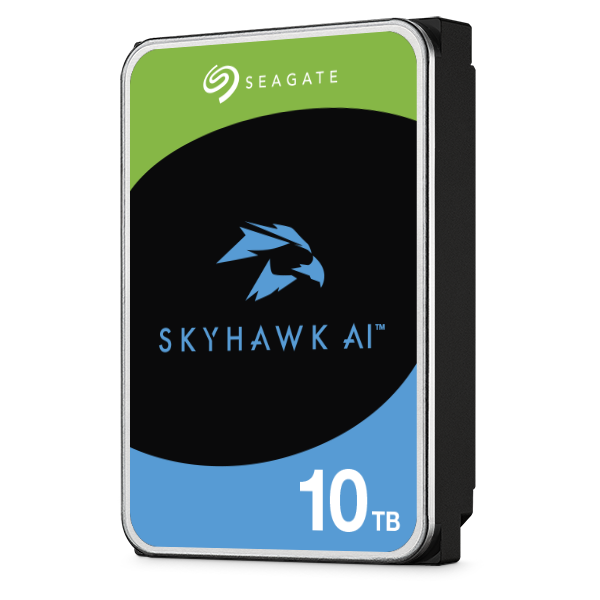

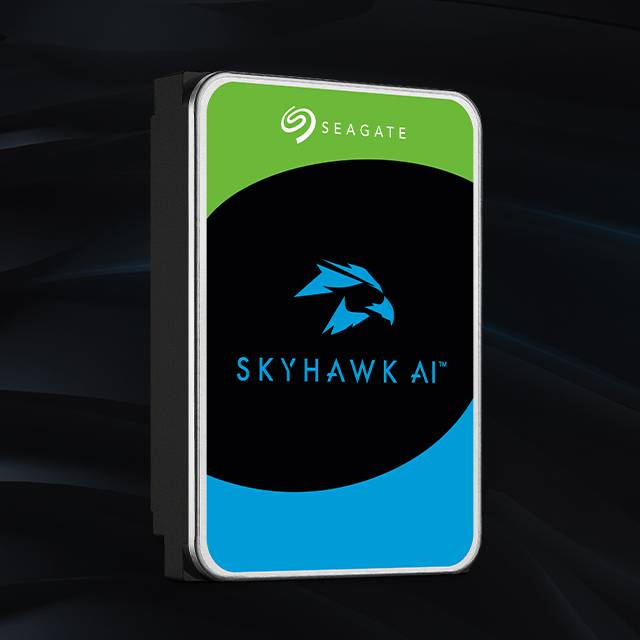

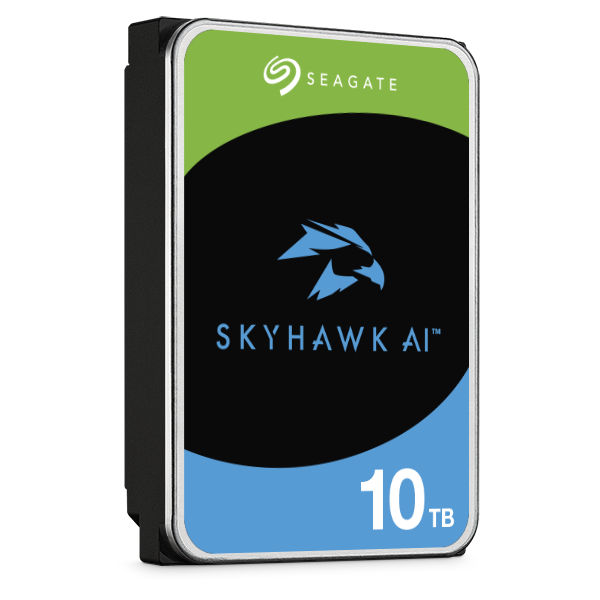

Seagate SkyHawk AI 3.5-Inch Internal Surveillance Hard Drive
Perfect for AI-surveillance NVR

Overview:

Smart. Safe. Secure. Surveillance-Optimized Storage

Seagate SkyHawk™ AI is the world’s first, purpose-built drive for artificial intelligence (AI)-enabled surveillance solutions.

Key Advantages

• ImagePerfect™ AI firmware for superior image integrity alongside additional AI workload support in always-on, AI-enabled surveillance systems.
• Custom designed to support an additional 32 AI streams while simultaneously and flawlessly recording footage up to 64 HD cameras.
• Designed and built to handle heavy surveillance workloads in traditional video recording and advanced video analytics environments. At 550TB/year, SkyHawk AI is designed for 3× the workload of standard surveillance drives.

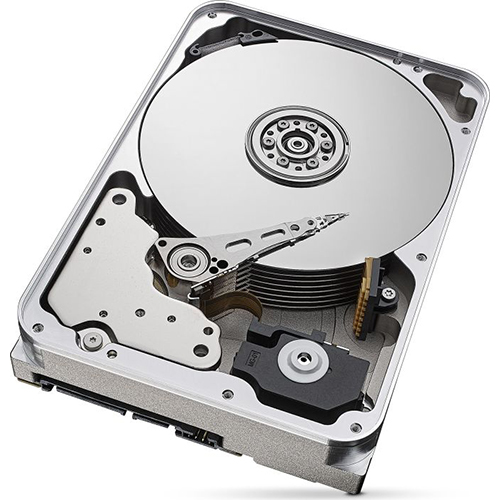

• Advanced vibration management for superior and sustained performance in 16+ bay NVR systems.
• SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options. Included is RAID RapidRebuild™, which provides 3× faster volume rebuilds.
• Improved reliability and reduced total cost of ownership with 1.5M-hr. MTBF and 3- year limited warranty.
• Unparalleled data protection with an optional 2-year Rescue Data Recovery Services plan, providing access to Seagate's secure labs with industry-leading data recovery success rates.

Best-Fit Applications

• Network video recorders (NVR)
• AI-enabled NVR systems

Features:

SkyHawk Health Management:

Actively protect your surveillance footage.

Seagate SkyHawk™ Health Management (SHM) is designed for Hikvision systems with NVR 4.0 OS, and goes beyond industry standard S.M.A.R.T. testing to provide in-depth analysis with prevention and intervention in mind. SHM analytic algorithms analyze various drive parameters and provide users with firsthand drive health information. SHM software works with Skyhawk and SkyHawk AI 4TB and above.

• Prevention
  Software monitors environmental and usage conditions, and recommends preventative actions if necessary.
• Intervention
  Adaptive algorithms analyze hundreds of critical drive health parameters related to overall performance and reliability.
• Recovery
  Access to optional Seagate Rescue Data Recovery Services ensures a secure environment in the event of failure.

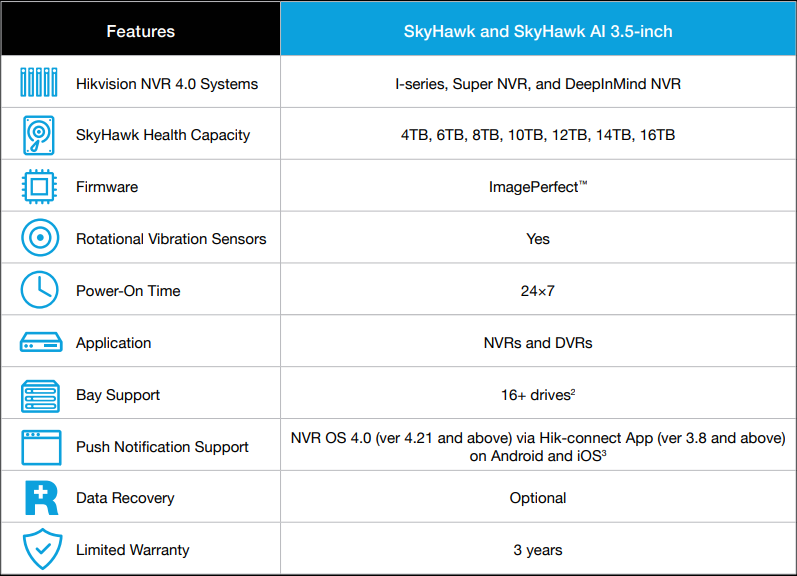

The Combined Advantage of Seagate and Hikvision is Protection

Delivering Best-in-class NVR-optimized hard drives built for surveillance

² Based on drive specs.
³ Overseas markets only.

Specifications:

Specifications	16TB	14TB	12TB	10TB	8TB
Standard Model Number	ST16000NE000	ST14000NE0008	ST12000NE0008	ST10000VE0008 ST10000VE0004	ST8000VE000 ST8000VE0004
Interface	SATA 6Gb/s	SATA 6Gb/s	SATA 6Gb/s	SATA 6Gb/s	SATA 6Gb/s
Features and Performance
Drive Bays Supported	16+	16+	16+	16+	16+
AI Streams1	32	32	32	32	32
HD Cameras Supported	Up to 64	Up to 64	Up to 64	Up to 64	Up to 64
RV Sensors	Yes	Yes	Yes	Yes	Yes
Max. Sustained Transfer Rate OD (MB/s)	250MB/s	250MB/s	250MB/s	250MB/s (ST10000VE0008) 235MB/s (ST10000VE0004)	235MB/s
Cache (MB)	256	256	256	256	256
Reliability/Data Integrity
Tarnish Resistant	Yes	Yes	Yes	Yes	Yes
Load/Unload Cycles	300,000	300,000	300,000	300,000	300,000
Nonrecoverable Read Errors per Bits Read, Max	1 per 10E15	1 per 10E15	1 per 10E15	1 per 10E15	1 per 10E15
Power-On Hours per Year (24×7)	8760	8760	8760	8760	8760
Workload Rate Limit (WRL)2	550	550	550	550	550
MTBF	1,500,000hr	1,500,000hr	1,500,000hr	1,500,000hr	1,500,000hr
Limited Warranty (years)3	3	3	3	3	3
Power Management
Startup Current, Typical (12V, A)	1.8	1.8	1.8	1.8	1.8
Average Operating Power (W)	6.71W	6.9W	6.9W	6.9W (ST10000VE0008) 7.2W (ST10000VE0004)	8.73W (ST8000VE000) 7.2W (ST8000VE0004)
Idle Average (W)	5.1W	4.9W	4.9W	4.9W	7.5W (ST8000VE000) 4.9W (ST8000VE0004)
Standby Mode/Sleep Mode, Typical (W)	1.05/1.05	1.2/1.2	1.2/1.2	1.2/1.2 (ST10000VE0008) 0.8/0.8 (ST10000VE0004)	0.96/0.96 (ST8000VE000) 0.8/0.8 (ST8000VE0004)
Voltage Tolerance (5V)	±5%	±5%	±5%	±5%	+10%/-5% (ST8000VE000) ±5% (ST8000VE0004)
Voltage Tolerance (12V)	±10%	±10%	±10%	±10%	±10%
Environmental/Temperature
Operating (ambient, min °C)	5°C	5°C	5°C	5°C	5°C
Operating (drive case, max °C)4	70°C	70°C	70°C	70°C	70°C
Nonoperating (ambient, min °C)	-40°C	-40°C	-40°C	-40°C	-40°C
Nonoperating (ambient, max °C)	70°C	70°C	70°C	70°C	70°C
Physical
Height (mm/in)	26.11mm/1.028in	26.11mm/1.028in	26.11mm/1.028in	26.11mm/1.028in	26.11mm/1.028in
Width (mm/in, max)	101.85mm/4.01in	101.85mm/4.01in	101.85mm/4.01in	101.85mm/4.01in	101.85mm/4.01in
Depth (mm/in, max)	146.99mm/5.787in	146.99mm/5.787in	146.99mm/5.787in	146.99mm/5.787in	146.99mm/5.787in
Weight (g/lb)	670g/1.477lb	690g/1.521lb	690g/1.521lb	690g/1.521lb (ST10000VE0008) 650g/1.433lb (ST10000VE0004)	716g/1.579lb (ST8000VE000) 650g/1.433lb (ST8000VE0004)
Carton Unit Quantity	20	20	20	20	20
Cartons per Pallet/Cartons per Layer	40 / 8	40 / 8	40 / 8	40 / 8	40 / 8

¹ 32 AI streams = 16 AI channels.
² SkyHawk AI surveillance drives are designed for always-on workloads of 550TB/year. For higher transaction workloads, see Seagate’s enterprise-class drive offerings.
³ Extended warranty options available. Consult your distributor for details.
⁴ Seagate does not recommend operating at sustained extreme temperatures. Operating at higher temperatures will reduce useful life of the product.

Views:

Documentation:

Download the Seagate SkyHawk AI 3.5-Inch Surveillance HDD Datasheet (.PDF)
