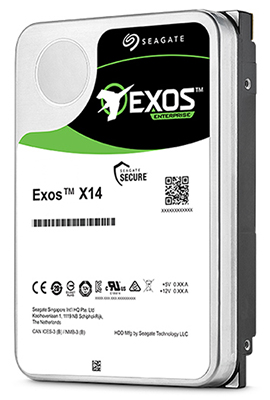

Seagate Exos X14 3.5-Inch Internal 512e/4Kn SATA Enterprise Hard Drive
Perfect for storage-intensive workloads, OLTP, Hadoop, Ceph and HPC applications

Overview:

Scalable. Responsive. Innovative.

For everything hyperscale, there’s ExosTM X— the most powerful way to access the datasphere and harness the full potential of the cloud. Exos X16, Exos X14, Exos X12, and Exos X10 enterprise hard drives integrate the latest technology in support of a scalable, secure, and reliable cloud data center.* Specifically designed to work in highly scalable environments requiring low power consumption and weight, the Exos X series hard drives perform consistently while scaling to meet the stringent TCO requirements of most cloud-based data centers.

Exos X14 Series

Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate X class, the Exos™ X14 and Exos X14z enterprise hard drives are the highest-capacity hard drives in the fleet.

Best-Fit Applications

• Hyperscale applications/cloud data centers
• Massive scale-out data centers
• Big Data applications
• High-capacity density RAID storage
• Mainstream enterprise external storage arrays
• Distributed file systems, including Hadoop and Ceph
• Enterprise backup and restore—D2D, virtual tape
• Centralized surveillance

* Formerly Enterprise Capacity 3.5 HDD (Helium)

Features:

Maximum Storage Capacity for Highest Rack Space Efficiency

• 14TB per drive¹ for 40% more petabytes per rack
• Industry's lowest power and weight for optimum data center TCO
• Highest 14TB hard drive performance with enhanced caching, making it perfect for big data applications
• Hyperscale SATA model tuned for large data transfers
• PowerBalance™ feature optimizes IOPS/Watt
• Helium sealed-drive design with no porosity and uniform density
• Superior material and weld-width design for a more robust, hermetically sealed-drive enclosure that protects from helium leaks
• Digital environmental sensors for measuring internal pressure, helping to ensure high reliability, performance, and quality
• Latest hermetic interconnect technology supporting higher data rate heads and higher pin counts for extreme thermal conditions
• Proven enterprise-class reliability backed by 2.5M-hr MTBF rating

	Best-Fit Applications Hyperscale applications/cloud data centers Massive scale-out data centers OLTP and HPC applications High-capacity density RAID storage Mainstream enterprise external storage arrays Distributed file systems, including Hadoop and Ceph Enterprise backup and restore—D2D, virtual tape centralized surveillance
	Built-in Data Protection Seagate Secure Instant Secure Erase drives simplify drive repurposing and disposal, protect data-at-rest and help comply with corporate and federal data security mandates. Prevent unauthorized access and safeguard stored data with three levels of security, including Secure Downloads & Diagnostics (SD&D), TCG-compliant Self-Encrypting Drive and government-grade FIPS/Common Criteria tamper-resistant hard drive.2
	Data Management Made Easy Simplify infrastructure management with the FastFormat feature for advanced format (4Kn and 512e) Unprecedented power savings during idle times with PowerChoice technology for TCO improvement Use Instant Secure Erase for easy drive disposal and repurposing if and when needed

¹ Compared to 10TB competitive product.
² Seagate Secure Self-Encrypting Drives (SED) are not available in all models or countries. May require TCG-compliant host or controller support.

Specifications:

Specifications - 512 Emulation/4K Native	SATA 6Gb/s
Capacity	12 TB
Standard Model FastFormat™ (512e/4Kn)1	ST12000NM0008
SED Model FastFormat (512e/4Kn)1,2	ST12000NM0248
SED-FIPS FastFormat (512e/4Kn)1,2	—
Features
Helium Sealed-Drive Design	Yes
Protection Information (T10 DIF)	—
SuperParity	Yes
Low Halogen	Yes
PowerChoice™ Idle Power Technology	Yes
PowerBalance™ Power/Performance Technology	Yes
Hot-Plug Support3	Yes
Cache, Multisegmented (MB)	256
Organic Solderability Preservative	Yes
RSA 2048 Firmware Verification (SD&D)	Yes
Reliability / Data Integrity
Mean Time Between Failures (MTBF, hours)	2,500,000hr
Reliability Rating @ Full 24×7 Operation (AFR)	0.35%
Nonrecoverable Read Errors per Bits Read, Max	1 sector per 10E15
Power-On Hours per Year (24×7)	8760
512e Sector Size (Bytes per Sector)	512
4Kn Sector Size (Bytes per Sector)	4096
Limited Warranty (years)	5
Performance
Spindle Speed (RPM)	7200RPM
Interface Access Speed (Gb/s)	6.0, 3.0
Max. Sustained Transfer Rate OD (MB/s,MiB/s)	245,233
Random Read/Write 4K QD16 WCD (IOPS)	170/418
Average Latency (ms)	4.16
Interface Ports	Single
Rotation Vibration @ 20-1500 Hz (rad/sec²)	12.5
Power Consumption
Idle Average (W)	5.0W
Max Operating, Random Read/Write 4K/16Q (W)	10.0, 6.0
Power Supply Requirements	+12 V and +5 V
Environmental/Temperature
Temperature, Operating (°C)	5°C – 60°C
Vibration, Nonoperating: 2 to 500Hz (Grms)	2.27
Shock, Operating 2ms (Read/Write) (Gs)	70/40Gs
Shock, Nonoperating, 2ms (Gs)	250
Physical
Height (mm/in, max)4	26.11mm/1.028in
Width (mm/in, max)4	101.85mm/4.010in
Depth (mm/in, max)4	147.0mm/5.787in
Weight (g/lb)	690g/1.521lb
Carton Unit Quantity	20
Cartons per Pallet/Cartons per Layer	40 / 8

¹ FastFormat models ship in 512e format state. When switching from 512e to 4Kn by executing the FastFormat routine, all data on the drive will be deleted. Note that data must be aligned to 4K sectors to see improved performance in 4Kn fomat.
² Self-Encrypting Drives (SED) and FIPS 140-2 Validated drives available through franchised authorized distributors. May require TCG-compliant host or controller support.
³ Supports Hotplug operation per Serial ATA Revision 3.3 specification
⁴ These base deck dimensions conform to the Small Form Factor Standard (SFF-8301) found at www.sffcommittee.org. For connector-related dimensions, see SFF-8323.

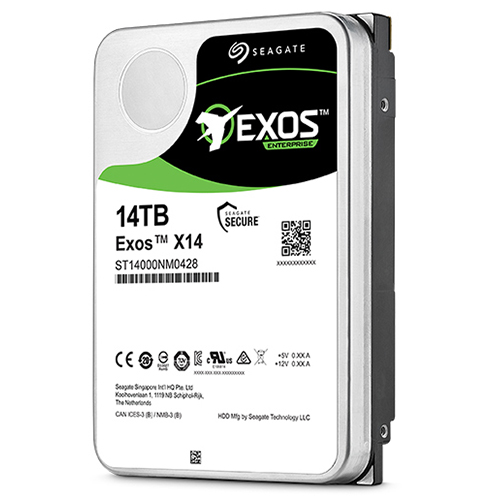

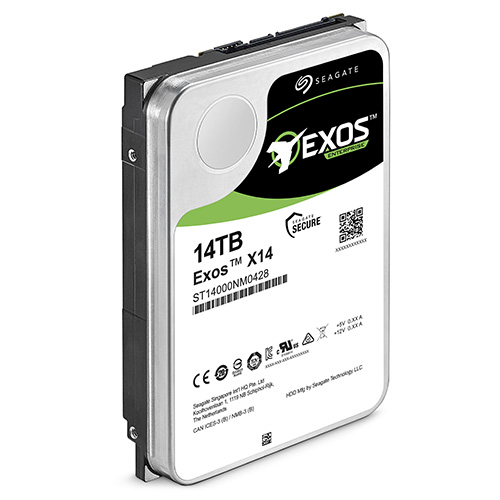

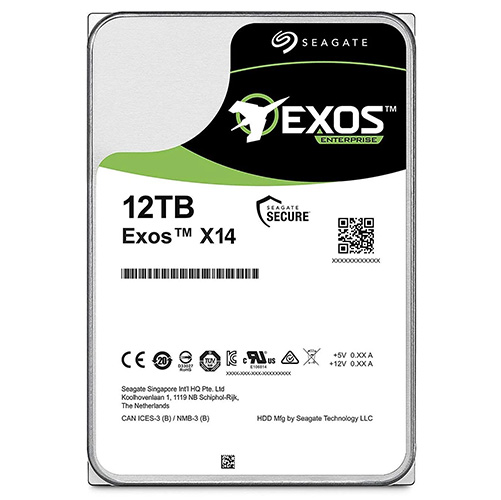

Views:
