Seagate Nytro — Enterprise SSDs
Seagate Nytro enterprise SSDs
Authorized Reseller · Best Pricing · Expert Guidance
Consistent high performance for the modern data center. Engineered for efficiency, high performance and increased storage density.

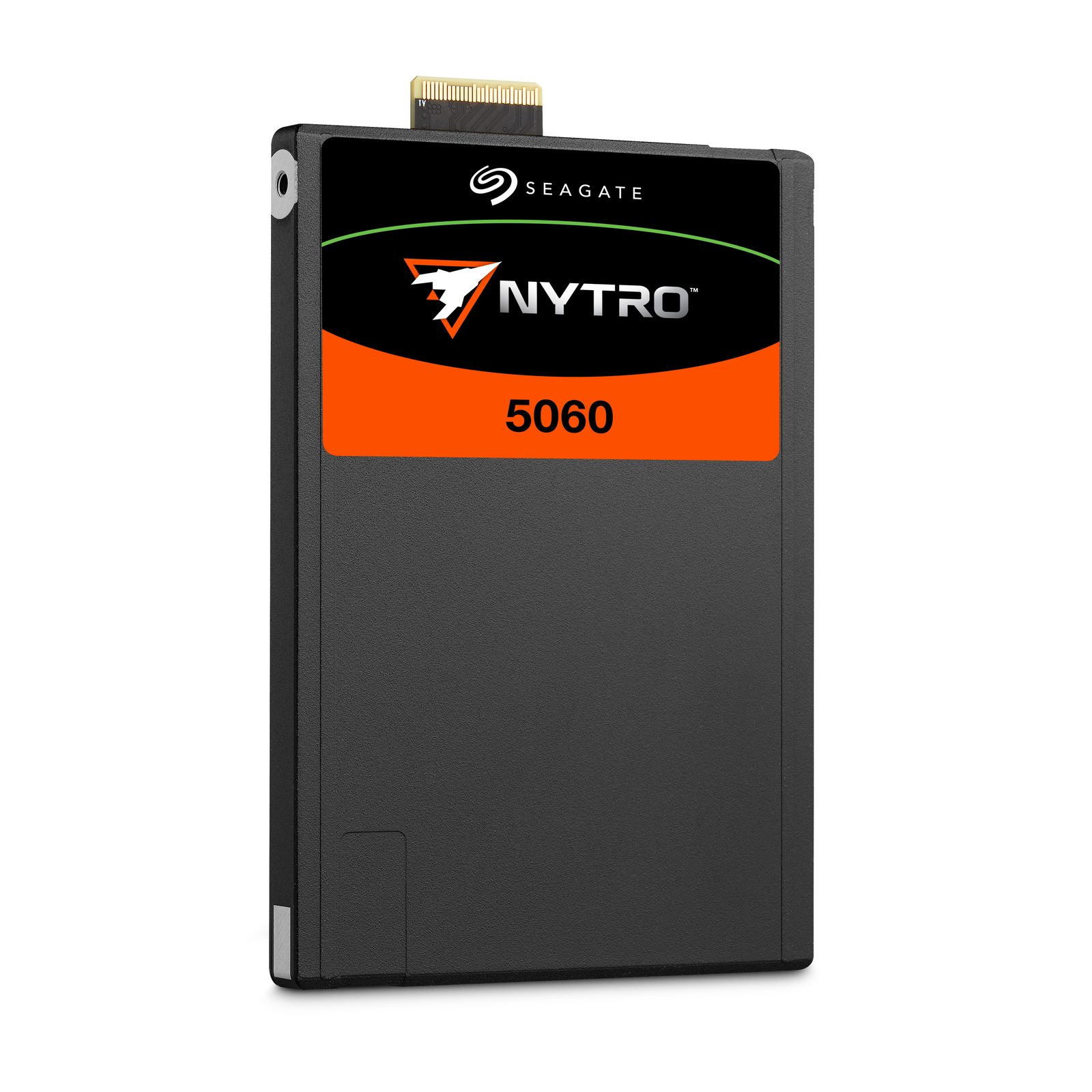

Nytro 5060 in a 2.5-inch form factor; 15.36TB in E3.S
PCIe Gen5 NVMe doubles the throughput of the previous generation
Removes data bottlenecks and provides consistent response times
1 and 3 DWPD endurance options with a 5-year limited warranty

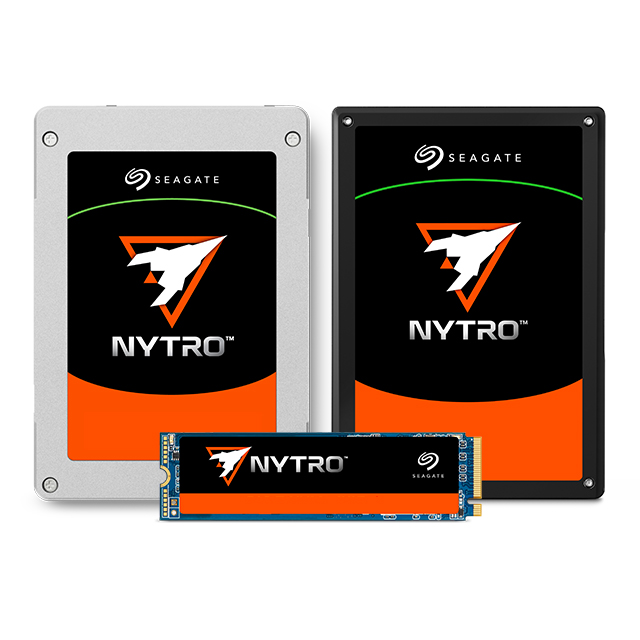

What are Seagate Nytro enterprise SSDs?
Nytro is Seagate’s enterprise solid state drive family. The drives are engineered for efficiency, high performance and increased storage density in data centers — eliminating performance bottlenecks and significantly improving quality of service (QoS).
The family spans three series. Nytro 1000 SATA SSDs deliver cost-effective, plug-and-play flash for read-intensive workloads and legacy environments. Nytro 4000 brings PCIe Gen4 NVMe performance to a compact M.2 2280 form factor. Nytro 5000 is the high-performance line, reaching PCIe Gen5 speeds and 30.72TB capacities.
Across the family you get power-loss data protection, enterprise endurance ratings from 1 to 3 DWPD, MTBF ratings up to 2.5M hours, optional self-encrypting (SED) models supporting the TCG standard, and a 5-year limited warranty.
Every Nytro drive is operating system friendly, integrating easily with Linux and Microsoft, and the NVMe models offer effortless serviceability with no downtime requirements and hot-swap capability for easy SSD addition, removal or replacement.
How do the Nytro 1000, 4000 and 5000 series differ?
Pick the series by interface and workload; pick the model by capacity and endurance.

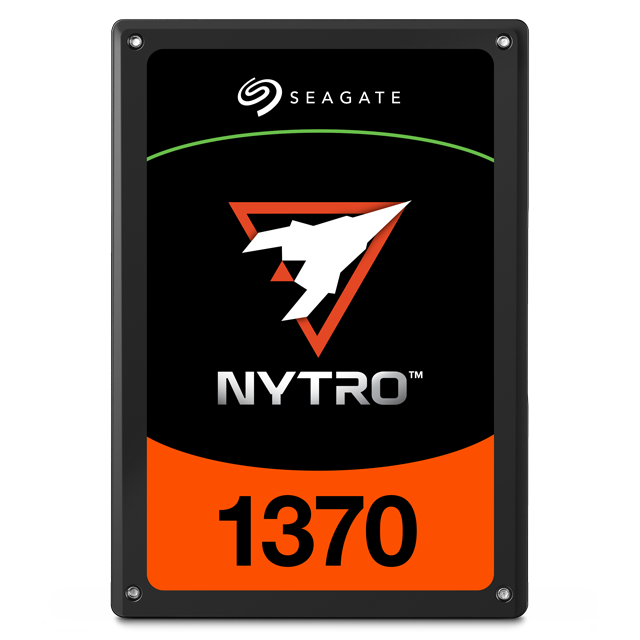

Nytro 1000 — SATA
Cost-effective SATA 6Gb/s SSD storage for data centers. Plug-and-play for legacy environments, enterprise-grade endurance for read-intensive workloads, with power-loss data protection and low cost per GB. Nytro 1361 and Nytro 1370.

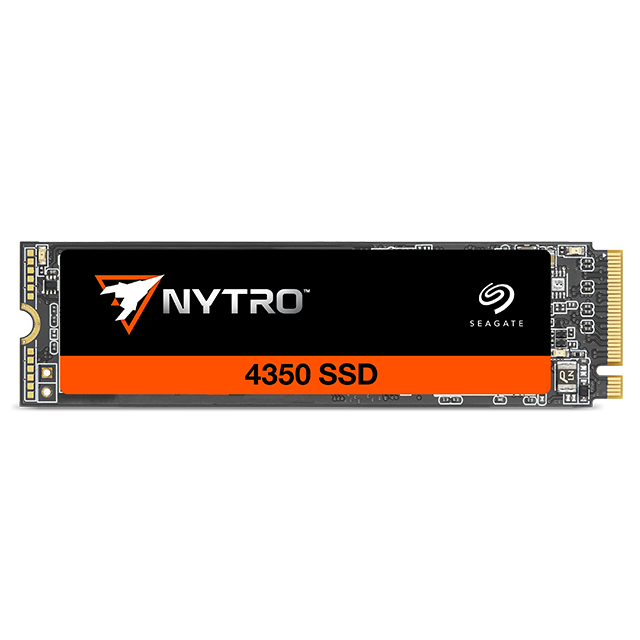

Nytro 4000 — M.2 NVMe
PCIe Gen4 NVMe in an M.2 2280 form factor, providing 10× the bandwidth of SATA SSDs with low latency and power consumption plus high QoS. Nytro 4350.

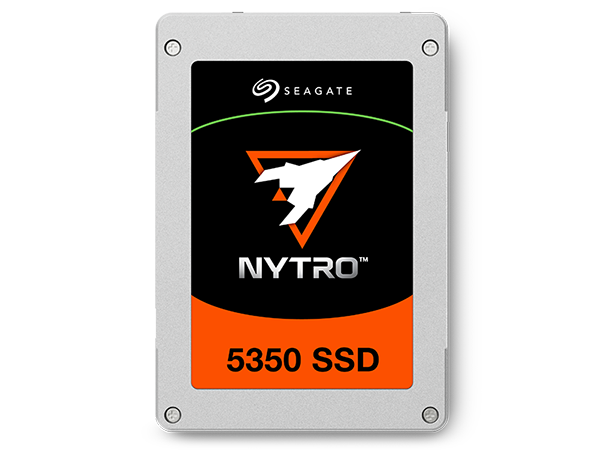

Nytro 5000 — NVMe
The high-performance line. Nytro 5350 and 5550 deliver 7.4GB/s and up to 1.7M IOPS on PCIe Gen4; Nytro 5060 doubles that again on PCIe Gen5 with 14.9GB/s and up to 3.3M IOPS.
The Nytro line-up, 480GB to 30.72TB
Six drives we supply as an authorized Seagate reseller — from a 480GB SATA boot drive to a 30.72TB PCIe Gen5 NVMe.
14.9GB/s and up to 3.3M IOPS, up to 30.72TB in 2.5-inch or 15.36TB in E3.S.
Learn more
Mixed-use endurance at 3 DWPD, 7.4GB/s sequential read and up to 12.8TB.
Learn more
Read-intensive workloads at 1 DWPD, up to 15TB with single or dual port.
Learn more
Cost-effective SATA capacity up to 15TB for read-intensive data center workloads.
Learn more
112-layer BiCS5 NAND at 1 DWPD, 480GB to 3.84TB with optional TCG Opal SED.
Learn moreHow do the six Nytro SSDs compare on interface, capacity and DWPD?
Six drives across three series — laid out side by side so you can spot the right interface, capacity and endurance for your workload.
| Nytro 1361 | Nytro 1370 | Nytro 4350 | Nytro 5350 | Nytro 5550 | Nytro 5060 | |
|---|---|---|---|---|---|---|
| Interface | SATA 6Gb/s | SATA 6Gb/s | PCIe Gen4 ×4 NVMe | PCIe Gen4 ×4 NVMe | PCIe Gen4 ×4 NVMe | PCIe Gen5 NVMe |
| Maximum capacity | 3.84TB | 15TB | 1.92TB | 15TB | 12.8TB | 30.72TB (2.5-in) · 15.36TB (E3.S) |
| Form factor | 2.5-in × 7mm | 2.5-in | M.2 2280 | 2.5-in × 15mm | 2.5-in × 15mm | 2.5-in · E3.S |
| Workload profile | Read-intensive | Read-intensive | Mixed use | Read-intensive | Mixed use | Read-intensive (5360) · Mixed (5550) |
| Endurance (DWPD) | 1 DWPD | Enterprise-grade | 1 DWPD | 1 DWPD | 3 DWPD | 1 and 3 DWPD |
| Sequential read | 530MB/s | SATA line rate | PCIe Gen4 bandwidth | 7400MB/s | 7400MB/s | 14.9GB/s |
| Random read IOPS | 94,000 | — | — | up to 1.7M | up to 1.7M | up to 3.3M |
| MTBF | 2M hours | — | 2M hours | 2.5M hours | 2.5M hours | 2.5M hours |
| NAND flash type | 3D TLC (112-layer BiCS5) | 3D NAND | 3D TLC | 3D eTLC | 3D eTLC | 3D NAND |
| Power-loss data protection | Yes | Yes | Yes | Yes | Yes | Yes |
| Self-encrypting (SED) | Optional (TCG Opal) | — | — | Optional (TCG) | Optional (TCG) | Optional (TCG) |
| Limited warranty | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years |
Workloads for Nytro enterprise SSDs
Where our solution architects place enterprise flash in a Seagate storage architecture.
Nytro SSD datasheets
Seagate datasheets for every Nytro drive, hosted on our CDN.
Seagate Nytro enterprise SSDs: frequently asked questions
Interface, endurance, capacity and procurement answers for the Nytro enterprise SSD family.
Nytro is Seagate’s enterprise solid state drive family, engineered for efficiency, high performance and increased storage density in data centers. Nytro SSDs eliminate performance bottlenecks and significantly improve quality of service (QoS). The family spans SATA (Nytro 1000), M.2 NVMe (Nytro 4000) and high-performance NVMe (Nytro 5000) series.
The Nytro 5060. Its PCIe Gen5 NVMe interface doubles the throughput and IOPS of the previous generation, delivering blistering 14.9GB/s bandwidth and up to 3.3M IOPS — removing data bottlenecks and providing consistent response times for high-performance applications.
DWPD is drive writes per day — how much data you can write to the whole drive daily across its warranty life. Choose a 1 DWPD drive (Nytro 1361, 4350, 5350) for read-intensive workloads, and a 3 DWPD drive (Nytro 5550) for mixed workloads with heavier writes. The Nytro 5060 is available in both 1 and 3 DWPD variants.
The Nytro 4350 PCIe Gen4 NVMe SSD provides 10× the bandwidth of SATA SSDs. The Nytro 5000 series delivers quintupled performance over SATA SSDs with 10× more bandwidth and IOPS over previous generations, getting more computing using minimal space, energy and cost.
The Nytro 5060 reaches up to 30.72TB in a 2.5-inch form factor and up to 15.36TB in an E3.S form factor. On PCIe Gen4, the Nytro 5350 reaches 15TB and the Nytro 5550 reaches 12.8TB; on SATA, the Nytro 1370 reaches 15TB.
Yes. Power-loss data protection is included across the family, using capacitors to provide enough power to complete pending write operations and safely store data in non-volatile memory, preserving data integrity in power-loss scenarios.
Yes. Hardware-based encryption Self-Encrypting Drive (SED) models support the TCG standard to help keep valuable data secure; the Nytro 1361 offers TCG Opal SED models. Self-Encrypting Drives are not available in all models or countries and may require TCG-compliant host or controller support.
Yes, on the NVMe models. The Nytro 5060 offers dual-port models (5060H) designed for high availability or single-port models (5060S), and the Nytro 5350 has the choice between dual or single interface. Dual ports support active-active high availability.
Nytro SSDs are operating system friendly, easily integrating with Linux and Microsoft® Windows®. The Nytro 5060 also carries OCP NVMe SSD 2.0 support for efficient and scalable deployment in data centers.
