Seagate Nytro SAS SSD Series

Built For Fast Data Center Applications

Designed for Data Center and Cloud Server Applications

Tailor With High Capacity, Performance, and Endurance

The Nytro SAS SSD series of high-capacity, high-performance SAS SSDs offers a large set of configurations designed for optimal match to application and maximum TCO savings. Built with the Seagate security model that provides the ultimate data-at-rest protection for demanding enterprise applications.

Dual-port 12Gb/s SAS interface for the highest level of enterprise reliability, availability, and scalability
Industry-leading storage density range up to 15TB in a 2.5-inch form factor
Ultra-fast performance of up to 240K IOPS and 2.1GB/s that saturates both 12Gb/s links
Endurance options to match a wide range of enterprise workloads
Enhanced enterprise reliability, data protection, and data security

Nytro 3031 SSD Series

Industry-leading security features with a range of capacity and endurance offerings optimized for demanding enterprise applications and improved TCO.

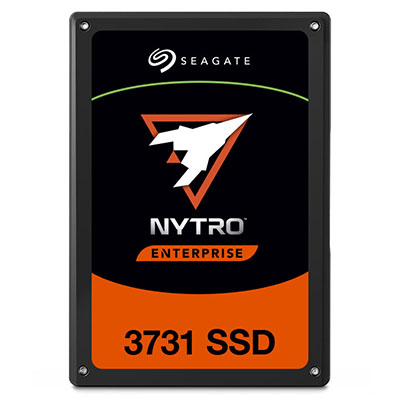

Nytro 3731 SSD

2.5 in X 15mm Form Factor

Interface- 12Gb/s SAS Dual-port
Capacity- 3.2TB, 1.6TB, 800GB, 400GB
Endurance- 10 DWPD
Sequential Read- up to 2200 MB/s
Sequential Write- up to 1550 MB/s
Random Read- up to 230K IOPS
Random Write- up to 180K IOPS
Warranty- 5 years
Ideal for- Server virtualization, OLTP databases, caching, tiering

Nytro 3531 SSD

2.5 in X 15mm Form Factor

Interface- 12Gb/s SAS Dual-port
Capacity- 6.4TB, 3.2TB, 1.6TB, 800GB
Endurance- 3 DWPD
Sequential Read- up to 2200 MB/s
Sequential Write- up to 1550 MB/s
Random Read- up to 230K IOPS
Random Write- up to 120K IOPS
Warranty- 5 years
Ideal for- Server virtualization, OLTP databases, caching, tiering

Nytro 3331 SSD

2.5 in X 15mm Form Factor

Interface- 12Gb/s SAS Dual-port
Capacity- 7.6TB, 3.8TB, 1.9TB, 960GB
Endurance- 1 DWPD
Sequential Read- up to 2200 MB/s
Sequential Write- up to 1550 MB/s
Random Read- up to 230K IOPS
Random Write- up to 80K IOPS
Warranty- 5 years
Ideal for- Software-defined storage, tiering, all-flash arrays

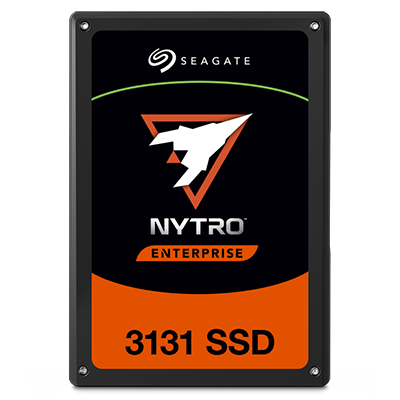

Nytro 3131 SSD

2.5 in X 15mm Form Factor

Interface- 12Gb/s SAS Dual-port
Capacity- 15.3TB, 7.6TB, 3.8TB
Endurance- up to 0.8 DWPD
Sequential Read- up to 2100 MB/s
Sequential Write- up to 1550 MB/s
Random Read- up to 230K IOPS
Random Write- up to 50K IOPS
Warranty- 5 years
Ideal for- Software-defined storage, tiering, all-flash arrays

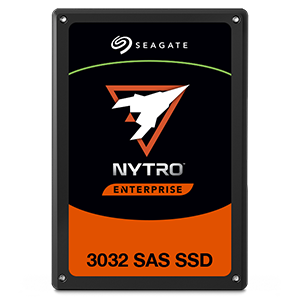

Nytro 3032 SSD Series

High capacity SSD with drive monitoring, government-grade encryption, and scalable, secure performance for demanding enterprise workloads.

Nytro 3732 SSD

2.5 in X 15mm Form Factor

Interface- 12Gb/s SAS Dual-port
Capacity- 3.2TB, 1.6TB, 800GB, 400GB
Endurance- 10 DWPD
Sequential Read- up to 2200 MB/s
Sequential Write- up to 1650 MB/s
Random Read- up to 240K IOPS
Random Write- up to 200K IOPS
Warranty- 5 years
Ideal for- Server virtualization, OLTP databases, Software-defined storage, caching, tiering

Nytro 3532 SSD

2.5 in X 15mm Form Factor

Interface- 12Gb/s SAS Dual-port
Capacity- 6.4TB, 3.2TB, 1.6TB, 800GB
Endurance- 3 DWPD
Sequential Read- up to 2200 MB/s
Sequential Write- up to 1650 MB/s
Random Read- up to 240K IOPS
Random Write- up to 130K IOPS
Warranty- 5 years
Ideal for- Software-defined storage, tiering, all-flash arrays

Nytro 3332 SSD

2.5 in X 15mm Form Factor

Interface- 12Gb/s SAS Dual-port
Capacity- 15.36TB, 7.68TB, 3.84TB, 1.92TB, 960GB
Endurance- 1 DWPD
Sequential Read- up to 2100 MB/s
Sequential Write- up to 1650 MB/s
Random Read- up to 240K IOPS
Random Write- up to 85K IOPS
Warranty- 5 years
Ideal for- Server virtualization, OLTP databases, Software-defined storage, caching, tiering

Nytro 3032 SSD Series

Low latency SSD with enterprise reliability, ideal for single port, high capacity storage systems compatible with Serial ATA.

Nytro 2532 SSD

2.5 in X 15mm Form Factor

Interface- 12Gb/s SAS Single-port
Capacity- 3.84TB, 1.92TB, 960GB
Endurance- 3 DWPD
Sequential Read- 840 MB/s
Sequential Write- 650 MB/s
Random Read- 175K IOPS
Random Write- 77K IOPS
Warranty- 5 years
Ideal for- Single-port, high-capacity storage systems, SATA-compatible systems

Nytro 2332 SSD

2.5 in X 15mm Form Factor

Interface- 12Gb/s SAS Single-port
Capacity- 7.68TB, 3.84TB, 1.92TB, 960GB
Endurance- 1 DWPD
Sequential Read- up to 840 MB/s
Sequential Write- 650 MB/s
Random Read- up to 180K IOPS
Random Write- up to 53K IOPS
Warranty- 5 years
Ideal for- Single-port, high-capacity storage systems, SATA-compatible systems
