Seagate Nytro E 2U24
Perfect for enterprise, edge, security, video, standard density storage requirements


Seagate Nytro E 2U24

Seagate Products
Seagate Nytro E Series Systems
Seagate Nytro E 2U24 24 High Capacity Drive Bays Storage
Contact us for Pricing!

Click here to jump to more pricing!

Nytro EnterpriseOverview:

The highest performing, most efficient solutions in the datasphere

Seagate Exos Nytro E 2U24 is the datasphere’s high-performance, exceptional-capacity platform utilizing the latest SAS SSDs for maximum data access speed at a minimum TCO. The datasphere’s super high performance platform for maximum IOPS. Achieve higher IOPS and higher density with small form factor drives that provide enviable IOPS per unit of rack storage.

Performance is Paramount

Customize infrastructures or deploy a fully optimized, end-to-end system. These data center solutions provide unprecedented modularity for limitless data growth.

Product Highlights

  • Save space with up to 24 SSDs in a 2U rackmount enclosure
  • Simplify overall product portfolio with this unique storage building block
  • Safeguard data with intelligent fault diagnosis, resolution capabilities, persistent error logging, and monitoring
  • Deliver data fast using Seagate SSDs
  • Ensure data is available with N+1 PCMs, I/O modules, and dual data paths to all drives
  • Maximum of 28.8GB/s in a dual controller configuration

Speed

Speed
Highest performance

Scalability

Scalability
Industry-first economics

Security

Security
Cybersecurity features


Features:

Transfer Data Fast With a 12Gb/s SAS Interface

Get data to applications when and where it’s needed with up to 12Gb/s speed and an unprecedented effective maximum throughput of 14.4GB/s per I/O module or 28.8GB/s in a dual controller configuration, which is enough to support even the highest-performing solid state drives (SSD).

Deliver a Versatile Architecture Built to Grow

This flexible enclosure is built for ultimate solid state performance, and includes support and capabilities to manage cables, universal ports, self-configuration controls, and standardized zoning. As a key building block of our modular systems—which make all critical components interchangeable regardless of size or budget—this enclosure can be populated with our SSDs to provide flash performance at an entry-level price point. Its modularity makes it easy to set up, maintain, and expand via interchangeable FRUs and hotswappable components, including the controller.

Ensure Applications Have Access to Critical Data

Safeguard your data with fault diagnosis, resolution capabilities, persistent error logging, and monitoring while ensuring maximum availability while harnessing high-availability features such as dual PCMs and I/O modules, as well as dual data paths to all drives.

Reduce Cost and Resources With Energy-Efficient Features

This enclosure is suited for high-capacity, transaction-dependent environments that demand tighter Service Level Agreement (SLA) requirements and faster response times for optimal data availability. It meets stringent worldwide requirements for recycling and environmental friendliness, helping to minimize environmental impact. Deliver cost savings through efficient high performance, all while reducing power consumption with 80 PLUS Gold certified adaptive cooling technology.

Build In Security at the Foundation of the Data Life Cycle

Protect the most valuable business assets with guaranteed compatible Seagate Secure™ SSDs.

Specifications:


Nytro E 2U24 Specifications
Controller Dual I/O modules per enclosure
Host/Expansion Interface Three universal ×4 12Gb/s mini-SAS HD connectors (SFF-8644) per I/O module
Management/Status Reporting CLI via RS232 and 100Base-T port SES via SAS SFF-8644 ports
Maximum System Configuration Dual host-connected enclosure with a maximum expanded configuration of 16 enclosures for a total of 384 drives
Device Support Dual-port 12Gb/s and 6Gb/s SAS drives
Max Drives per Enclosure 24 (for a full list of supported drives, please contact your account or sales manager)
Hot-Swappable Components Drives, power cooling modules (PCM), and SBB I/O modules
Physical Height: 88.9mm / 3.5 in (2 EIA units)
Width: 483mm / 19 in (IEC rack compliant)
Depth: 630mm / 24.8 in
Weight: 24kg / 53 lb (with drives)
Power Requirements—AC Input
Input Power Requirements 100V-240V AC 60Hz/50Hz
Environmental Requirements
Operating/Nonoperating Altitude 0m to 3000m (0 ft to 10,000 ft) / –300m to 12,192m (–1000 ft to 40,000 ft)
Temperature Range 5°C to 40°C (35°C max above 2000m)
Humidity 20% to 80% noncondensing
Operating/Nonoperating Shock 5 Gs, 10ms half sine / 30 Gs 10ms half sine
Operating/Nonoperating Vibration 0.3 Gs rms / 1.04 Gs rms
Standards/Approvals
Safety Certifications UL 60950-1 (USA and Canada)
EN 60950-1 (European Union)
IEC 60950-1 (CB certification)
Emissions (EMC) FCC CFR 47 Part 15 Subpart B Class A (United States)
ICES/NMB-003 Class A (Canada)
EN 55032 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3 (Europe)
AS/NZS CISPR 32 Class A (Australia/New Zealand)
VCCI Class A (Japan)
KN 32 Class A/KN 35 (S. Korea)
CNS 13438 Class A (Taiwan)
Standard Marks/Approvals North America (FCC, UL, cUL, ICES/NMB-003 Class A), Europe (CE), China (CCC – PSU only), Taiwan (BSMI), Korea (KC), Japan (VCCI), Australia/New Zealand (RCM – formerly C-tick)

Views:

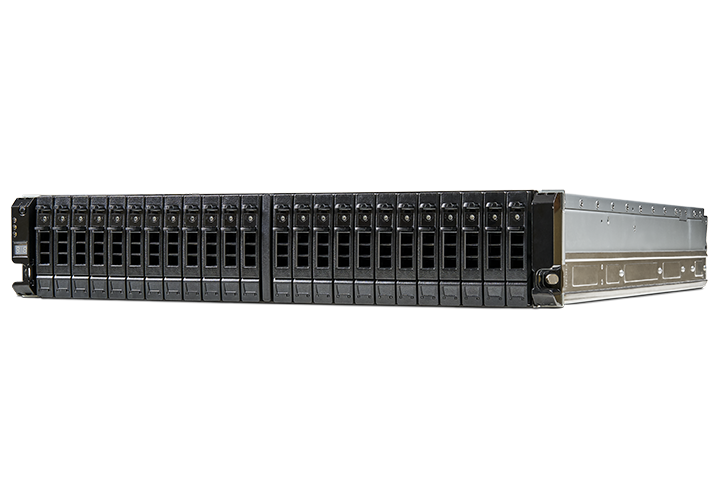

Angle View

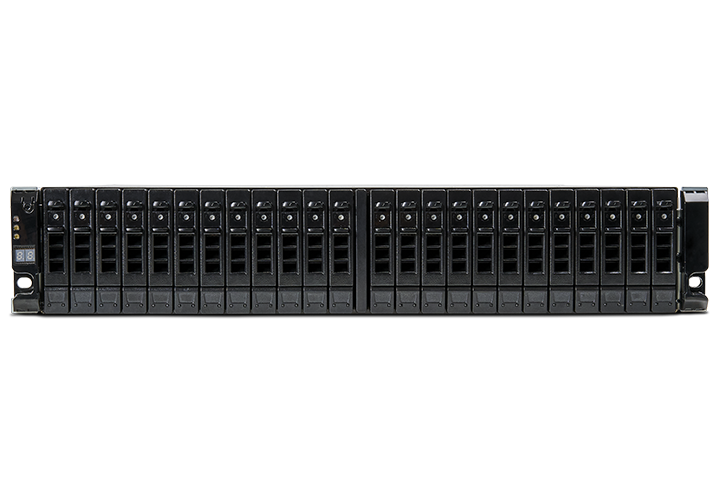

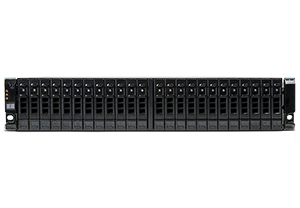

Front View

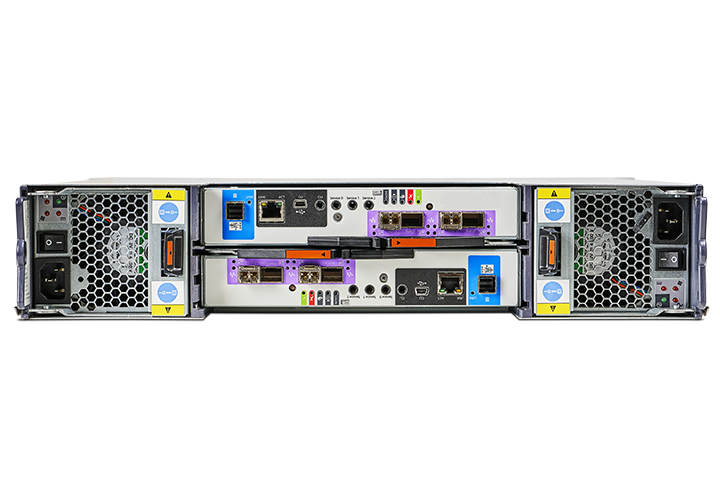

Rear View

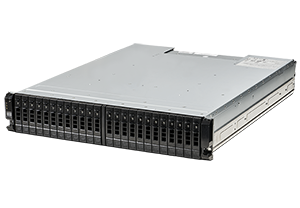

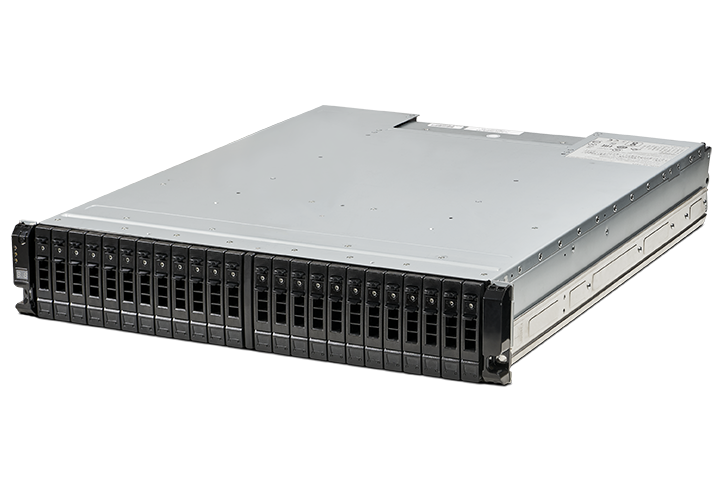

Right Angle View

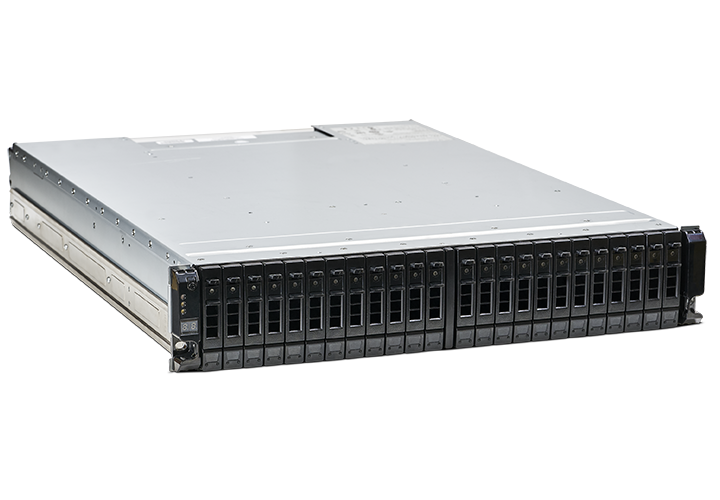

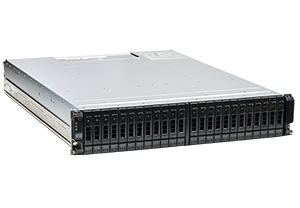

Left Angle View

Documentation:

Download the Seagate Nytro E 2U24 Datasheet (.PDF)
